Elektromobiļa elektriskā motora mācību stends

Produkti » Autoservisa aprīkojums » Darbnīcu mēbeles / Projektēšana / Izglītība / Darba drošība » Mācību stendi un aprīkojums
kods: MSEM01
ražotājs: AutoEdu
Par preces pieejamību jautāt, - gab.


Jautājums par preci

E-pasts *
E-mail
Telefons
Pārbaudes kods * mobile phone
Captcha8+1=
    Preču cena norādīta ar iekļautu PVN 21%

    Description

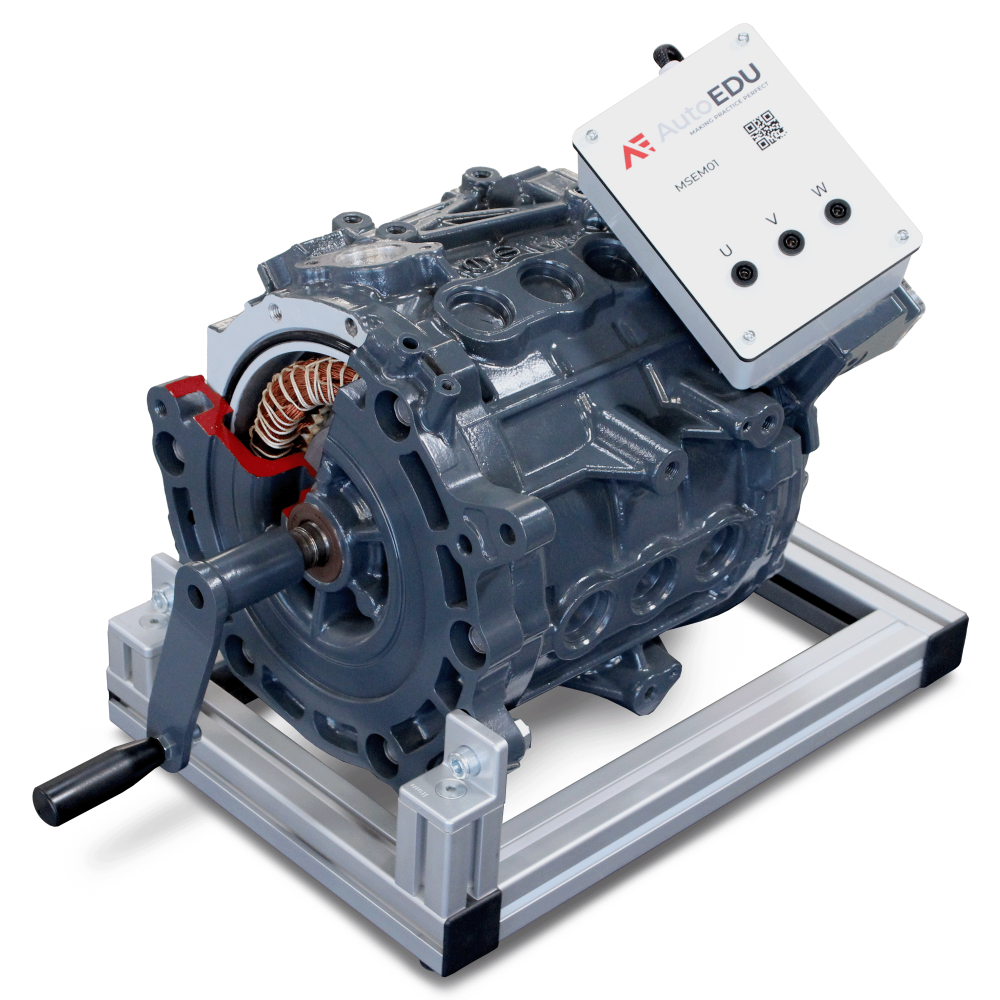

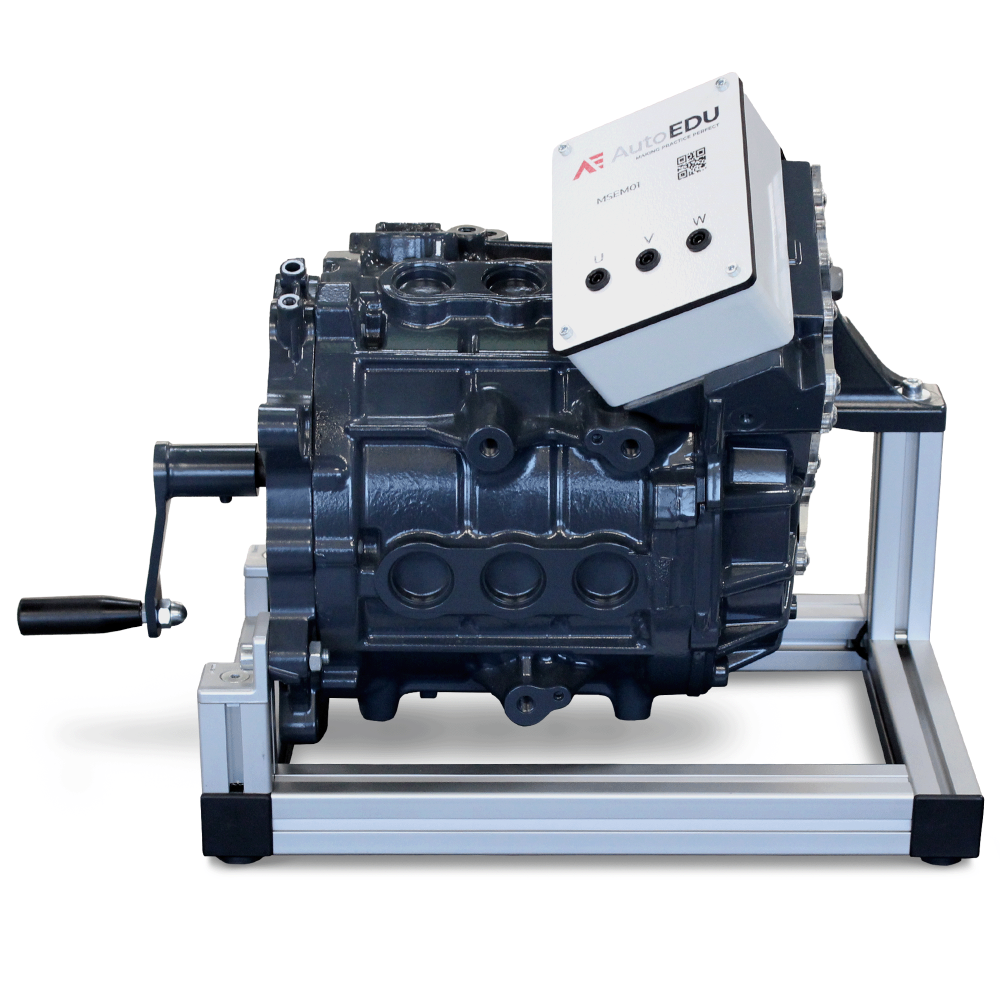

    Manually operated educational trainer designed to demonstrate the principles of three-phase electric power generation. Built using an original electric motor from a Nissan Leaf EV, this unit allows students to simulate real-world electromagnetic induction by manually rotating the rotor. It combines mechanical interaction, waveform analysis, and clear structural visibility for comprehensive electric drive system training.

    Specifications

    • Motor Type: Nissan Leaf EV permanent magnet synchronous motor (PMSM).
    • Simulation Type: Manual rotation with mechanical crank.
    • Voltage Output: Low-voltage three-phase AC (non-powered, safe manual simulation).
    • Terminals: U, V, W – 4mm safety socket type for measurement.
    • Measurement Support: Compatible with oscilloscopes and multimeters.
    • LED Indicator: Color-changing linear strip (visualizes relative power level).

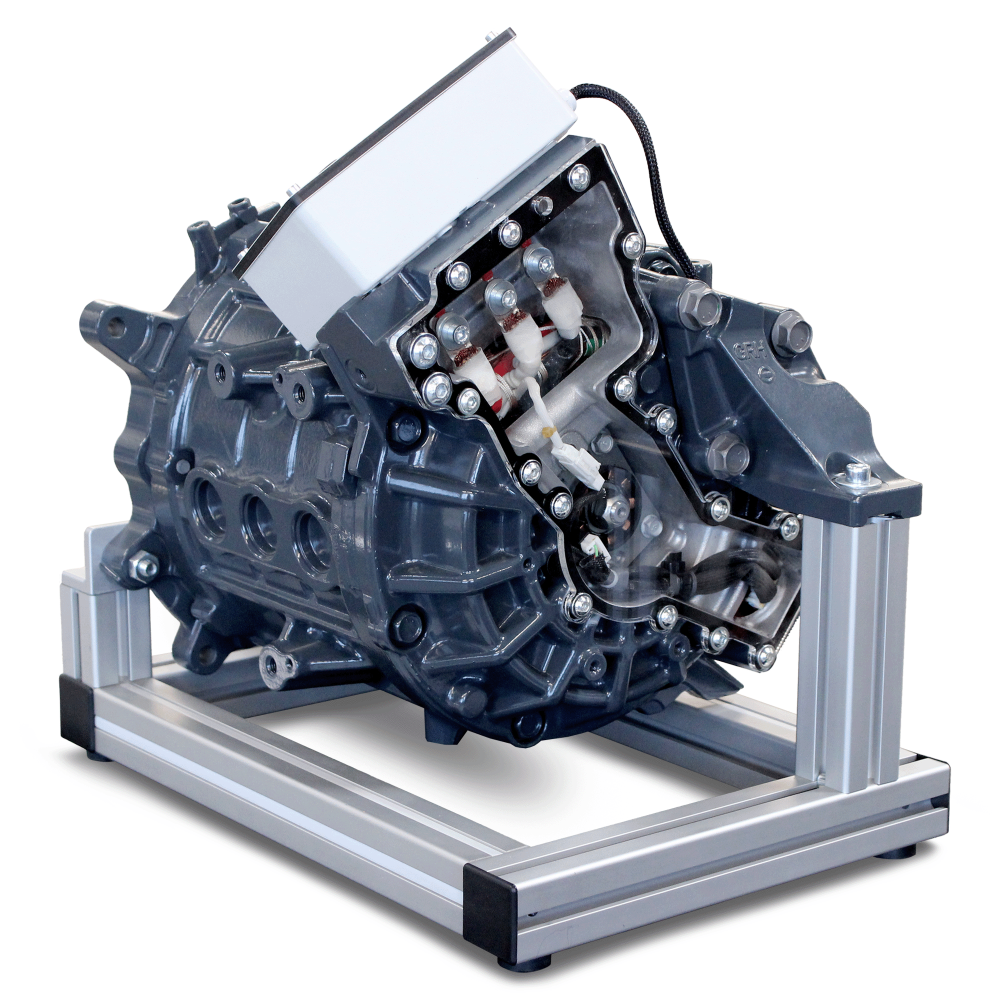

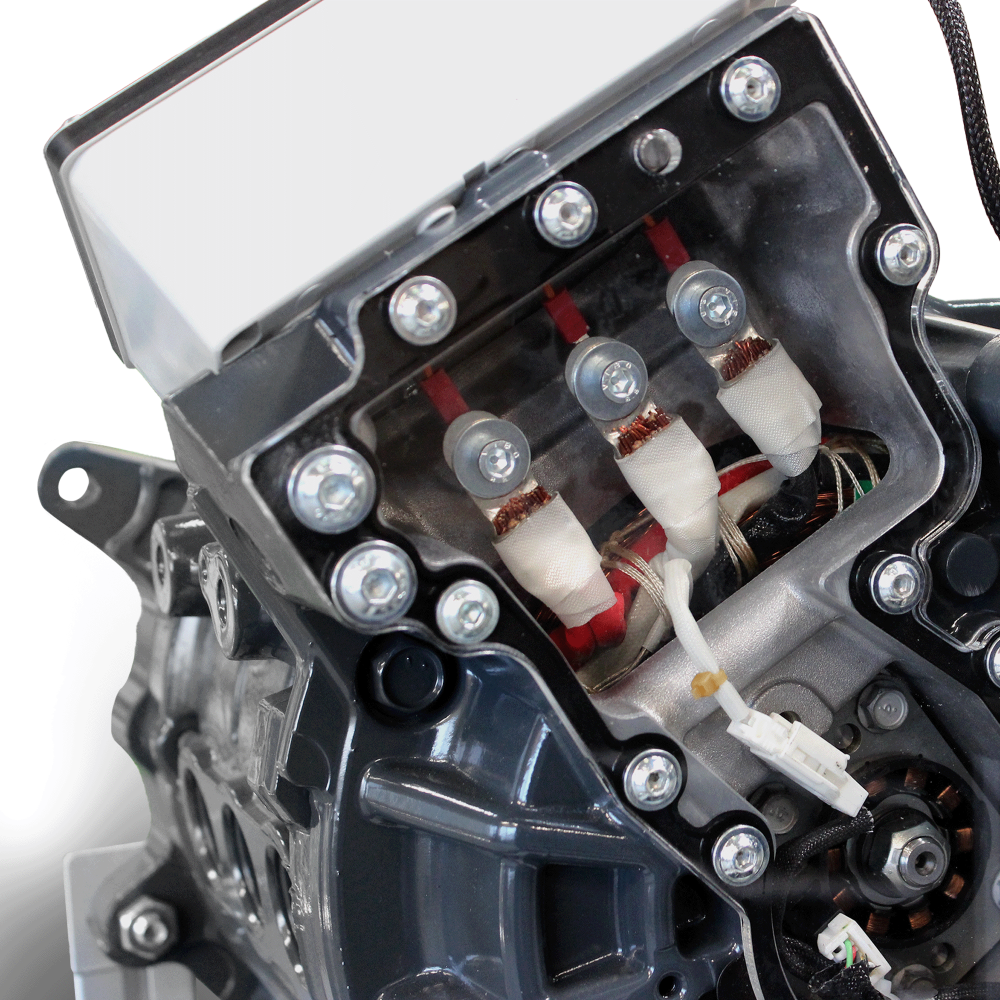

    • Safety: Transparent polycarbonate cover for high-voltage terminal protection.
    • Frame: Aluminum profile with rubber feet for lab stability.
    • Dimensions (approx.): 700 x 500 x 450 mm.
    • Weight (approx.): 25 kg.
    • Product number: MSEM01

    Value for Students

    • Physically simulates how mechanical motion converts to electrical energy.
    • Enables real-time observation of three-phase signal generation.
    • Visualizes electrical output in response to user-controlled crank speed.
    • Supports connection of standard diagnostic tools (oscilloscope, multimeter).
    • Reinforces core concepts of EV motor structure and function.

    Value for Instructors

    • Clear demonstration of electromagnetic induction in a safe, non-powered format.
    • Allows for waveform comparison between different crank speeds.
    • Durable construction suited for repeated classroom use.
    • Transparent design helps explain internal motor components and wiring.
    • Supports structured experiments and practical lab tasks.





    Parametri

    BrošūraMSEM01 datasheet1.pdf
