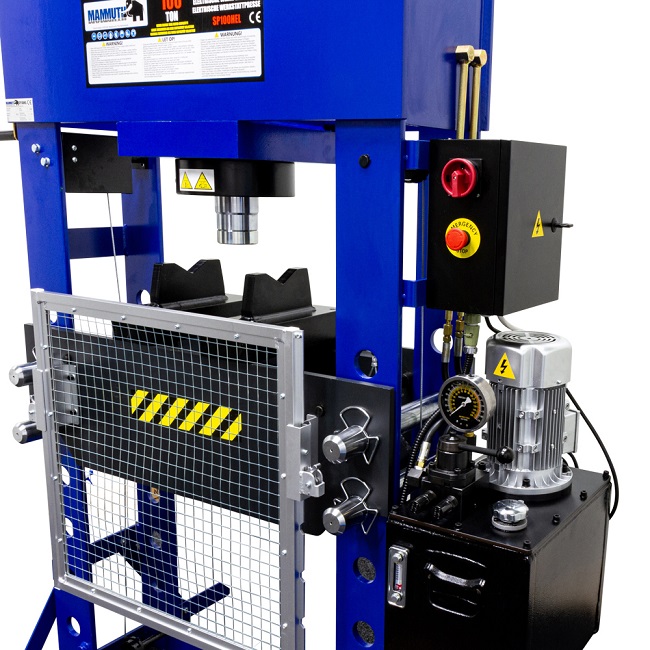

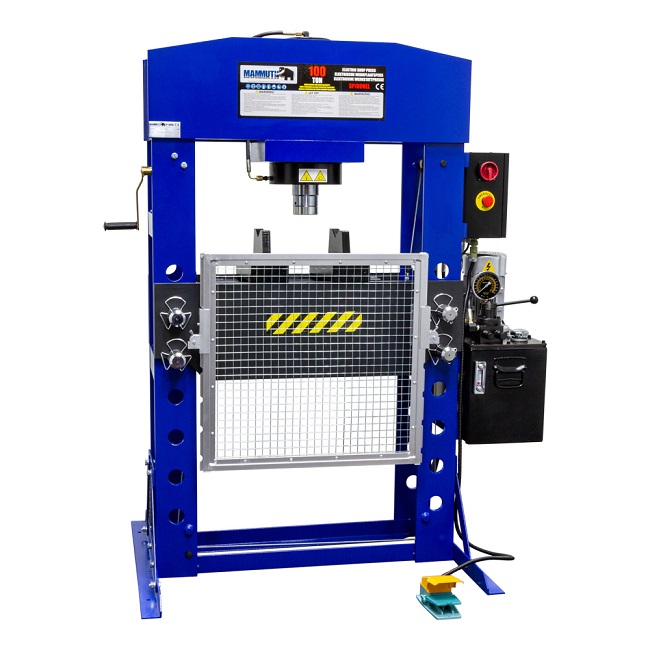

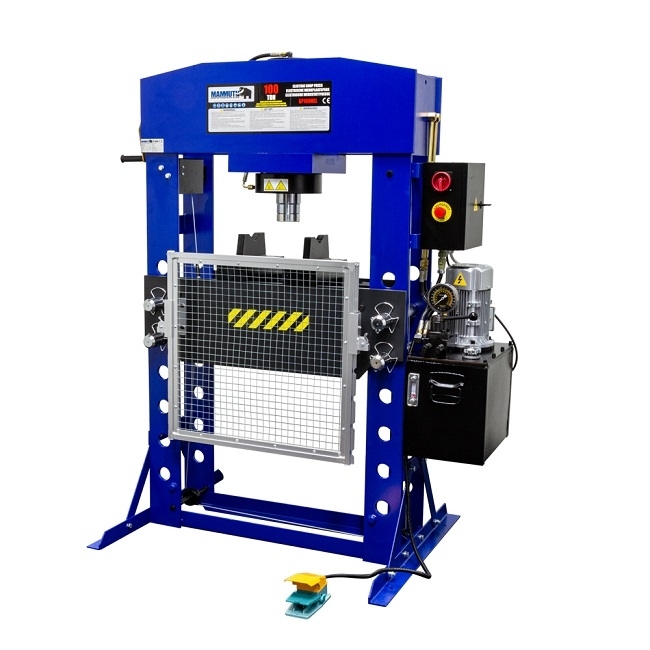

Electric shop press with hand winch 100 ton
This Mammuth workshop press is a powerful and versatile machine. Thanks to the fully welded frame and electric hand or foot control, this press offers speed, power, and precision. This makes it a reliable choice for any workshop. Supplied with 2 pressing blocks.
- Electric control: Effortless and fast operation.

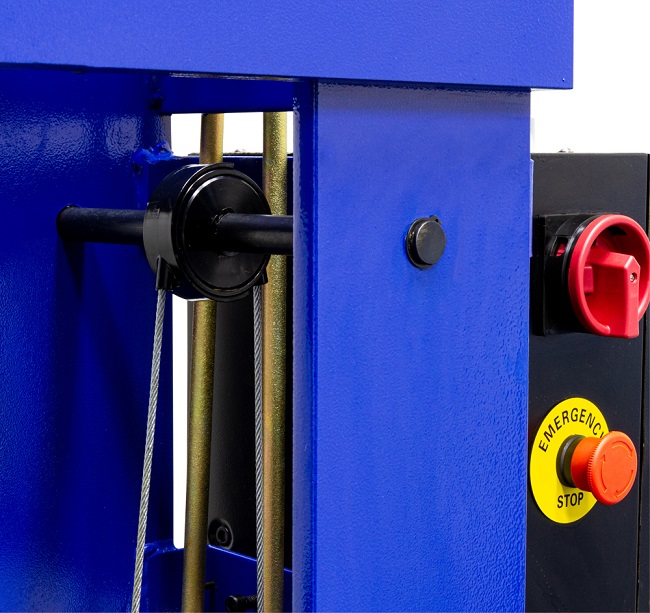

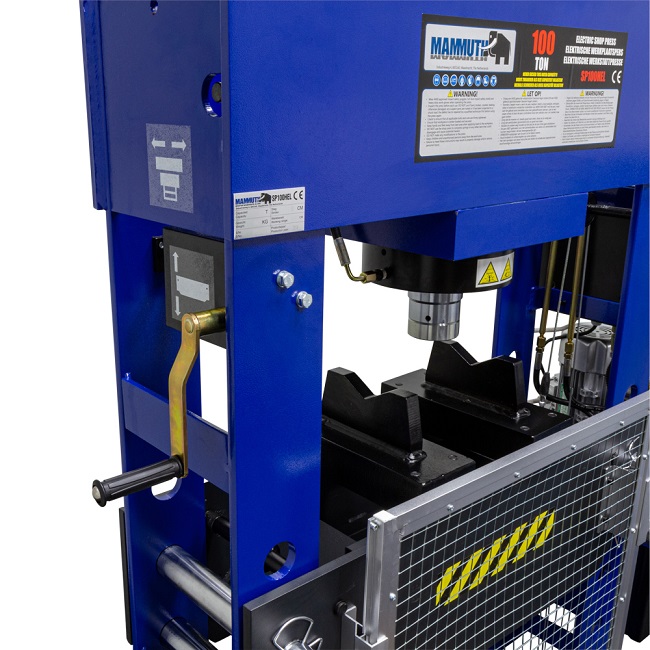

- Hand winch: Easily position the work table at 8 different heights and the cylinder is adjustable sideways.
- Interchangeable pressing cap: Easily removable for using other attachments.
- Safety screen: Provides extra protection during use.
- Foot pedal: Keeps your hands free.
Note: The press is supplied without hydraulic oil (24 liters).
Parameters
| Cylinder diameter | 90mm |
| working width | 800mm |
| Power supply | ~380V/50Hz |
| packaging dimensions | 100x211x122cm |
| Sizes | 114x80x186cm |
| Max. height | 813mm |
| Min. height | 113mm |
| Motor power | 1.5kW |
| Strenght | 100T |
| Weight | 755kg |
| Stroke | 250mm |
