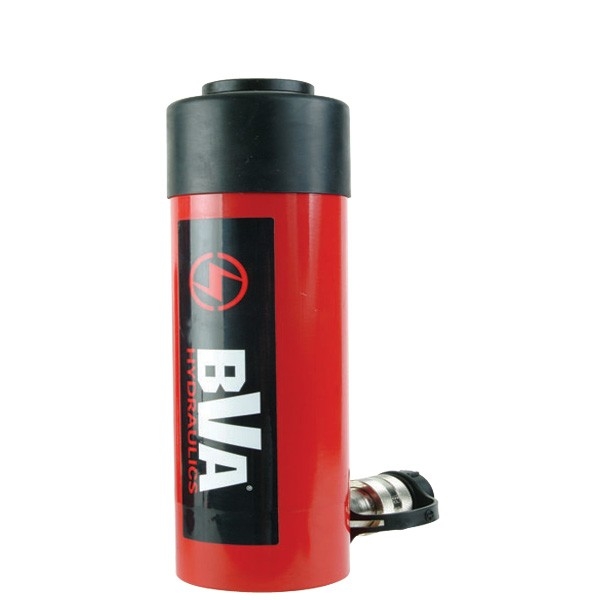

Gift ideasHydraulic single acting cylinder 25t
BVA Hydraulics General Cylinder works at max. 10000 psi (700 bar), manufactured in a solid one-piece alloy steel body, using polyurethane U-cup seals to provide a sure seal and longer life. Our standard hard chrome plated piston rod protects against corrosion & damage; one-piece aluminum alloy bearing protects against cylinder wall damage. Collar threads and base mounting holes are for fixturing. All BVA cylinders come equipped with CH38F high-flow coupler with a dust cap for better protection.
Parameters
| Outer cylinder diameter | 85mm |
| Oil capacity | 169.61 cc |
| Max. height | 219mm |
| Min. height | 168mm |
| Piston diameter | 57mm |
