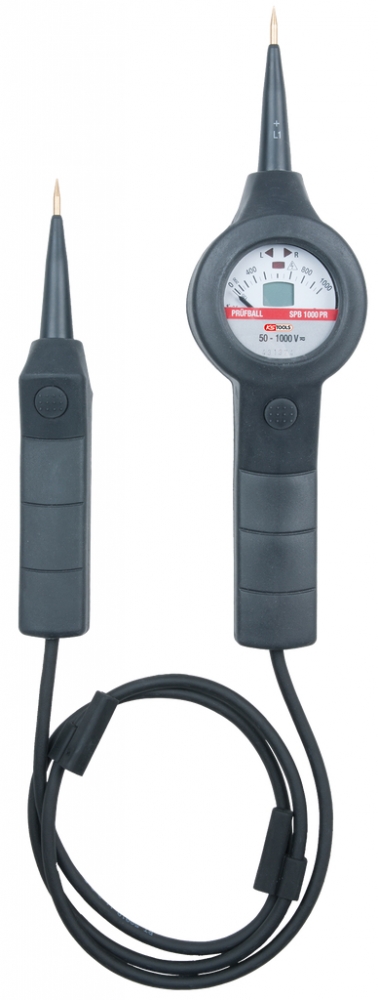

Tension testing ball with protection insulation, two-pole 50-1000 V

• tested and accredited in accordance with international standard
• insulated to IEC EN 61243-3 (DIN VDE 0682-401)
• corresponds to EMC requirements in accordance with DIN EN 61326
• DC and AC voltage shown by LED indicators
• rotating field and phase displayed via LEDs
• with display of rotating field direction (clockwise and anticlockwise)
• deliberate tripping of a 30 mA ELCB

• AC voltage range: 120 - 200 - 300 - 350 - 400 - 450 - 500 - 550 - 600 - 650 - 700 - 750 - 800 - 850 - 900 - 950 - 1000 V V
• Allowable duty cycle: 30 s
• DC voltage range: 120 - 200 - 300 - 350 - 400 - 450 - 500 - 550 - 600 - 650 - 700 - 750 - 800 - 850 - 900 - 950 - 1000 V V
• Display step: 50 - 1000 V
• Frequency: 0 - 100 Hz Hz
