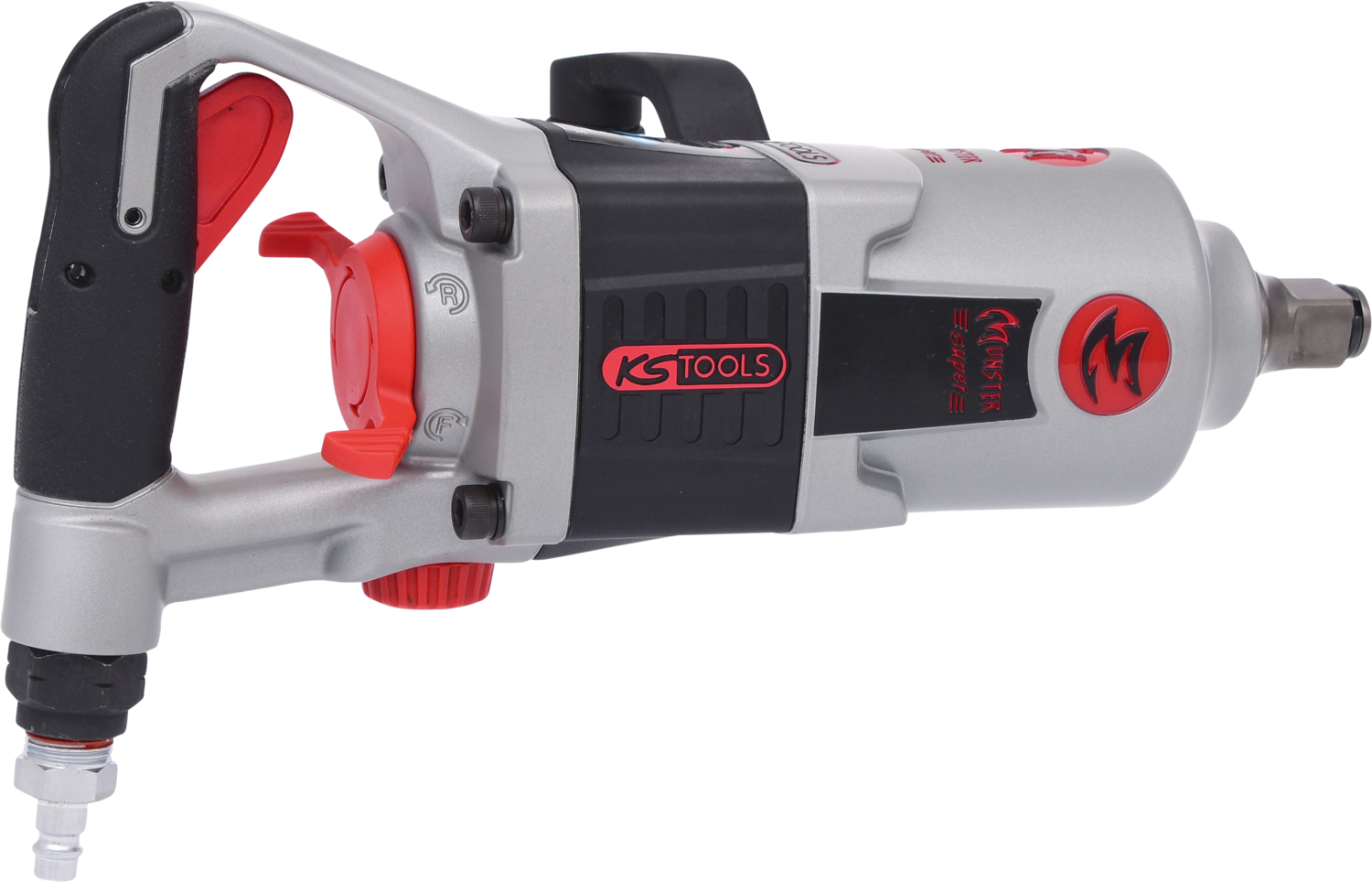

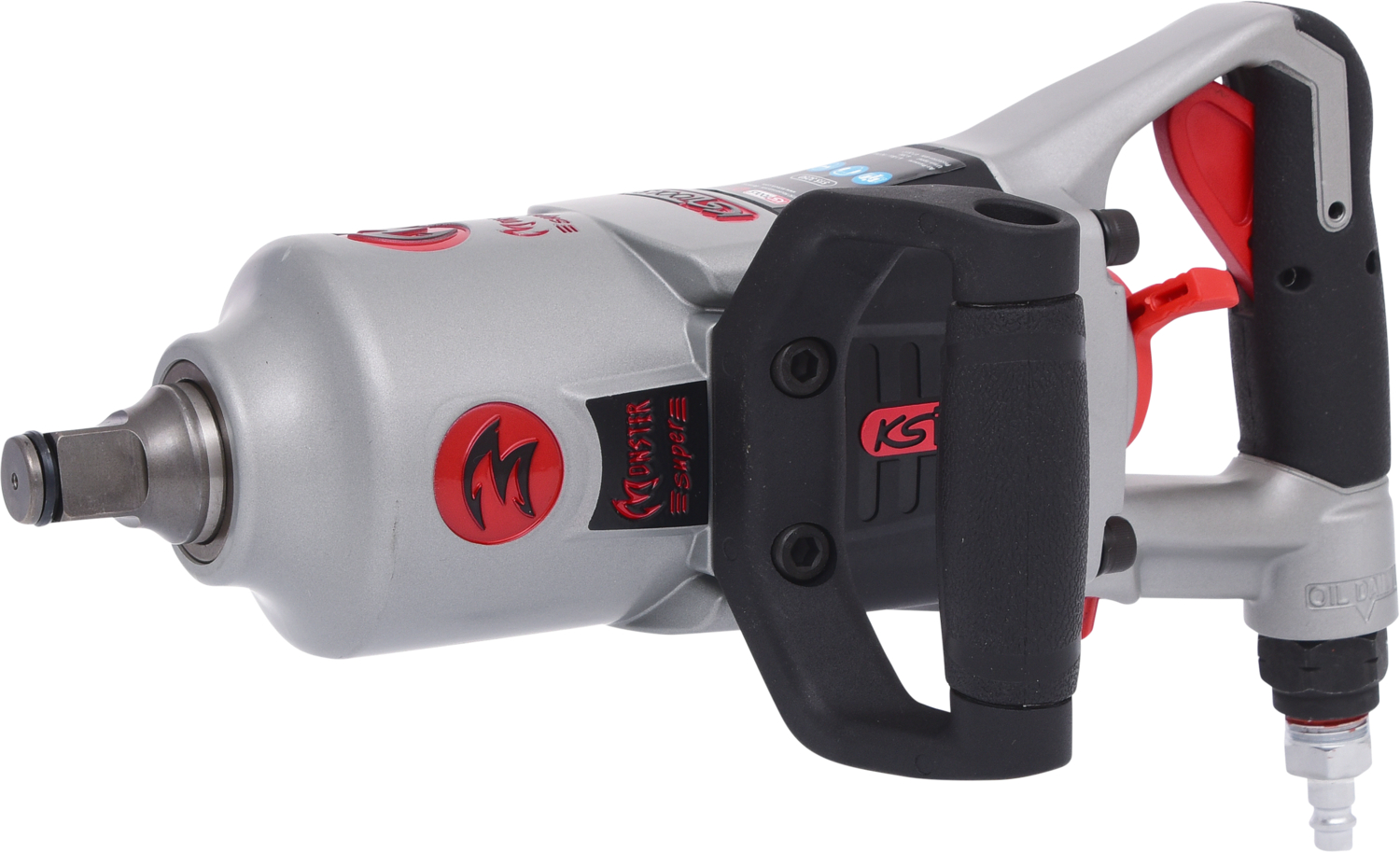

3/4" superMONSTER high performance impact wrench, 3405 Nm

• with non slip soft grip handle
• air exhaust through the handle
• short anvil
• with four-stage torque adjustment for tightening and loosening
• easy operation
• low vibration
• air exhaust integrated in the handle
• low sound level
• high performance double hammer mechanism
• including bore hole for locking pin
• long service life
• cold insulated handle
• includes 1/2” coupling connector
• ultra light aluminium housing

• Air consumption in l/min: 283 l/min
• Anvil length in mm: 40.0 mm
• Connection thread: 1/2"PT
• Drive in imperial: 3/4 "
• Handle: non-slip soft grip handle
• Manufacturer no: 515.3250
• Material1: aluminium
• max. Clockwise torque2: 2 = 1523 Nm Nm
• max. Clockwise-torque3: 3 = 2145 Nm Nm
• max. Clockwise-torque4: 4 = 3064 Nm Nm
• max. Loosening torque: 3405 Nm Nm
• max. Screw size: M 38
• max. Tightening torque: 1 = 919 Nm Nm
• Measuring uncertainty vibration acceleration: 1.73 m/s²
• min. Tube diameter: 3/4" - 19 mm mm
• No Load current rpm: 6200 r.p.m.
• Noise performance level (dbA): 104.5 dB(A)
• Noise pressure level (dbA): 115.5 dB(A)
• Operating Mode: pneumatic
• Operating pressure in bar: max. 6,3 bar (90 psi)
• Square drive: 3/4 "

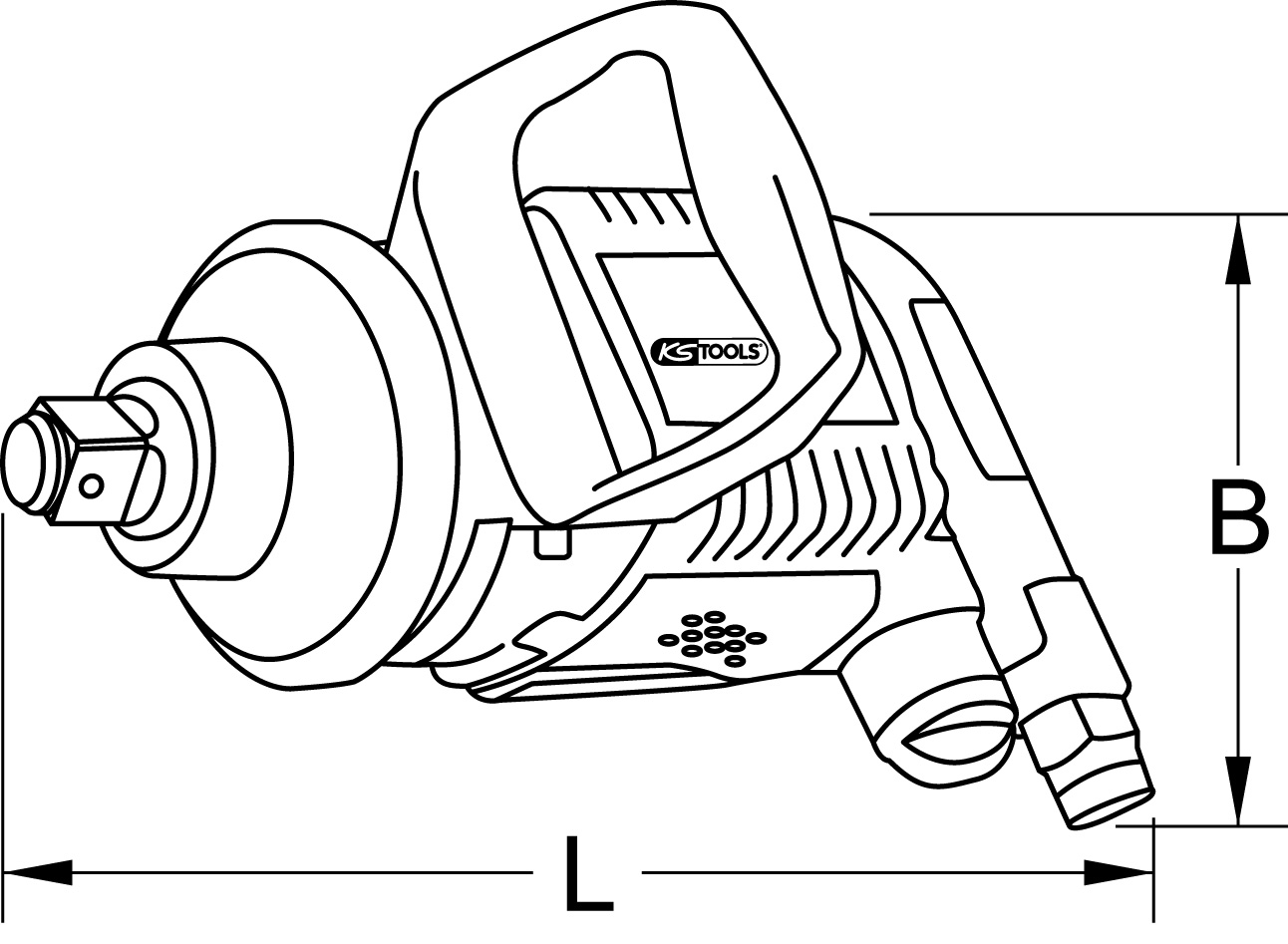

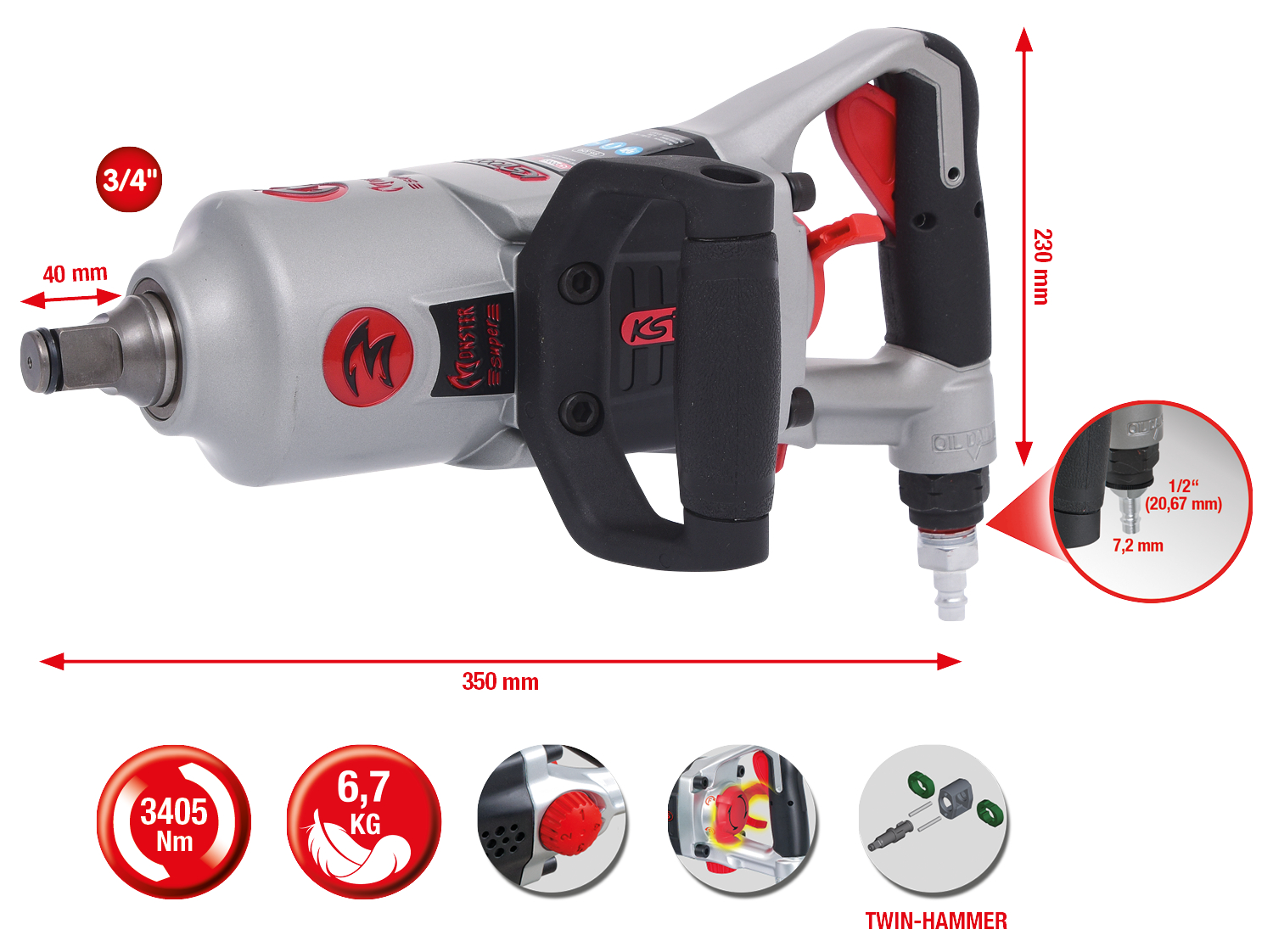

• Total length L in mm: 350 mm
• Vibration acceleration: < 12,57 m/s²

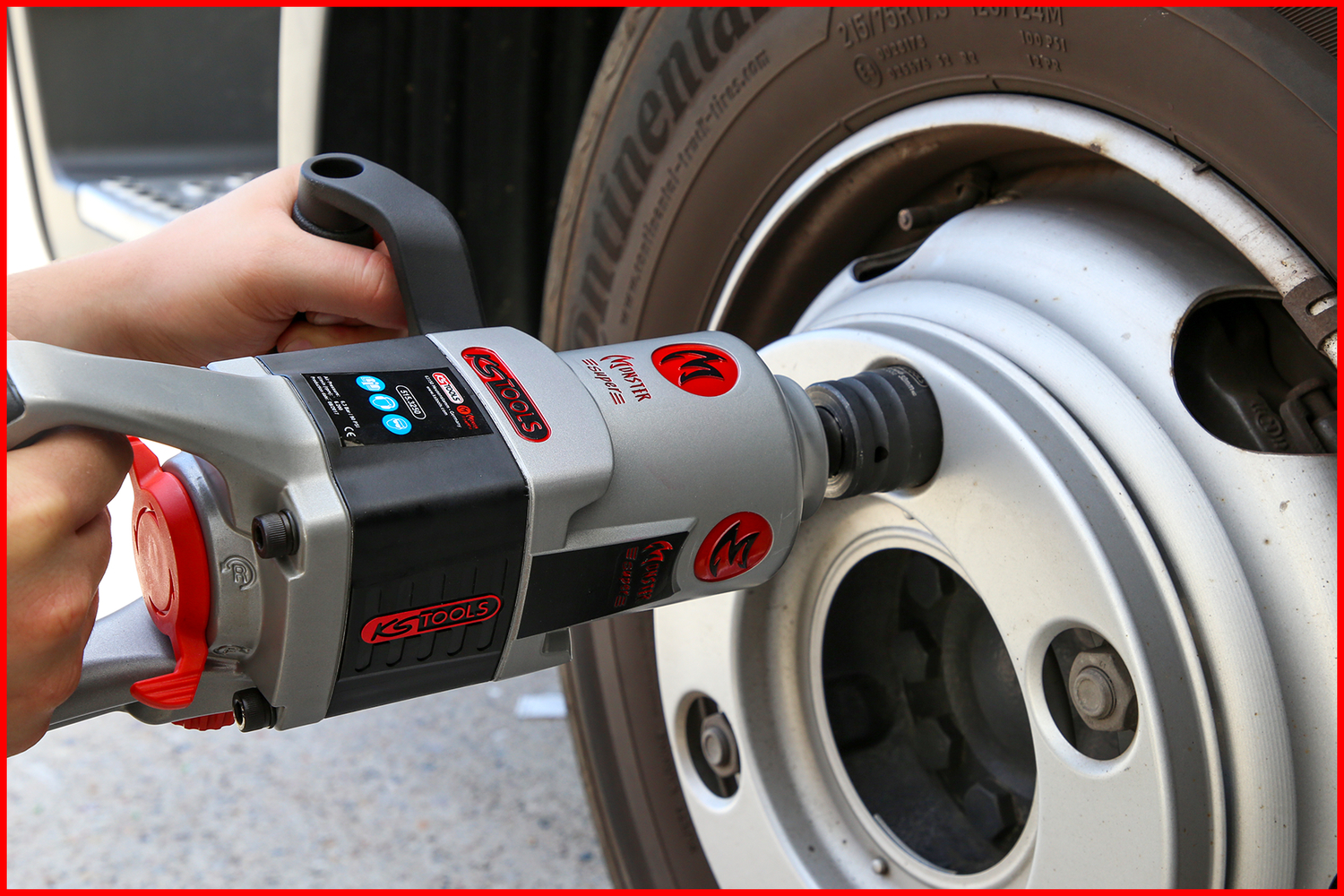

• Video link application: https://youtu.be/V2KTHgD-IyM
• Weight [g]: 6700 g
• Width B: 230 mm

PDF Resources

DF-DOK_PRO_ALG_CE_515.3250_SALL_AQU_V1.pdf
DF-DOK_PRO_ALG_EXPL_515.3250_SALL_AQU_V1.pdf
DF-DOK_PRO_ALG_SIDA_515.3361-DA_SALL_AQU_V1.pdf
DF-DOK_PRO_ALG_SIDA_515.3361-DE_SALL_AQU_V1.pdf
DF-DOK_PRO_ALG_SIDA_515.3361-EN_SALL_AQU_V1.pdf
