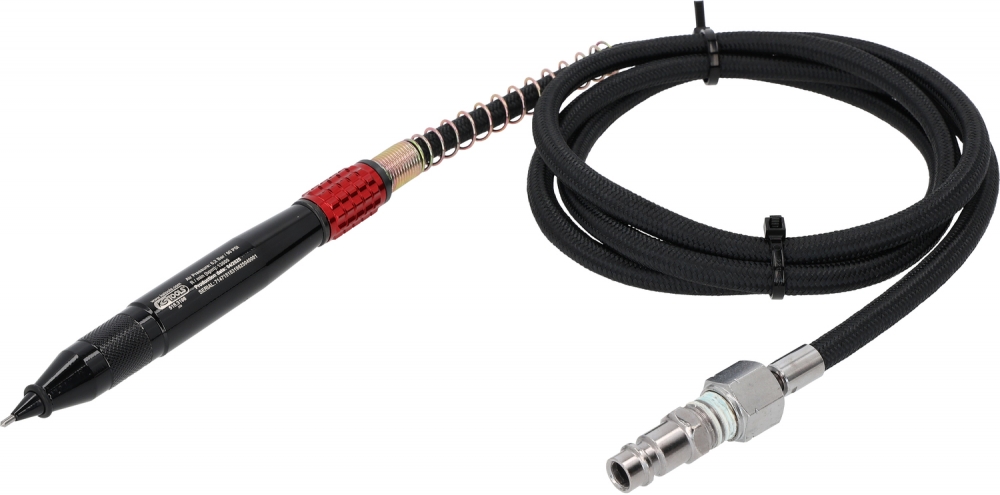

Compressed air engraving pen

• straight design
• for working in hard to access areas
• very handy and compact construction
• with stepless speed regulation
• soundproofed
• includes 1/4" coupling connector
• robust stainless steel housing

• Air consumption in l/min: 28.21 l/min
• Connection thread: 1/4"PT

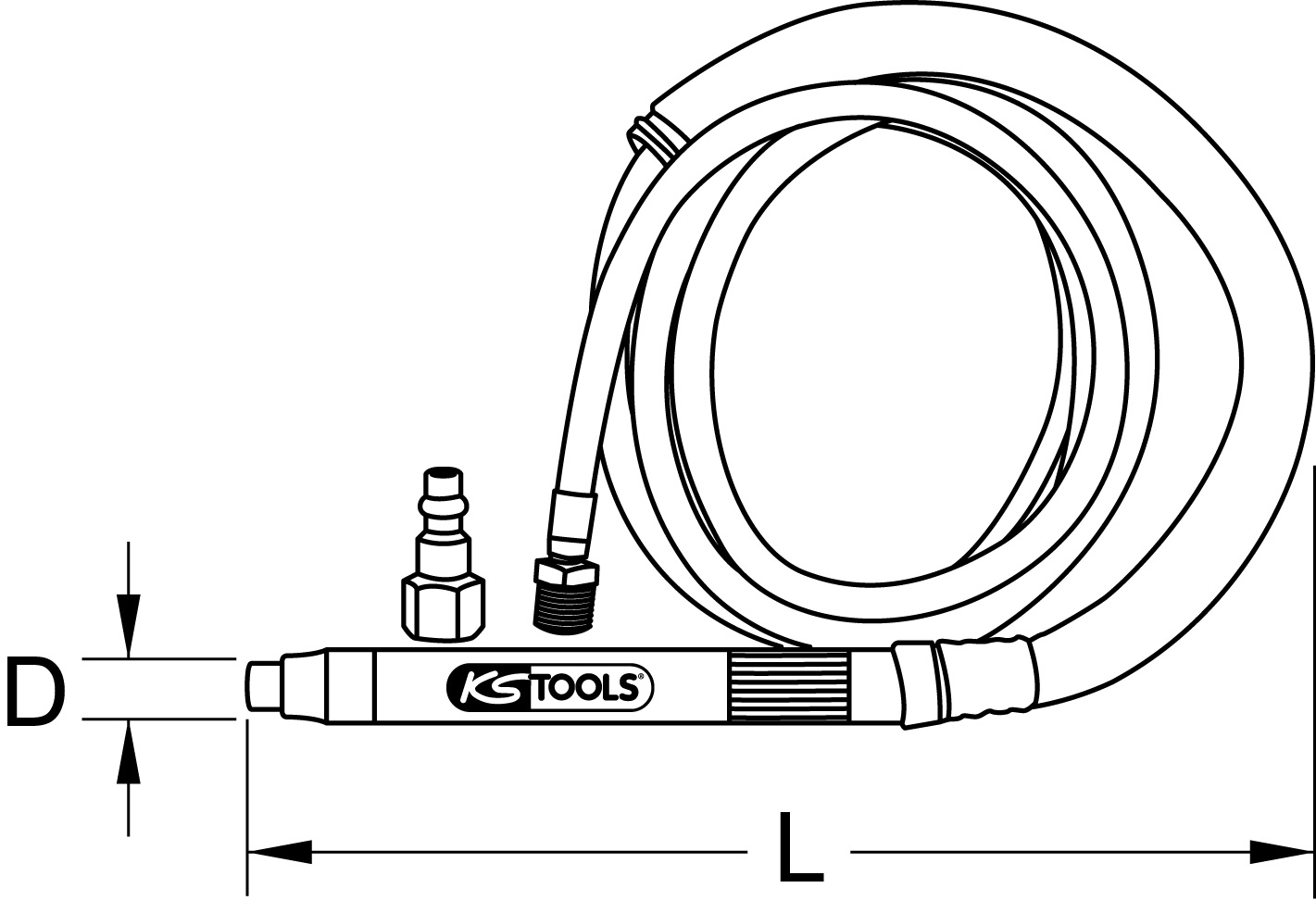

• Diameter D: 16.0 mm
• Hose length in m: 1,4 m
• Manufacturer no: 5153196
• min. Tube diameter: 3/8" - 10 mm
• No Load current rpm: 13000 r.p.m.
• Noise performance level (dbA): 90 dB(A)
• Noise pressure level (dbA): 78 dB(A)
• Operating pressure in bar: max. 6,3 bar (90 psi)

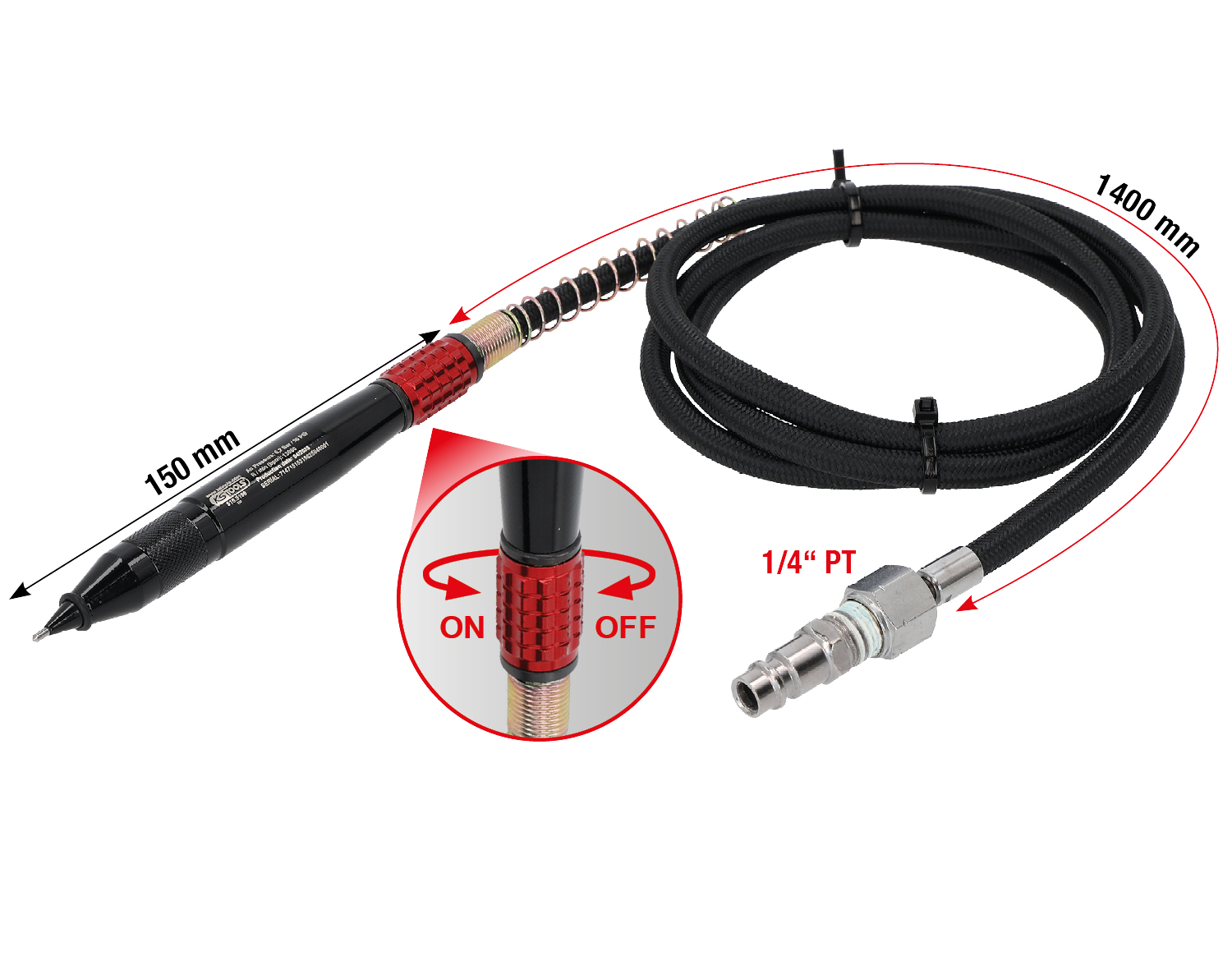

• Total length L in mm.1: 150 mm
• Vibration acceleration: < 2,50 m/s²
• Weight [g]: 220 g

PDF-DOK_PRO_ALG_CE_515.3196_SALL_AQU_V1.pdf
PDF-DOK_PRO_ALG_EXPL_515.3196_SALL_AQU_V1.pdf

Delivery

• in office ( HCT AUTOMOTIVE, Vienības gatve 181, Rīga LV-1058 )
• Venipak (delivery 3.00 €. Free delivery only within Riga for orders above 100.00 €)
• DPD (delivery 3.50 €. Free delivery only within Riga for orders above 100.00 €)
• courier

Payment

• cash
• bank transfer
