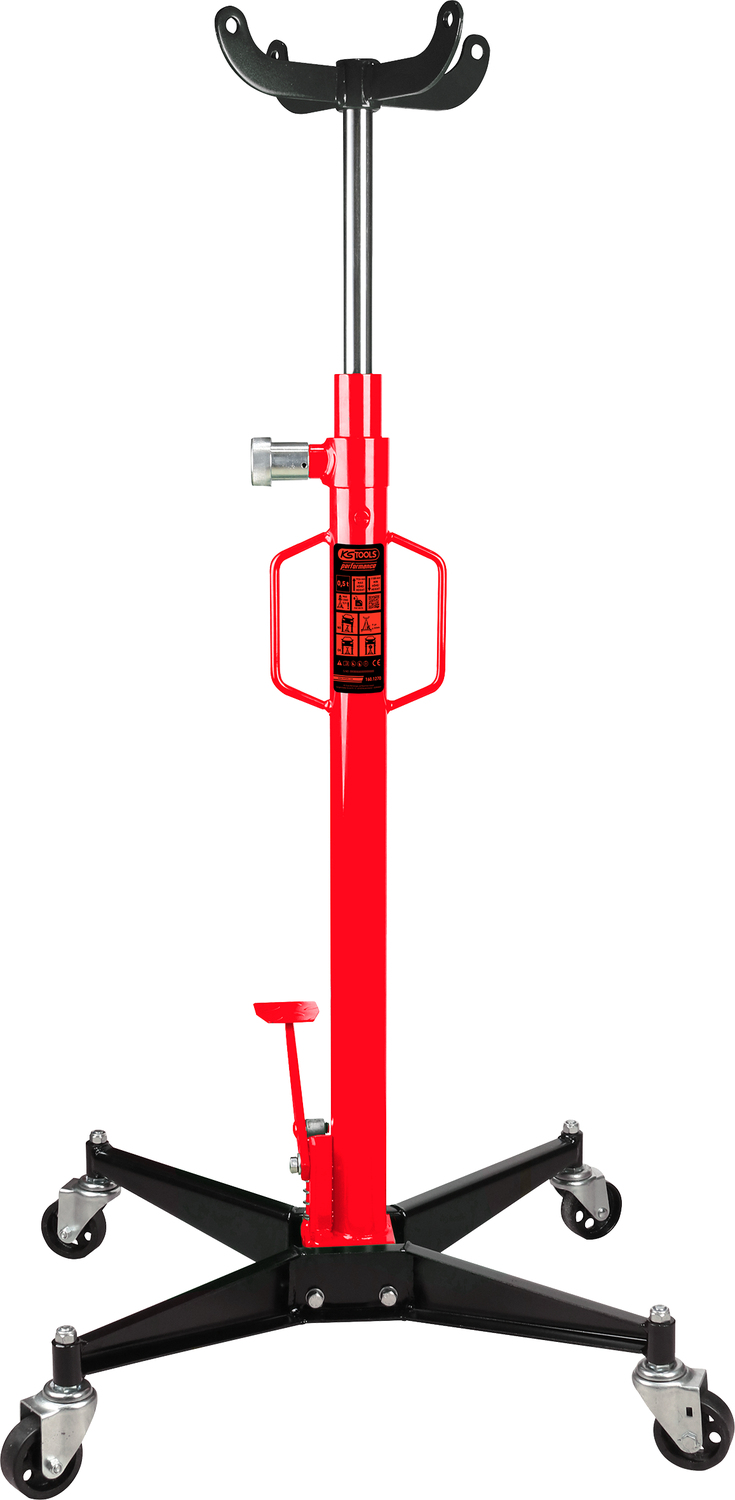

- Ideal for safe installation and removal
- uncomplicated lifting with hydraulic foot pump
- continuous adjustment allows for precise positioning
- especially wide working area
- slow release of the load possible with the foot pump
- transmission holder attached to the piston rod
- includes transmission holder
- Good manoeuvrability thanks to four steel swivel castors
- extra-large covering for lifting
- wide wheel spacing ensures more stability and manoeuvrability when loaded
- overload protection through pressure relief valve
- Safety Bypass technology prevents oil leaks
- ideally suited for daily workshop use
- heavy steel construction
- Function attribute 1: hydraulic

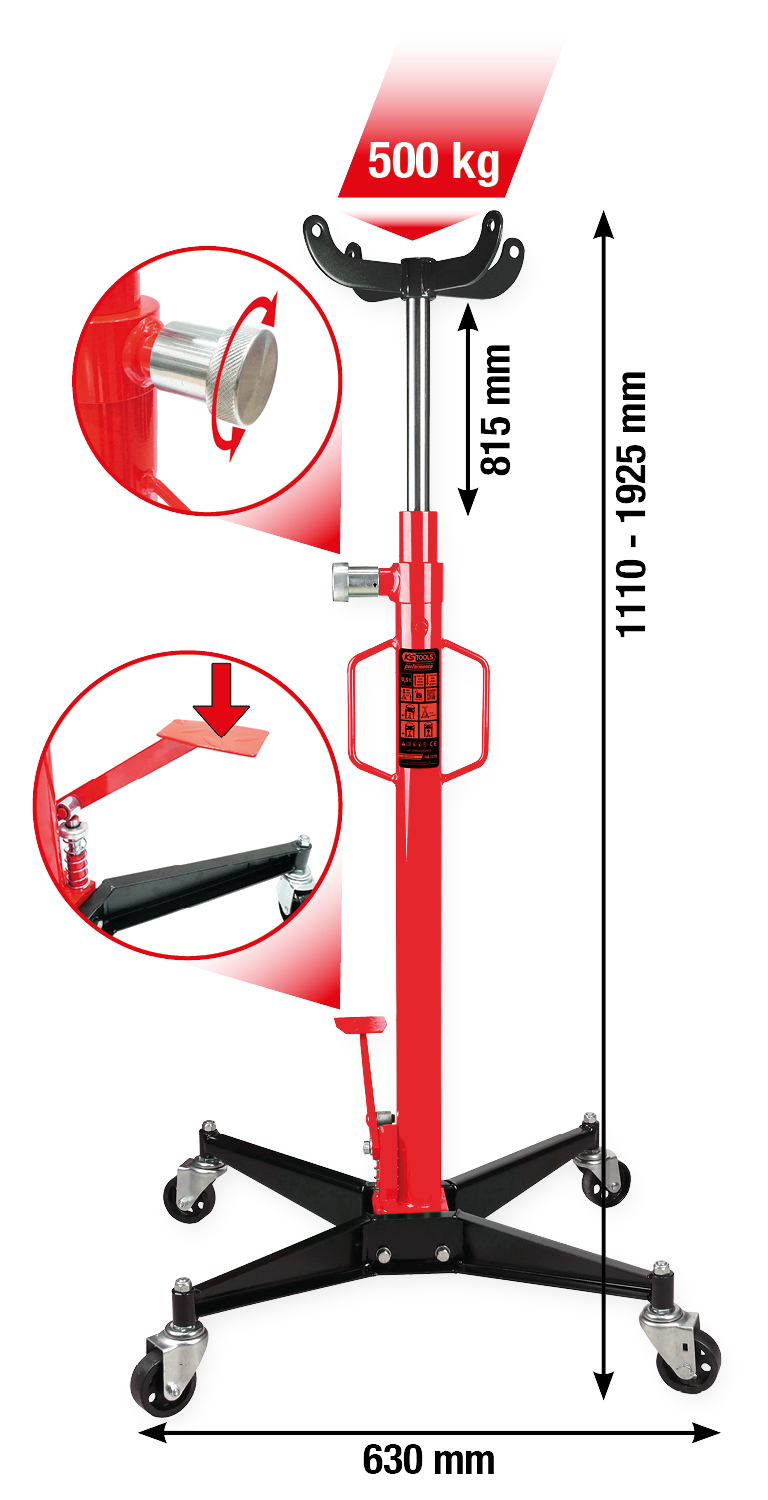

- Height in mm: 1155 mm
- Load capacity in kg: 500 kg
- Manufacturer no: 160.1270
- max. Capacity: 0,5 t
- max. height mm: 1925 mm
- min. height mm: 1110 mm
- Stroke way mm: 815 mm
- Total length mm: 580 mm
- Weight [g]: 22500 g
- Width in mm: 630 mm
PDF Resources
DF-DOK_PRO_ALG_EXPL_160.1270_SALL_AQU_V1.pdf
