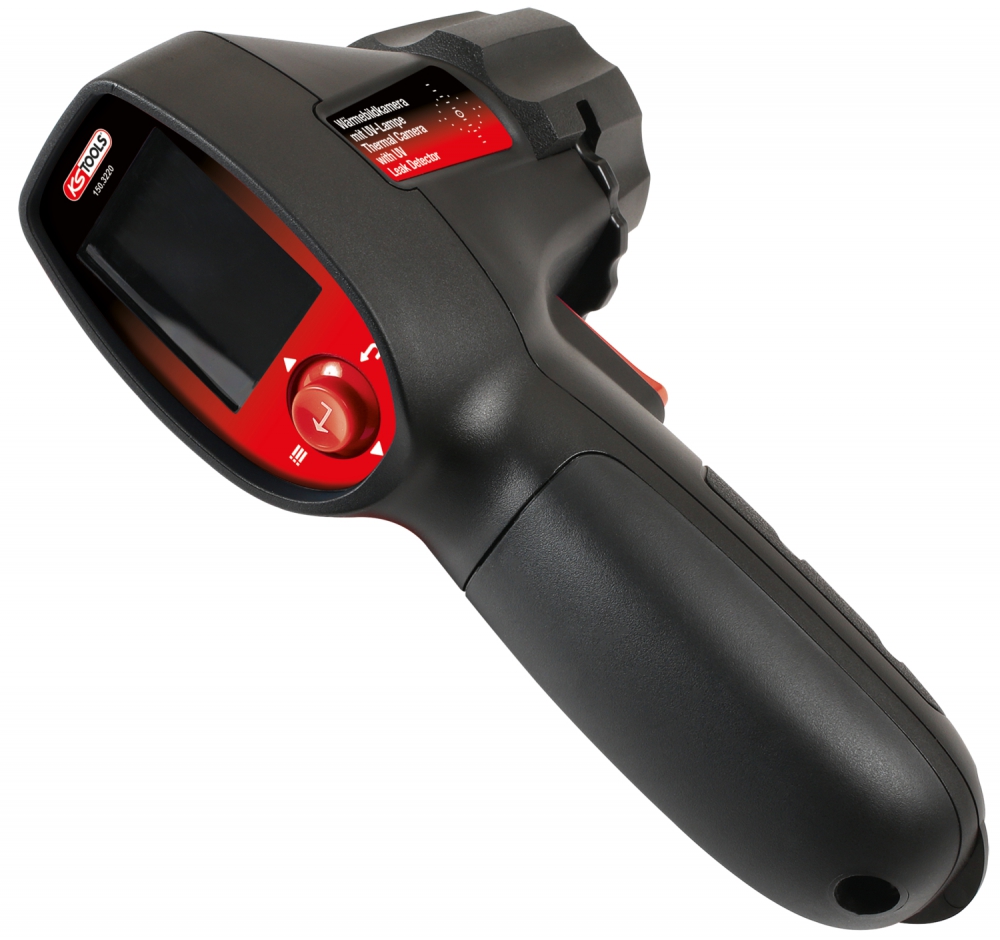

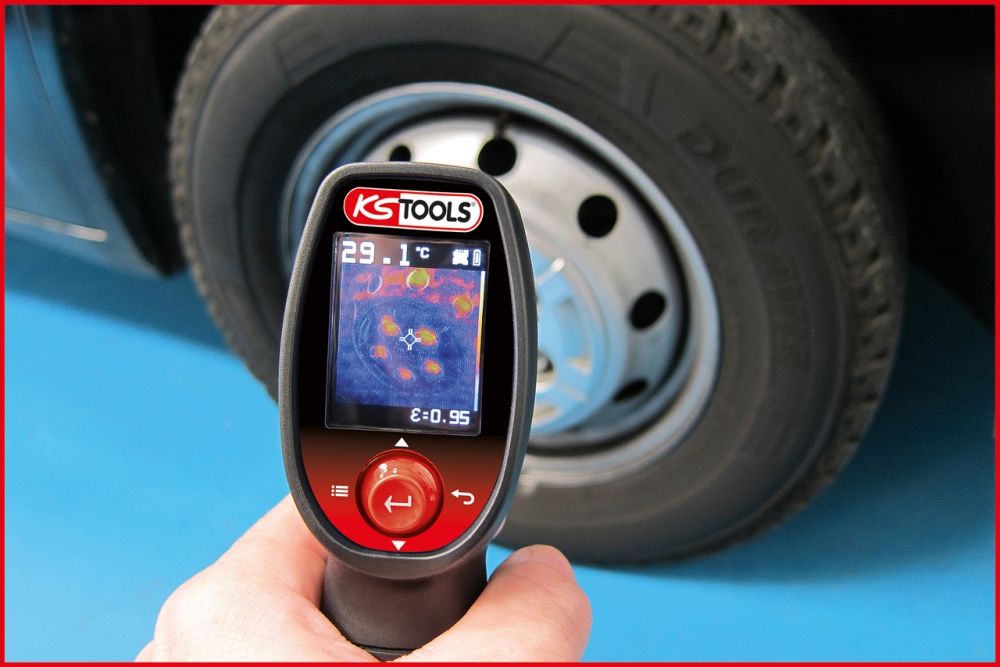

Thermal imaging camera with UV light

Products » Auto Service Equipment » KS TOOLS Top deal » Special tools for passenger cars and light commercial vans » Engine - Engine cooling system » Temperature measuring device
code: 150.3220
out of stock
€49308Without VAT 407.50 €
Notify when the item will be in stock




Esto 12

12 x 41.09€


    Price includes VAT 21%

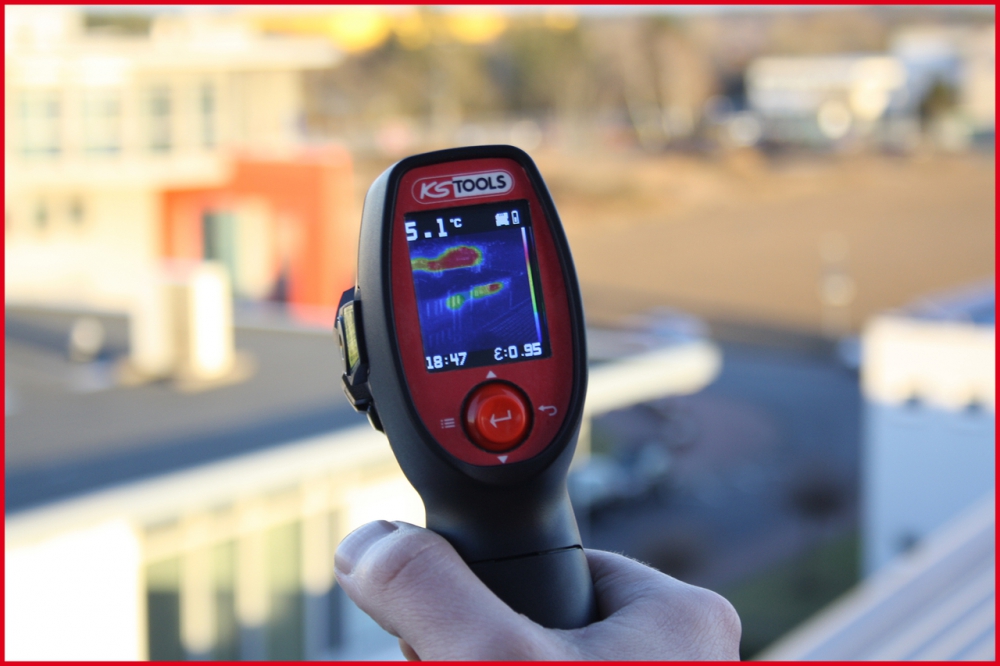

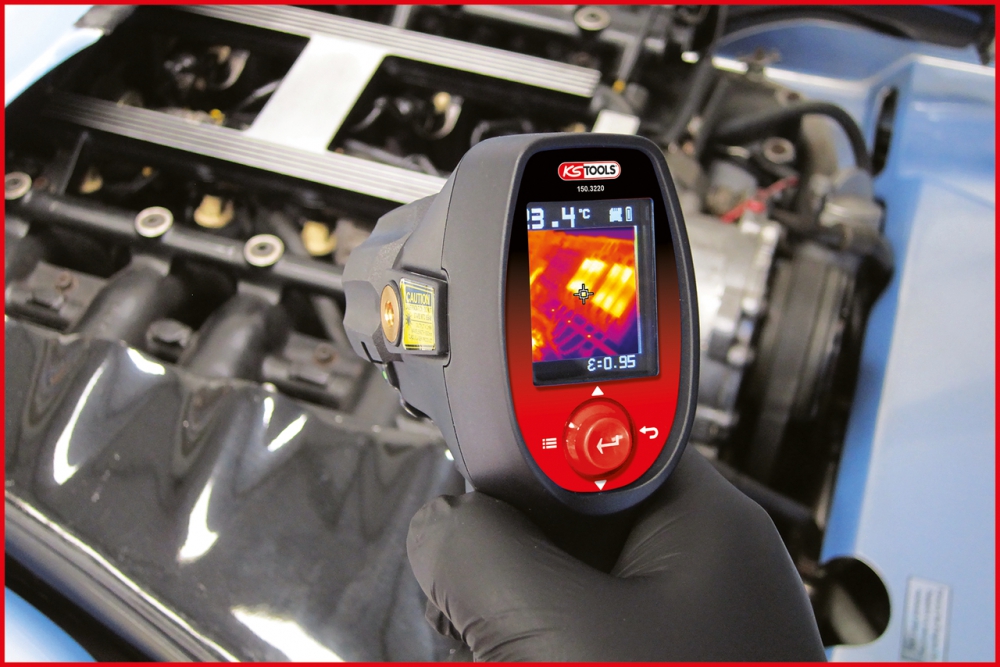

    • compact thermal imaging camera for applications in construction, electrical engineering, mechanical engineering, automotive industry, etc.
    • reliably measure temperature and store images and data for reports
    • accurate readings can be taken from safer distances

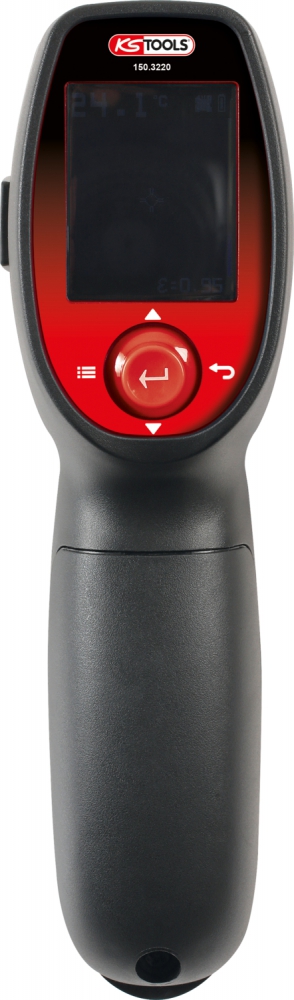

    • colour display for the safe evaluation and analysis of temperature conditions

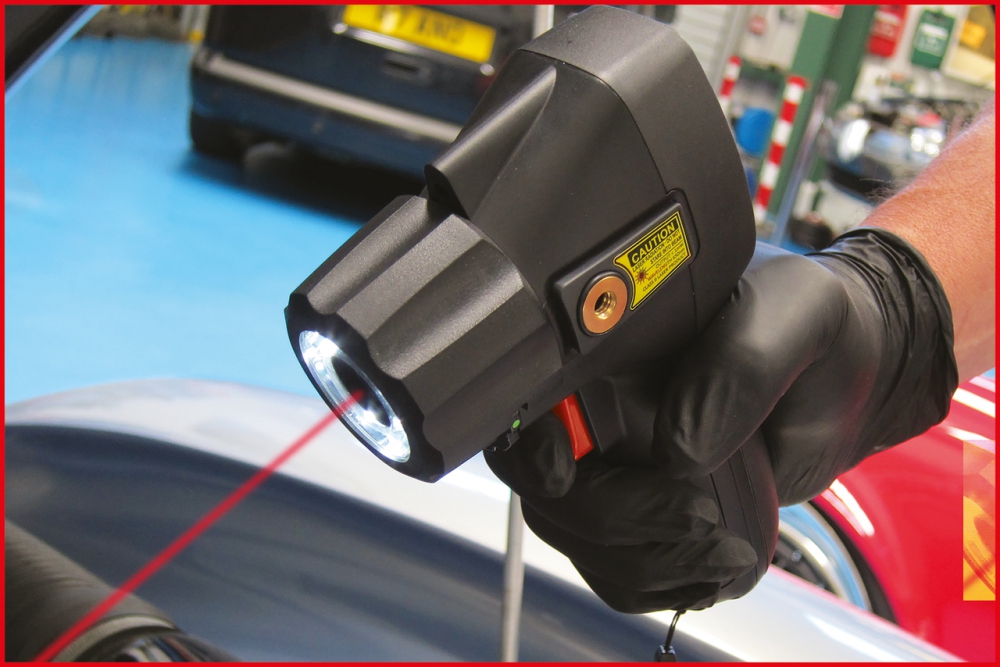

    • with a laser pointer for precise positioning
    • three selectable colour palettes for image display: hot iron, rainbow and grey
    • selectable measuring range between Celsius °C or Fahrenheit °F
    • integrated LED lights support working in dark areas
    • the integrated UV lamps are ideal for the detection of leaks in cooling or air conditioning systems
    • adjustable automatic switch-off
    • date and time can be set for accurate data acquisition
    • integrated micro USB interface
    • on and off switch is also used to protect the camera
    • includes 3xAA batteries

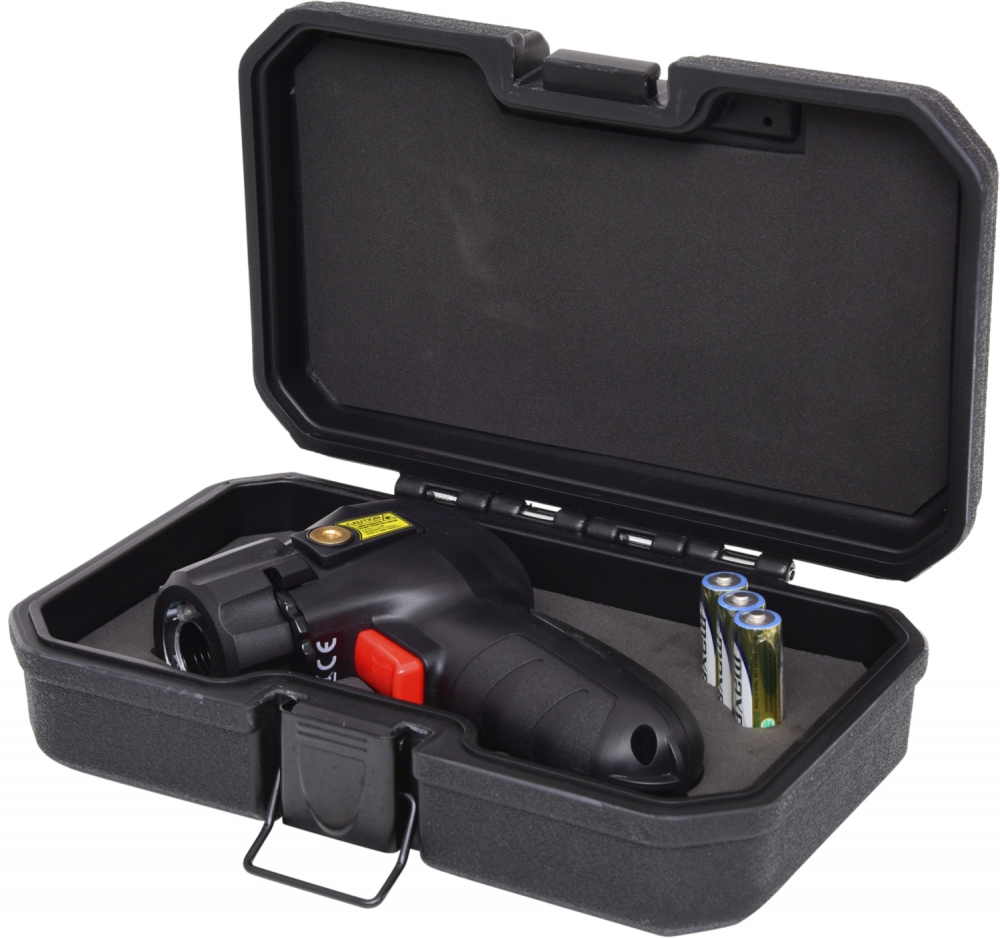

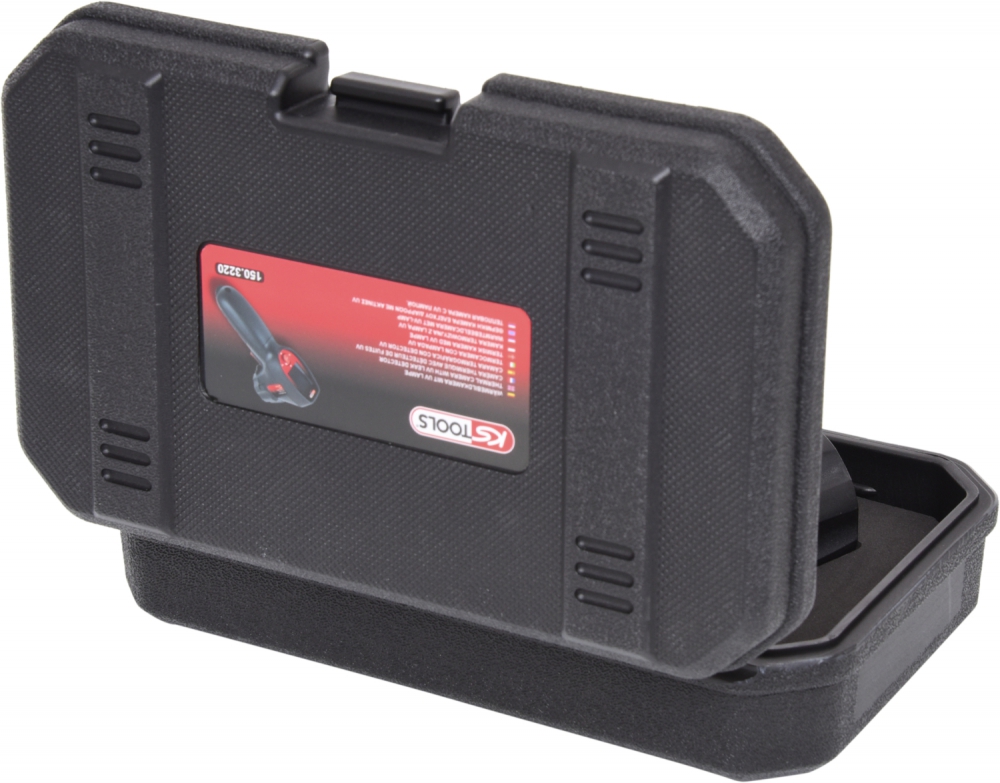

    • in durable plastic storage case
    • for replacing the silent bearing from the longitudinal control arm and cross control arm on the front and rear axles

    Advantages:
    • Measure temperatures more accurately
    • Result report with integrated images
    • Quick fault diagnosis
    • Safety and greater distance for the employee

    Contents:
    • Basic unit
    • 2 GB micro SD memory cards
    • Batteries 3xAA

    Technical data:
    • Accuracy: ±1.5% or 1.5°C
    • Measurement range: -30°C to 650°C (-22°F to 1202°F)
    • Emissivity: 4 pre-set values, user adjustments between ε 0.10 and 1.00 are possible

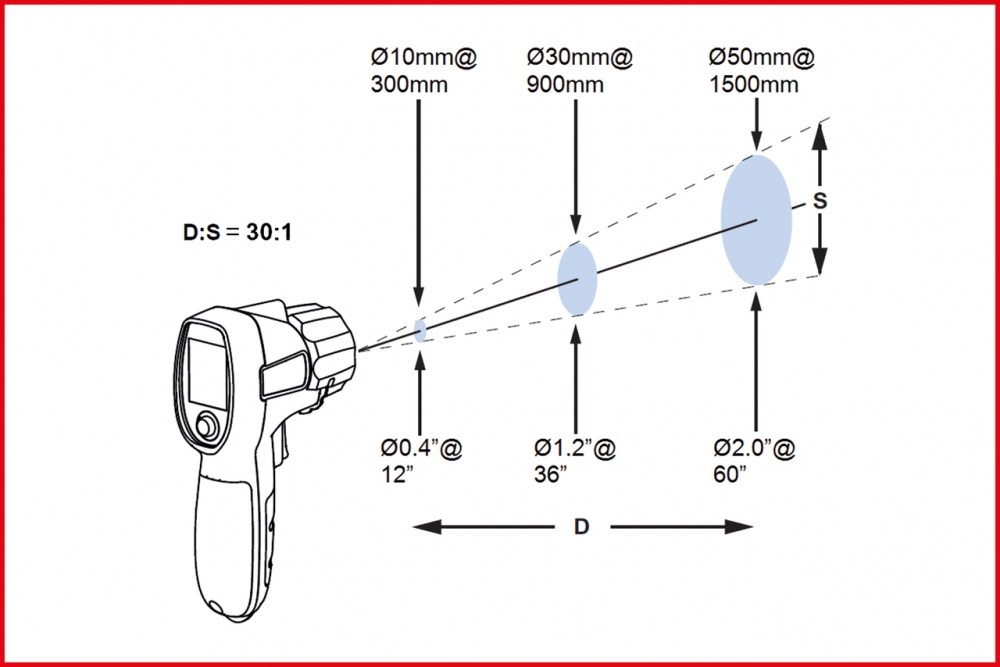

    • Distance-to-spot ratio (D:S): 30:1
    • Measurement value resolution: 0.1°C/°F
    • Response time: >125 ms
    • Spectral range: 8 to 14 µmv
    • Laser: a laser cross-hair encircles the area being measured
    • Detector: IR-EX™ technology (integrated IR array sensor with CMOS sensor)
    • Screen resolution (H x W): 16,384 pixels (128 x 128)
    • Field of view (H x W): 30.0°
    • Upper range: 650°C
    • Thermal sensitivity: 150 mK
    • Screen refresh rate: <9 Hz
    • Colour range: 3 (iron, rainbow and grey)
    • Picture storage format: image in bitmap format (BMP) with temperature and emissivity
    • Screen: 1.77” TFT colour screen (pixel resolution 128 x 160)
    • Battery: 3 x AA
    • Battery life with laser and light: 12 hours
    • Memory: 2 GB micro SD card
    • Working temperature: 0°C to 50°C (31°F to 122°F)
    • Battery composition: Alkali-Mangan (Alkaline)
    • Battery included: Yes
    • Battery rechargeable: No
    • Battery type: AA
    • Display accuracy1: ± 1,5 °C / ± 1,5 %
    • Height in mm: 104.0 mm
