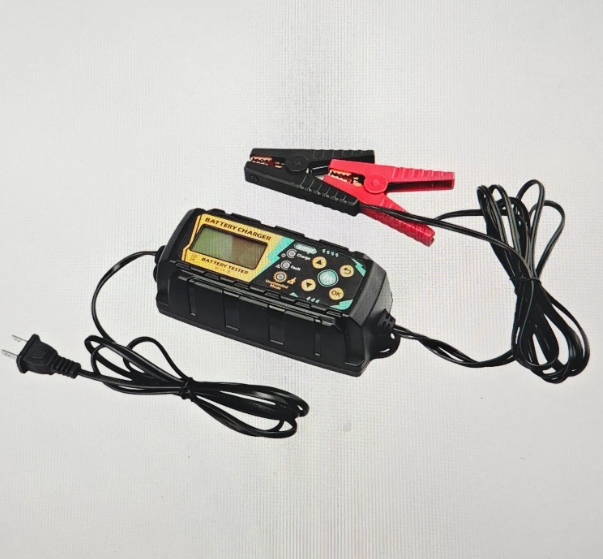

Gift ideas12V Battery Charger
8-step smart charger, which can charge various 12V lead-acid batteries
Test the CCA value and health status of the 12V lead-acid battery
Test the cranking system and alternator system of the vehicle
The shortcut key “Fn” can be set to battery one-key quick test or
one-key quick charging function
The maximum charging current can be set to 5A/3A/1A
Smart Unattended Mode, which can stay connected for a long time
With IP65 waterproof, the charger can be used in wet environment
Provides battery repair mode
The output power is automatically reduced when the charger
temperature is too high
Built-in high and low temperature compensation mechanism,
automatically start winter or summer working mode
Built-in overvoltage, overcurrent, overheating and reverse polarity
protection functions, anti-overcharge, anti-overdischarge
Battery Type: All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
Battery Capacity: 1.2-160Ah
Protection Class: IP65
Temperature Compensation: Built-in charging voltage compensation according to ambient temperature
Maximum Charging Current: 5A, 3A, 1A
Max Current of Unattended Mode: 2.5A,1.5A,0.5A
Reverse Leakage Current: 60mA/h
Input: 220-240V-AC/50-60Hz
Charging Voltage: 1. 14.4V / 2. 14.7V / 3. 15.8V / 4. 13.6V
Minimum Battery Voltage: 2V
AC Input Current: 1.25A rms (At maximum charging current)
Ripple: <4%
Working Temperature: -20 °C~70 °C (-4 °F~158 °F )
Safety: overvoltage protection、overcurrent protection、
overheat protection、reverse connection protection、
anti-overcharge、anti-overdischarge
Charging Type: 8-step, fully automatic charging cycle
