Gift ideasWelding inverter semi-automatic MIG/MAG 200A (Digital)

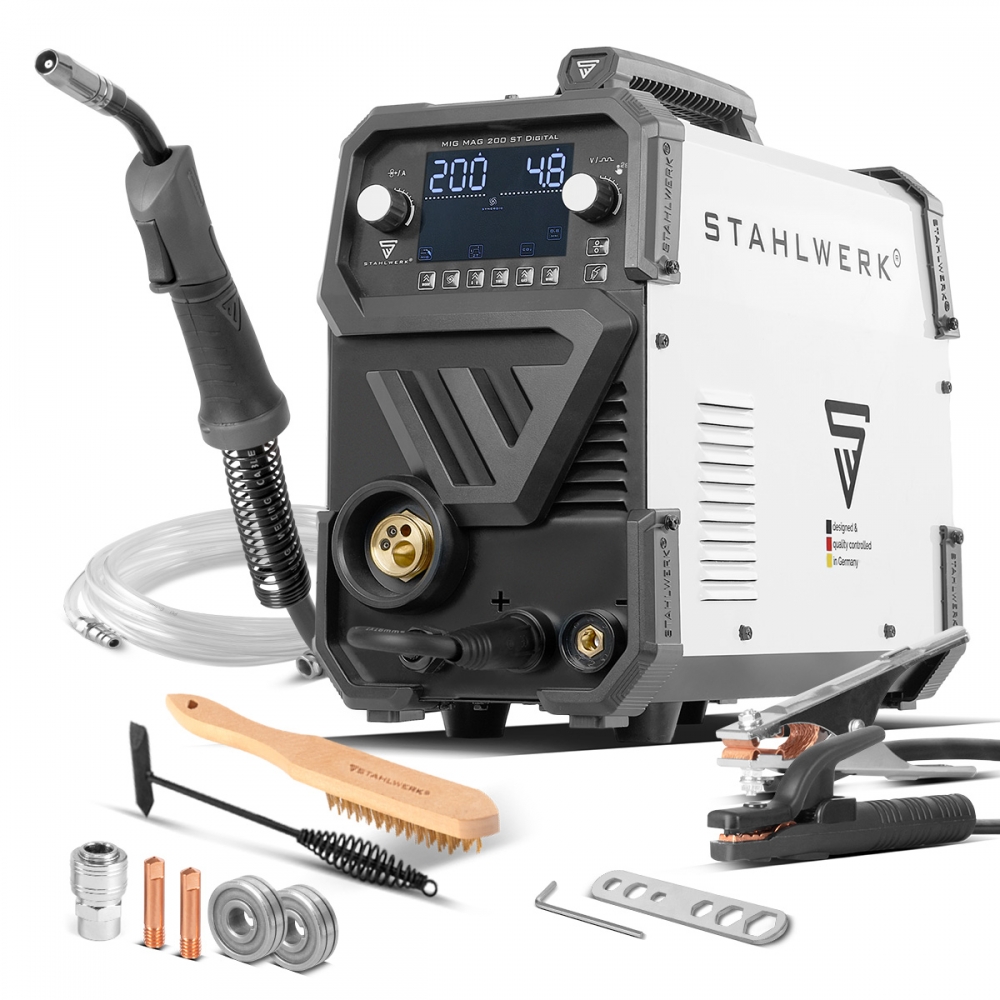

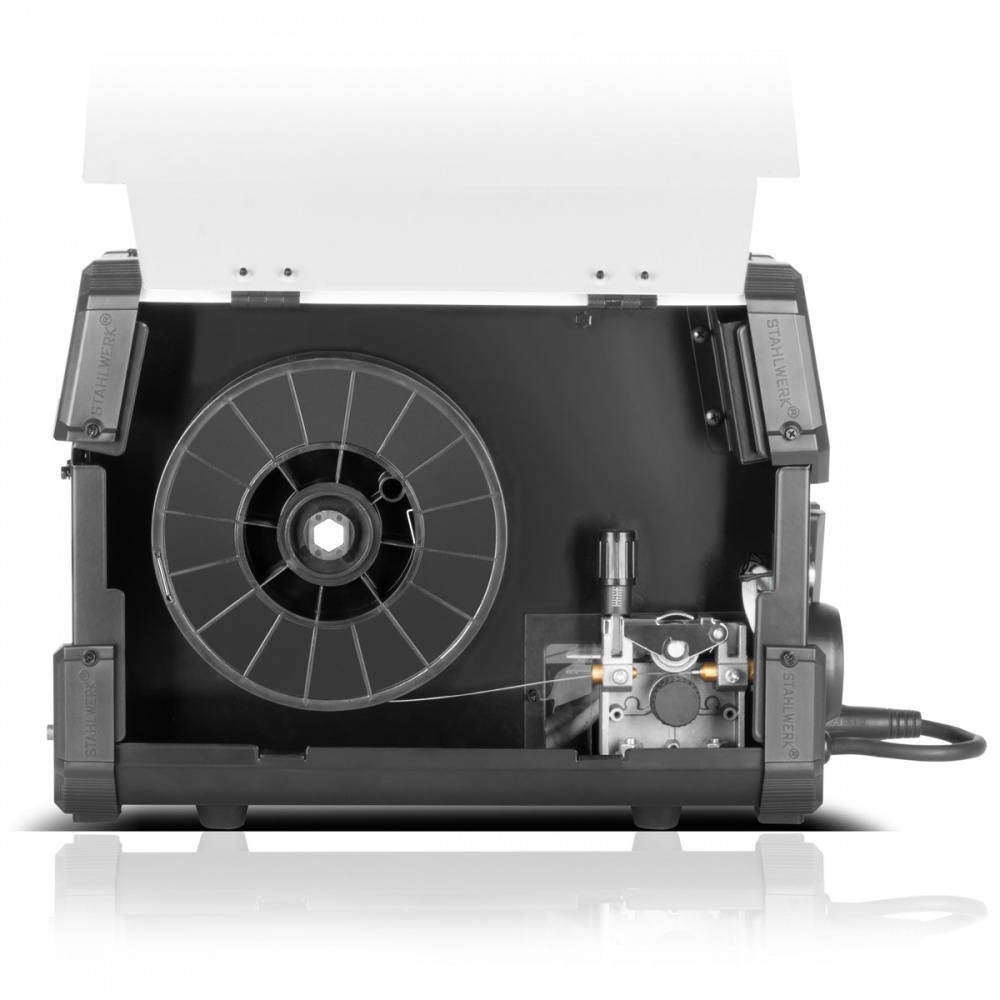

The STAHLWERK MIG MAG 200 ST Digital welding machine has a synergic wire feed, operates at up to 200 A and is suitable for both MIG MAG welding and MMA/ARC applications. In addition, FLUX cored wire can be processed, so welding without shielding gas is also possible. The welding parameters can be easily read on a clear digital display. The various modes can be set quickly using the intuitive menu. Equipped with the latest generation of IGBT technology, the inverter offers outstanding welding properties thanks to its higher efficiency and reduced power consumption. Thanks to optimum performance parameters, the versatile welding machines can be used for almost all requirements and always ensure perfect work results. In addition to smart cooling with integrated overheating protection, the welding machine has a synergic wire feed. The wire feed speed is automatically regulated by the set welding current. As a special highlight, the welding machine has an integrated LED light to illuminate the wire guide, which enables the wire spool to be changed quickly even in poor visibility conditions. This is switched on automatically when the protective flap is opened. The compact design and low weight ensure effortless transportation and comfortable working. The spot welding function is particularly suitable for thin body parts in the automotive sector. As a result, the tacking points are precisely reproducible and even. The spot function means that very little heat is transferred to the workpiece, resulting in less distortion. The 2T/4T mode offers extended control over the current flow.
Parameters
| Protection degree (IP) | IP21S |
| Power supply | 230/1 V/fāze |

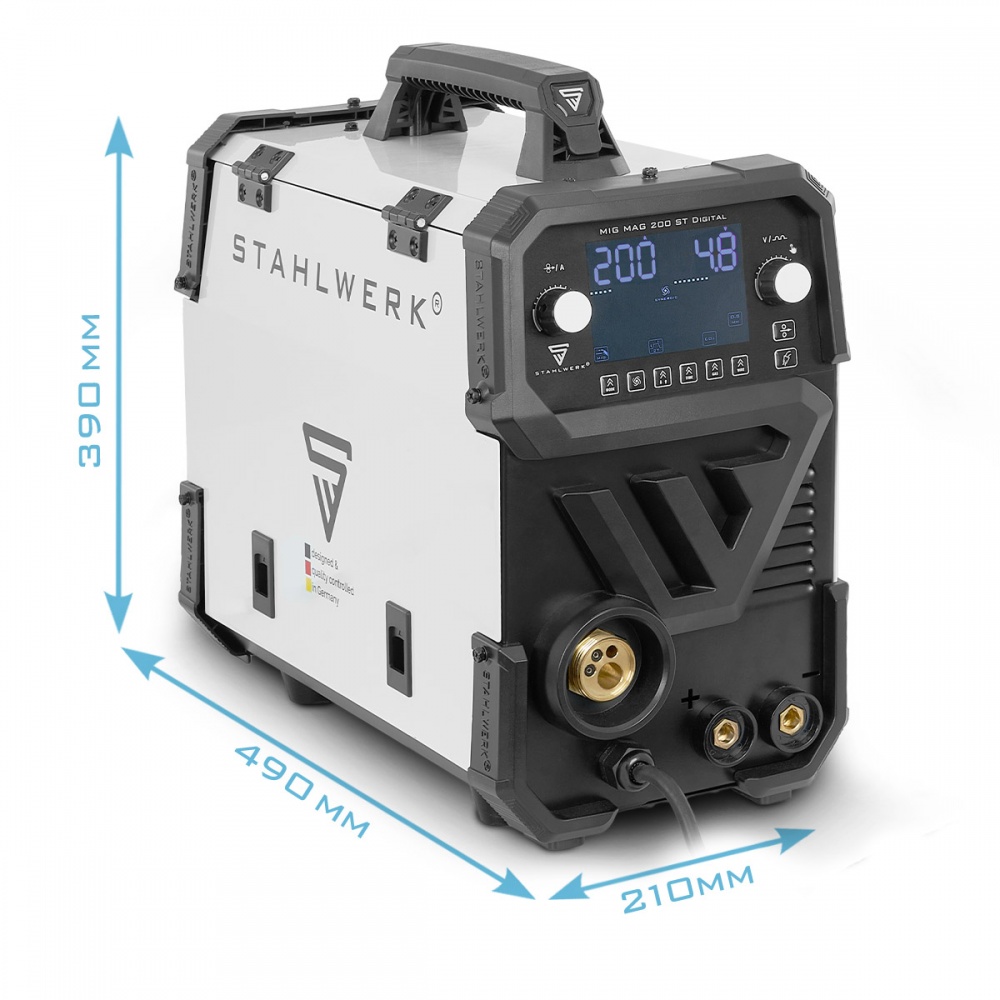

| Sizes | 490 x 210 x 390 |
| Maximal power input | MIG/MAG -32 A / TIG - 25 A / MMA - 35 A |
| Welding current | 20-200 A |
| Weight | 10.9 |
