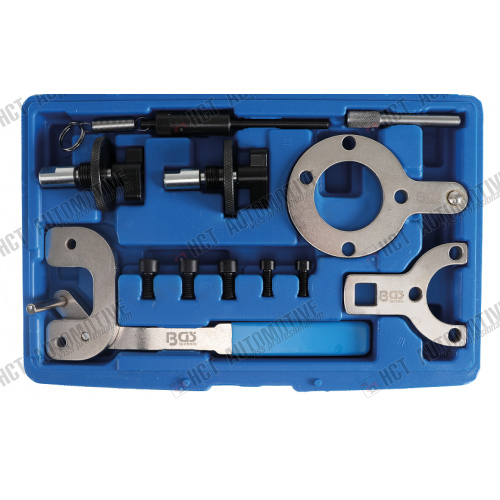

Engine Timing Tool Set for Fiat, Ford, Opel, Suzuki 1.3l Diesel

• for checking and adjusting the engine timing

suitable for the following models:

• Fiat:
  • Punto 1.3 JTD Multi-Jet 188A9.000, manufactured between 2003 and 2007
  • Panda 1.3 JTD Multi-Jet 169A1.000, 188A8.000, manufactured between 2003 and 2009
  • Idea 1.3 JTD Multi-Jet 199A3.000, 188A9.000, manufactured between 2004 and 2006
  • Doblo 1.3 JTD Multi-Jet 188A9.000, manufactured between 2004 and 2006
  • Doblo Cargo 1.3 JTD 188A9.000, manufactured between 2004 and 2006
• Opel/Vauxhall:
  • Agila 1.3 CDTi Z13DT, manufactured between 2003 and 2008
  • Corsa-C 1.3 CDTi Z13DT, manufactured between 2003 and 2007
  • Combo-C 1.3 CDTi Z13DT, manufactured between 2003 and 2009
  • Corsa-D 1.3 CDTi Z13DTH, Z13DTJ, manufactured between 2006 and 2009
  • Astra-H 1.3 CDTi Z13DTH, manufactured between 2004 and 2009
  • Tigra-B 1.3 CDTi Z13DT, manufactured between 2004 and 2009
  • Meriva 1.3 CDTi Z13DT, Z13DTJ, manufactured between 2004 and 2009
• Suzuki:
  • Ingis 1.3 CDTi Z13DT, manufactured between 2003 and 2009
  • Wagon 1.3 CDTi Z13DT, manufactured between 2003 and 2009
  • Swift 1.3 CDTi Z13DT, manufactured between 2003 and 2010
• Ford Ka 1.3 TDCi

scope of delivery:

• counterholding tool for crankshaft pulley, to be used as Fiat Ford OEM 1871000200 - Ford OEM 303-1469 - Opel/Vauxhall OEM KM-662-C
• crankshaft adjustment tool, to be used as Opel / Vauxhall OEM EN 46785 OEM KM 955, Suzuki 09912-38300
• camshaft adjustment tool, to be used as Fiat OEM 1871000900 / 1860985000 - Ford OEM 303-1472, Opel (Vauxhall) OEM EN 46781 - Suzuki OEM 09917-68610
• chain tensioning lever, to be used as Fiat OEM 1870900400
• crankshaft locking tool, to be used as Fiat OEM 1870900300 - Ford OEM 303-1468
• camshaft adjustment tool, Fiat 8 mm
