Gift ideasEngine Timing Kit - for Audi, VW 3.0 TDI

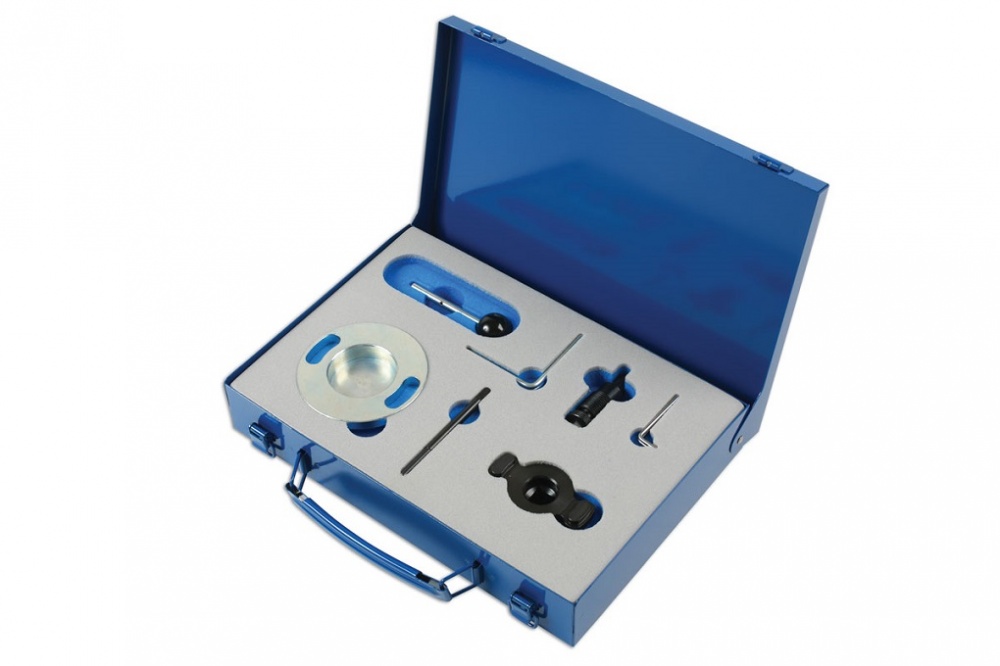

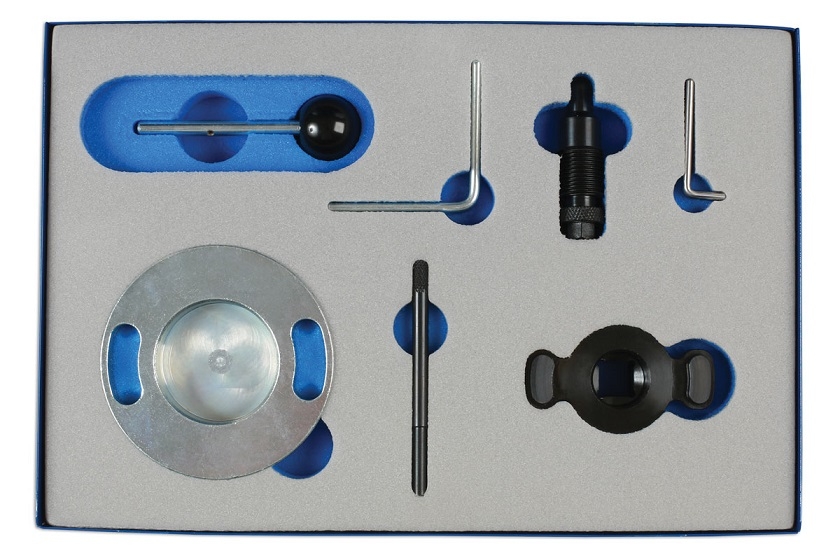

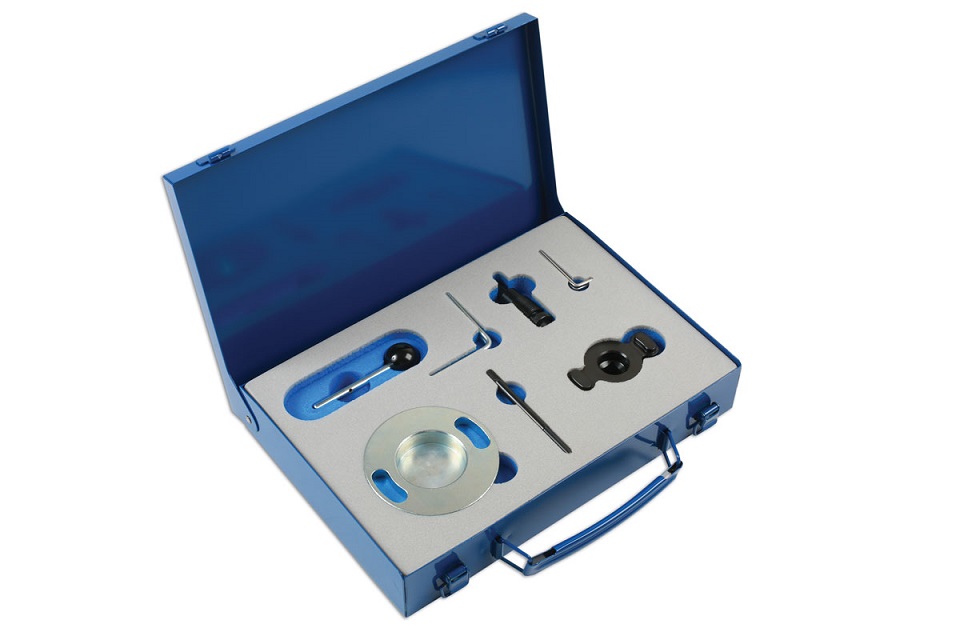

Designed to allow the engine timing to be set and checked on the Audi and Volkswagen 3.0 TDI diesel engines listed. The 7588 is a 7 piece kit which provides all the timing tools required for chain removal, timing checking and setting.
- Applications include: Audi A4, A5, A6, A7, A8, Q5, Q7 and VW Amorak, all from 2014 onwards.
- 3.0L TDI Engine codes: CRTC, CRTD, CRTE, CRTF, CSWB, CVZA, CZVA, CZVB, CZVC, CZVD, CZVE, CZVF, CZZA, CZZB, DCPC, DDVC, DDXA, DDXB and DDXC.
- Equivalent to OEM tools: T10060A, T40310, T40237, T40316, T40245, 3359 and T40049.
| Manufacturer | Model | Range | Year | Engine Codes | |
|---|---|---|---|---|---|
| Audi | A4 | (8W2/8W5/8WC/8WD/8WH/8WJ) | TDI CR, 45 TDI, 50 TDI | 2015 - on | 3,0 TDI CR CRTC CRTD CRTE CRTF CSWB CVMD CVZA CZVA CZVB CZVC CZVD CZVE CZVF CZZA CZZB DCPC DCPE 3,0 TDI MHEV DDVB DDVC DDVE DDVF DEWA DEWB DHXA DHXB DHXC 4,0 TDI CR CZAC 4,0 TDI MHEV CVXB DHVA DMVA |
| A5 | (F57/F53/F5A/F5E/F5P/F5F) | TDI CR, 45 TDI, 50 TDI | 2016 - on | ||
| A6 | (4GC/4GD/4GJ) | TDI CR | 2014 - 2018 | ||
| A6 | (4A2/4A5/4AH) | 45 TDI, 50 TDI, 55 TDI MHEV | 2018 - on | ||
| A7 | (4GF) | TDI CR | 2014 - 2018 | ||
| A7 | (4KA) | 45 TDI, 50 TDI, 55 TDI MHEV | 2018 - on | ||
| A8 | (4N2/4N8) | TDI CR, 45 TDI, 50 TDI, 60 TDI MHEV | 2017 - 2022 | ||
| Q5 | (FYB) | TDI CR, 45 TDI, 50 TDI | 2017 - 2020 | ||
| Q7 | (4MB/4MG) | TDI CR, 45 TDI, 50 TDI MHEV | 2015 - on | ||
| Q8 | (4MN) | 40 TDI, 45 TDI, 50 TDI MHEV | 2019 - on | ||
| S4 | (8W2/8W5/8WC/8WD) | TDI MHEV | 2019 - on | ||
| S5 | (F53/F5P/F5A/F5F) | TDI MHEV | 2019 - on | ||
| S6 | (4A2/4A5) | TDI MHEV | 2019 - on | ||
| S7 | (4KA) | TDI MHEV | 2019 - on | ||
| SQ5 | (FYB) | TDI MHEV | 2019 - 2020 | ||
| SQ7 | (4MB/4MG) | TDI CR, TDI MHEV | 2016 - on | ||
| SQ8 | (4MN) | TDI MHEV | 2019 - on | ||
| Manufacturer | Model | Range | Year | Engine Codes | |
|---|---|---|---|---|---|
| Volkswagen | Amarok | (S6B/S7B) | 2016 - 2021 | 3,0 TDI CR CVMD DDXA DDXB DDXC DDXD DDXE DENA DEND 4,0 TDI CR DMVB |
|
| Touareg | (CR7) | 2018 - on | |||
