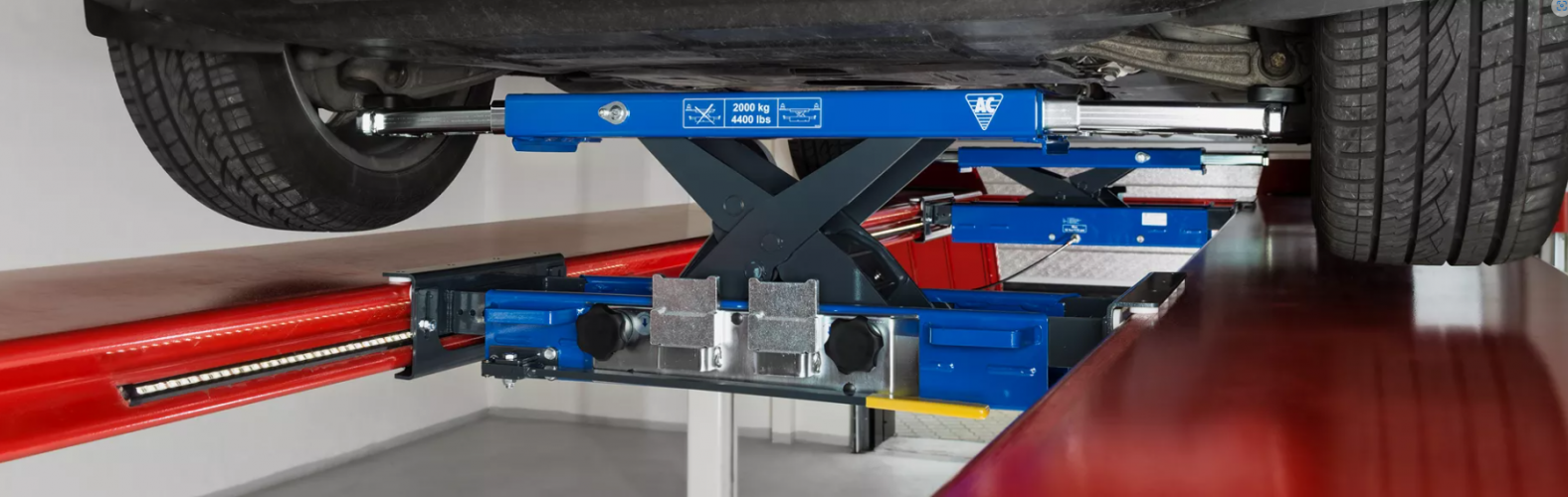

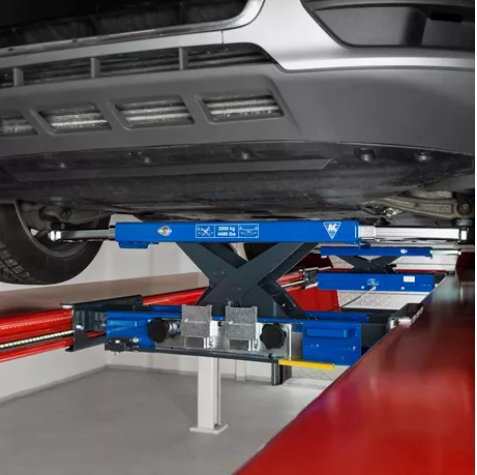

AIR HYDRAULIC JACKING BEAM FOR PASSENGER CARS AND VANS
AIR HYDRAULIC JACKING BEAM FOR PASSENGER CARS AND VANS
Quick and efficient lifting due to reliable and noiseless pump
Low closed height of only 180 mm makes it suitable for vehicles with a low clearance
Flexible top support beam can be extended up to 1610 mm
Two-hand lowering operation with dead man’s release, automatic safety locking device and overload valve for optimum safety
-
FITS ALL LIFTS AND PITS
Unique height adjustable mounting bracket system – designed to fit all current lifts and pits
-
MATCH YOUR LIFT OR PIT
The mounting brackets are not a part of the product and must be ordered separately. Please always state lift type to get the correct support arms.
-

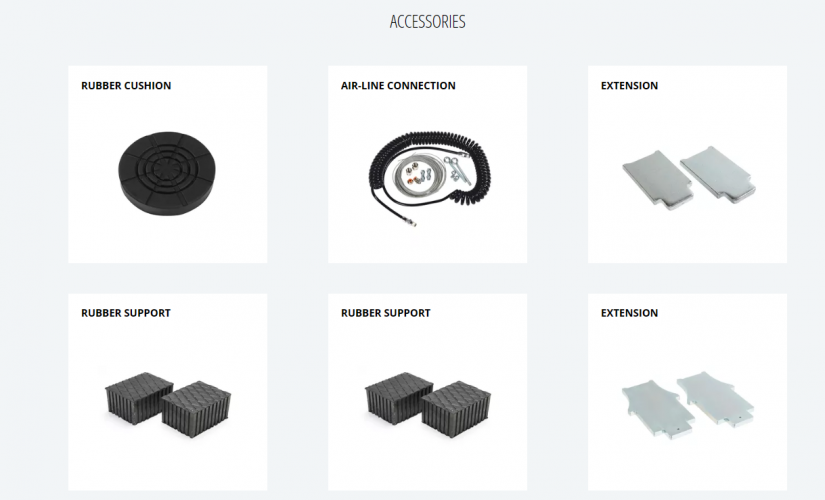

STANDARD ACCESSORIES
Supplied with 3 extension sets (10/40/85 mm) and rubber cushion for protection of car body
Parameters

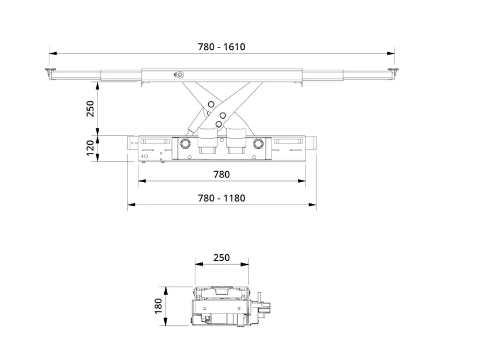

Outer leg width | 780-1180 mm |
Upper height | 250 mm |
Brochure | SD20PHL |
Capacity | 2000 kg |
Air consumption | 400-700 L/min |
Air pressure | 8-10 bar |
Min. height | 180 mm |
Scissor jack lifting height | 250 mm |
Post height | 120 mm |
Weight | 110 kg |
