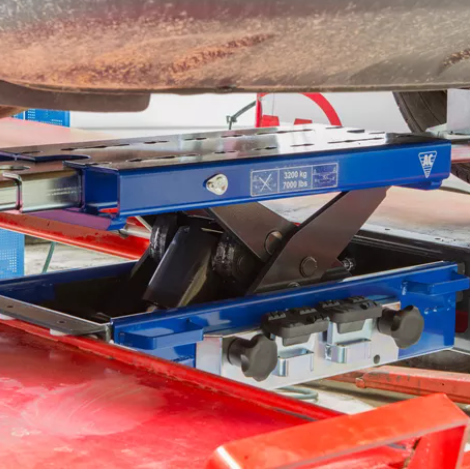

AIR HYDRAULIC JACKING BEAM FOR PASSENGER CARS AND VANS
AIR HYDRAULIC JACKING BEAM FOR PASSENGER CARS AND VANS
Low minimum height of 230 mm
Flexible top support beam can be extended up to 1610 mm
Two-hand lowering operation with dead man’s release, automatic safety locking device and overload valve for optimum safety
-
FITS ALL LIFTS AND PITS
Unique height adjustable mounting bracket system – designed to fit all current lifts and pits
-
MATCH YOUR LIFT OR PIT
The mounting brackets are not a part of the product and must be ordered separately. Please always state lift type to get the correct support arms.
-

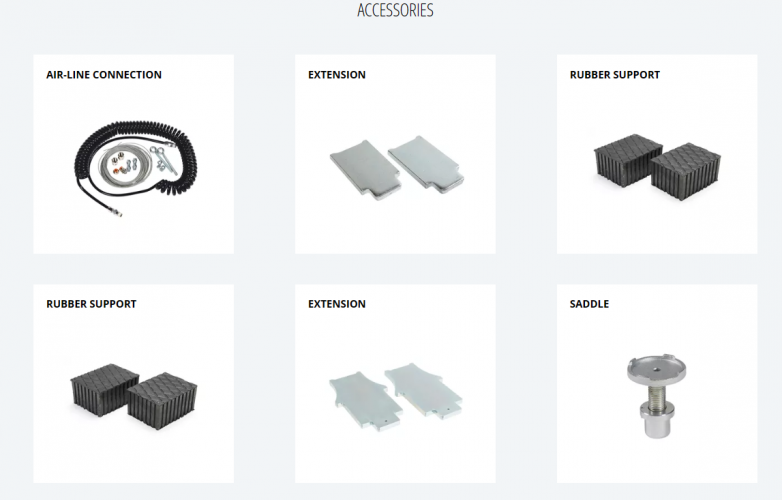

STANDARD ACCESSORIES
Supplied with 3 extension sets (10/40/85 mm) and rubber cushion for protection of car body

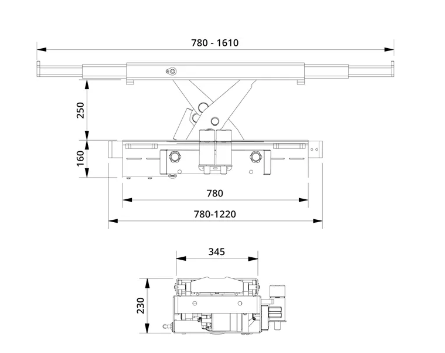

Parameters
Outer leg width | 780-1220 mm |
Upper height | 345 mm |
Brochure | SD32PHL |
Capacity | 3200 kg |
Air consumption | 400-700 L/min |
Air pressure | 8-10 bar |
Min. height | 230 mm |
Scissor jack lifting height | 250 mm |
Post height | 160 mm |
Weight | 175 kg |
