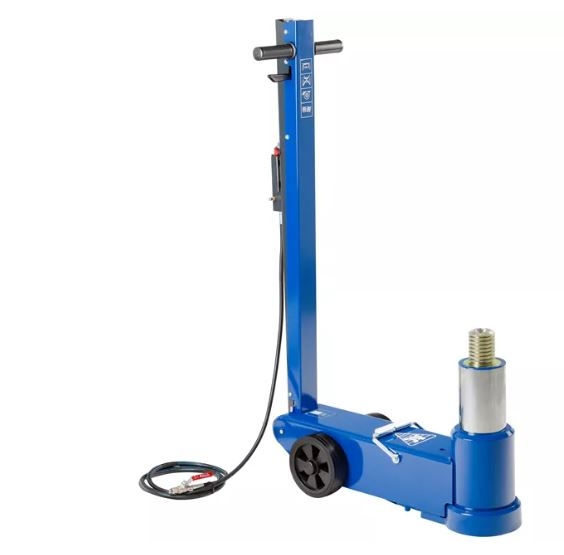

AIR HYDRAULIC AIRCRAFT JACK

code: 65-1AP

out of stock

compare

_€3883⁰⁰Without VAT 3209.09 €

Price includes VAT 21%

The jack can be operated by either compressed-air, nitrogen from the aircraft wheels or a mobile nitrogen service cart

Rapid ram retraction without load

Fitted with extension screw (80 mm) for optimum use of the stroke

Designed and manufactured according to the aircraft standards: EN 1915-1, EN 1915-2 and EN 12312-19

SAFETY

Safety features include manual lowering valve, safety overload valve and dead mans release
EASY MANOEUVRABILITY

Compact and slim design for easy operation and manoeuvrability
ERGONOMIC

Ergonomic handle with push button

Parameters

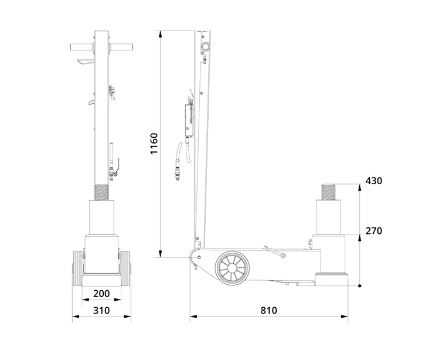

Brochure	air-hydraulic-jack-65-1ap-drawing.pdf
Capacity	65000 kg
Air flow	350 l/min
Air pressure	8-10 bar
Overall length	810 mm
Overall width	310 mm
Max. height	430 mm
Min. height	270 mm
Width between wheels	200 mm
Handle length	1160 mm
Weight	85 kg
