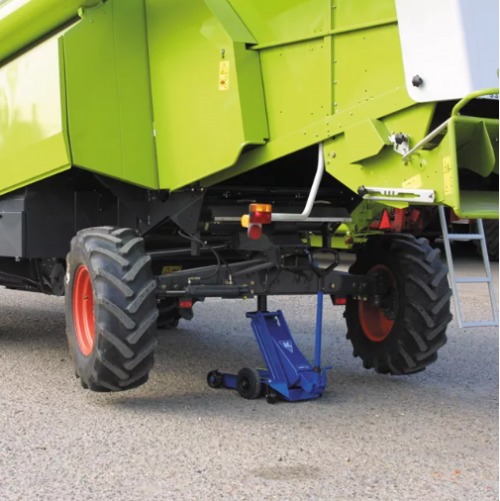

JACK FOR TRUCKS, AGRICULTURAL MACHINERY & CONTRACTORS’ MACHINES
JACK FOR TRUCKS, AGRICULTURAL MACHINERY & CONTRACTORS’ MACHINES
Low minimum height of only 140 mm

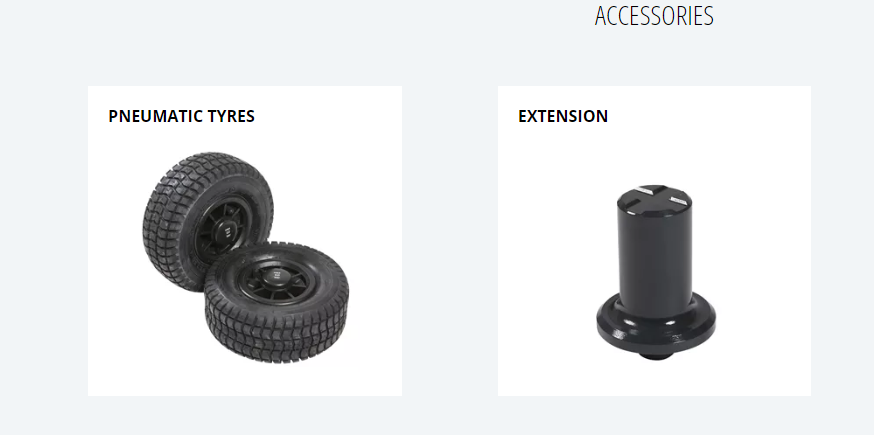

Can be fitted with pneumatic tyres for easy manoeuvring (option)
Wide and robust frame made of high-strength steel
Fitted with quick-lift pedal for easy reach of lifting point
-
PRECISE AND SAFE
Precise and safe control whilst lowering
-
DEAD MAN’S RELEASE
Manual dead man’s release for optimum safety when lowering
-
SAFETY
Built-in safety overload valve
-
ERGONOMICS
Ergonomically designed handle ensuring positive and safe operation

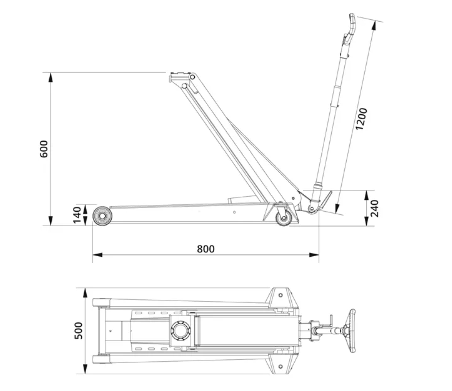

Parameters
Brochure | DK60Q |
Capacity | 6000 kg |
Total height | 240 mm |
Overall length | 800 mm |
Overall width | 500 mm |
Max. height | 600 mm |
Min. height | 140 mm |
Handle length | 950 mm |
Weight | 95 kg |
