“Quad”-bike, lawn mower and snowcat lift
- Access vent for underbody jobs
- Mechanical safety device
- Hydraulic safety device: in case of failure of hydraulic mose
- Hydropneumatic pump
- Electro-hydraulic power unit
- Additional central drive on/off ramp for vehicles with central front wheel

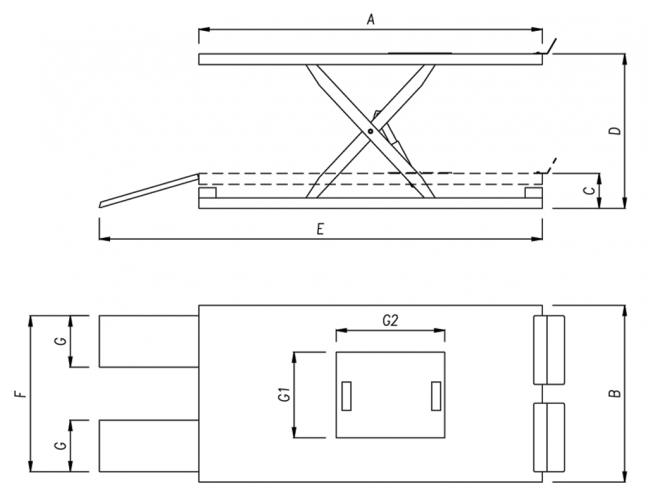

Parameters
| Height | 200 mm |
| Capacity | 600 kg |
| Length of the pallet of the pull-out platform | 900 mm |
| Extendable platform pallet width | 535 mm |
| Overall length | 2790 mm |
| Max. height | 1030 mm |
| Platform length | 2300 mm |
| Weight | 270 kg |
