Multifunkcionāls kompakts metināšanas invertors TIG/ MMA/ Plasma

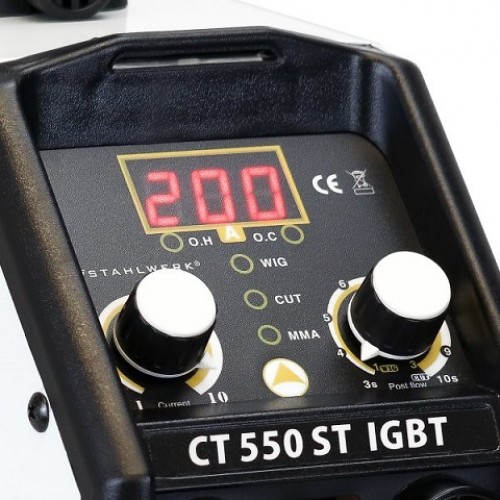

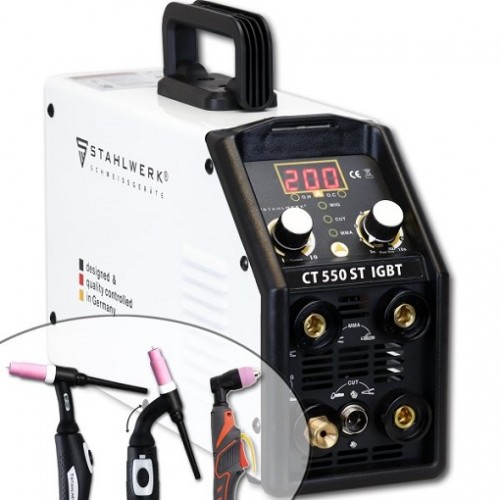

STAHLWERK CT550 ST - combined TIG/MMA welder with plasma cutter up to 12 mm cutting power, 200 Amp TIG/MMA + 50 Amp CUT.
- DC TIG welding – Direct current (DC). Welding of almost all materials such as steel, stainless steel, copper and many more.
- Plasma/CUT – With electricity, a plasma jet is generated, which melts the material, which is then removed with compressed air. So all conductive metals such as e.g. steel, stainless steel, copper, aluminum, titanium and many more can be cut precisely.
- Cutting power - Dividing cuts are possible depending on material up to 12 mm. Structural steel ST37 up to 12 mm, V2A or V4A up to 8 mm, aluminium up to 5 mm.
- 3 in 1 combined device – TIG and MMA welding up to 200A, plasma cutting up to 50A.
- IGBT Technology – latest transistor technology enables highest power and a duty cycle of 60% at full power. No transformer, no MOSFET, modern IGBT.
- Lightweight & compact design – With a weight of only 5,7 kg and dimensions of 360 x 120 x 225 mm, the device is ideal for welding work anywhere. Innovative IGBT transistors save space and weight compared to the old MOSFET technology. No heavy carrying!
Parametrai
Aizsardzības klase (IP) | 21 |
Elektrobarošana | 230/1 V/fāze |

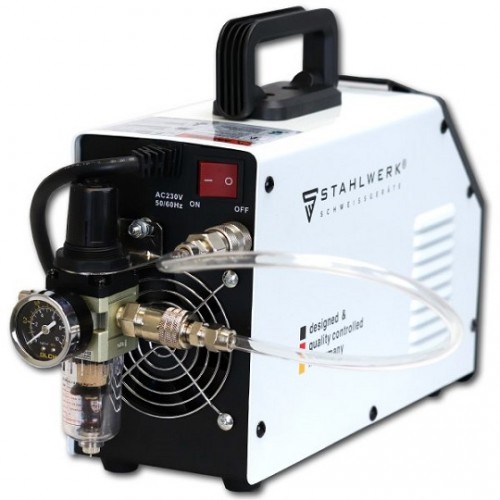

Gaisa plūsma | min. 100 L/min |
Gaisa spiediens | min. 4 bar |
Griešanas strāva | 15 - 50 A |
Izmēri | 360 x 120 x 225 mm |
Maksimālā ieejas strāva | 41,7 A |
Metināšanas strāva | 30 - 200 A |
Noslodzes cikli | TIG/MMA: 60 % - 200 A / 100 % - 155 A. Plazma: 60 % - 50 A / 100 % - 38 A |
Svars | 5,7 kg |
