Hidrauliskais motoru izcelšanas krāns 1t

Workshop crane foldable / motor hoist / garage crane

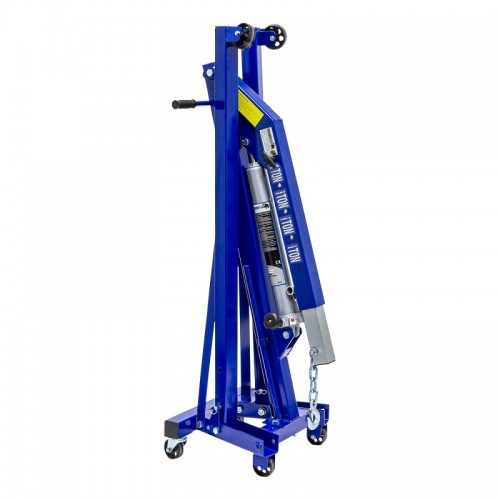

This Mammuth engine crane is extremely suitable for (dis)assembling engine blocks, but is also often used for lifting and moving other heavy objects. The arm of the crane can be locked in four different positions: 250kg, 500kg, 750kg and 1000kg. The locking pin has a handy handle.
The hoist is equipped with a rotary knob to lower the arm, which ensures high ease of use and extra safety.
Furthermore, the crane is foldable and therefore easy to store.

Specifications:

• capacity position 1 = 1000kg

• capacity position 2 = 750kg

• capacity position 3 = 500kg

• capacity position 4 = 250kg

• height range position 1 = 2530mm

• height range position 2 = 2600mm

• height range position 3 = 2670mm

• height range position 4 = 2740mm

• total length support arm position 1 = 1060mm

• total length support arm position 2 = 1150mm

• total length support arm position 3 = 1240mm

• total length support arm position 4 = 1330mm

• height of the legs = 160mm

• distance between legs at widest point = 910mm

• dimensions folded = 580 x 485 x 1500mm
