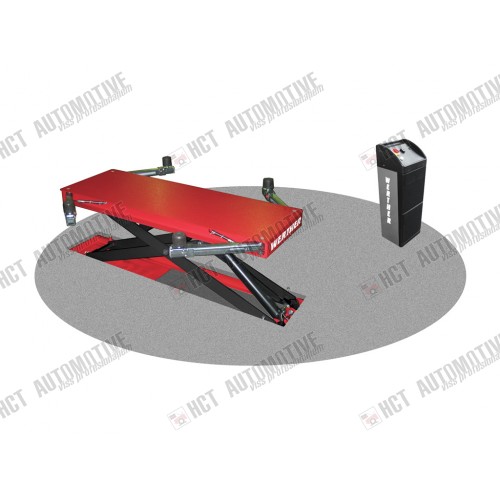

Elektrohidraulisks šķērveida auto pacēlājs auto virsbūvju remontam
- “Dead man” controls 24V
- Electrical safety devices
- Hydraulic and mechanical safety devices with pneumatic release
- Suitable for recessed installation in bodyshop spraybooths, grids and preparing areas
- Complete with pre-mounted hydraulic pipes enabling the installation of the control unit at max 5 mt
- Closing height from the ground can be adjusted according to the deepness of the grid
- Equipped with 4 rubber pads, h = 40mm
- “Buzzer” on last portion of descent
- Version with manually adjustable arms
Parametrai
Celtspēja | 3000 kg |
Elektrobarošana (Hz) | 230-400V/50 Hz |
Max. augstums | 1700 mm |
Motora jauda | 1,75 kW |
Pacelšanas laiks | 40/50 s |
Svars | 650 kg |
