Elektrohidraulisks divstatņu pacēlājs
- Asymmetric lift without baseframe for greater space free area at work
- Equipped with two lifting rams which do not require maintenance. Non-bearing cables for perfect synchronisation of the trolleys no matter what distribution weight is loaded

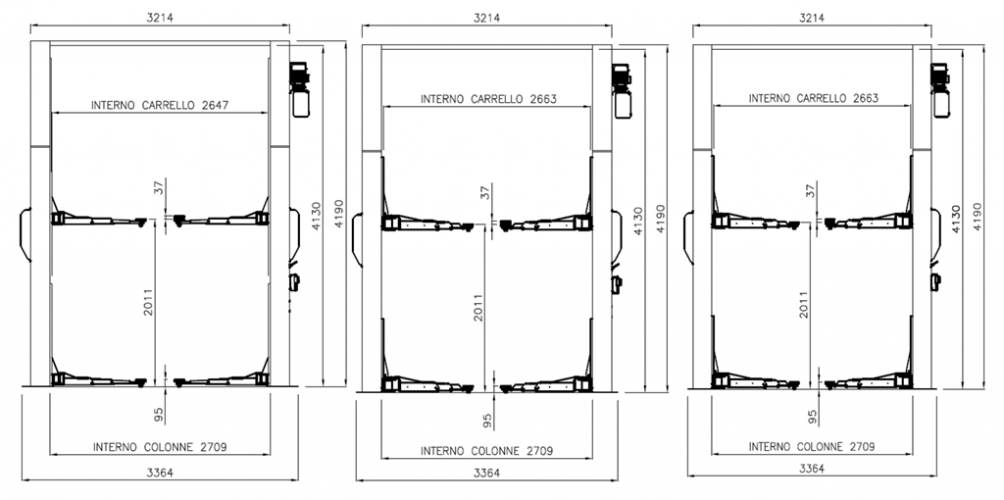

- 210I/32BLUX – 210I/42BLUX: Designed with 4 short, super lowered three-stage arms with profile parallel to the floor for the asymmetric lifting of wide low profile vehicles. Pads min. height 95 mm only
- 210I/42SMBLUX: 4 extended three-stage arms: ideal for lifting vans and long wheel based vehicles, whilst perfect for standard vehicles. Pads minimum height 95 mm only
- Overload valve and safety valve tin case of hydraulic hose failures
- Descent velocity controlled by means of hydraulic valve
- Mechanical support device with automatic activation and deactivation by means of electromagnetic valve insuring maximum safety during locking procedures
- Operation: electro-hydraulic
Параметры
Грузоподъемность | 4200 kg |
источник питания | 230-400V/50 Hz |
Макс. высота | 2011 mm |
Мощность мотора | 2,2 kW |
Время подъема | 37 s |
Bес | 715 kg |
