Elektrohidrauliskais mobilo kolonnu pacēlājs ar bezvadu vadības sistēmu
Features

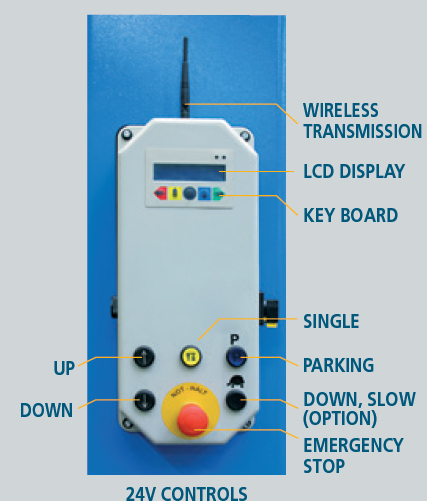

- Control panel available on each column
- All columns are identical
- Configuration sets: 4-6-8 columns
- Mechanical locking system/parking
- Wireless 2.4 GHz communication among columns
- Automatic selection of transmission channel with display indication
Operation Modes
All - Simultaneous operation of all columns.
Group
Simultaneous operation of selected pairs of columns.
Single
Single column operation.
Operation Modes
Synchronization at a height difference of 30 mm.
Control board according to ISO standards 13849.
Параметры
Грузоподъемность | 4x5.5 kg |
Макс. диаметр колеса | 1200 mm |
Мощность мотора | 4x0.8 kW |
Время опускания | 45 s |

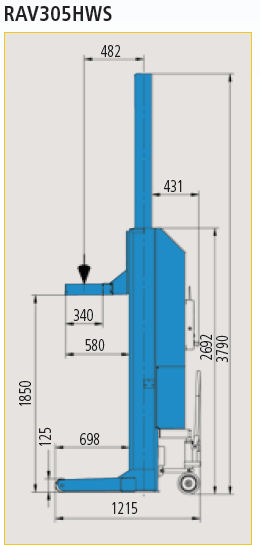

Высота подъема | 1761 mm |
Время подъема | 120 s |
