Pneimohidrauliskais grīdas domkrats, kas parvietojas pa sliedēm. Plāns un kompakts dizains ar pārvietojamu cilindru.
AIR HYDRAULIC FLOOR PIT JACK RUNNING IN RAILS. SLIM AND COMPACT DESIGN WITH TRAVERSING RAM

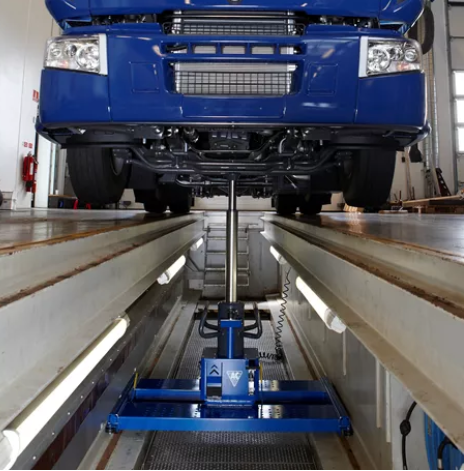

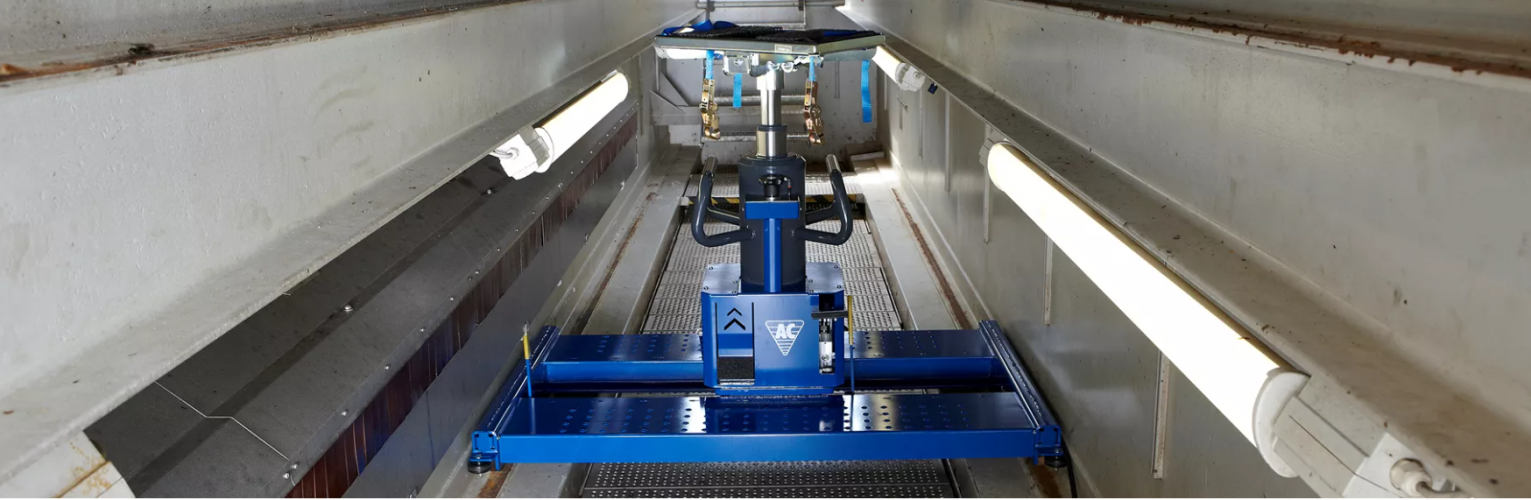

Traversing ram ensures a wide reach under the vehicle and enables the mechanic to move freely back and forth in the pit
Base frame wheels fitted with bearings for optimum manoeuvrability
Ideal for dismounting and re-mounting of gearboxes
Rapid and precise air hydraulic unit with high speed ram travel
-
MANUAL FOOT PUMP
Built-in manual foot pump for easy and precise adjustment
-
HEAVY LOAD SUPPORT
Spring loaded wheel support prevents unintended movements when lifting more than 800 kg
-
SAFETY
Dead man’s release and overload valve for optimal safety
Параметры

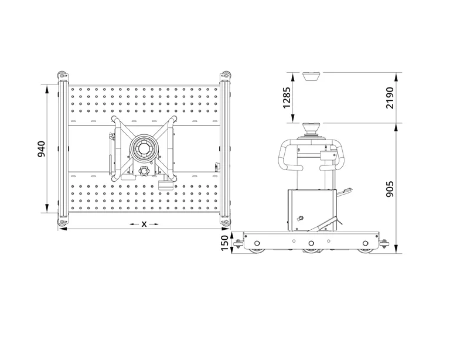

Наружный диаметр цилиндр | 60 mm |
Брошюра | GGD150S |
Грузоподъемность | 15000 kg |
движение цилиндра | 1285 mm |
Давление воздуха | 8-10 bar |
максимальная глубина | 940 mm |
Макс. высота | 2190 mm |
Мин. высота | 905 mm |
Ширина платформы | atbilstoši bedres platumam mm |
Bес | 250 kg |
