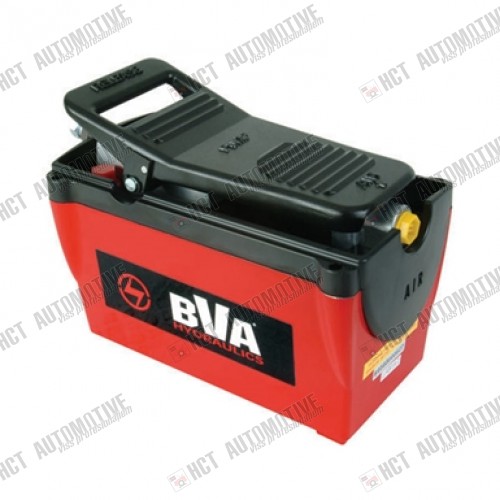

Air Hydraulic Pump 2000cc
High Strength reinforced alloy aluminium reservoir is lightweight and corrosion resistant.
• Internal pressure relief valve for overload protection.
• Suggested air pressure range: 8-14 bar.
• Designed to be used with single acting cylinders.
• Dust cover protection for the release control valve.
• Dual stage release valve.
• Model PA2000 features high pressure, high flow performance.
• Maximum working pressure: 700 bar (10,000 psi).
Parameters
Oil capacity | 2000 ml |
Air pressure | 8 - 12 bar |
Sizes | 294 x 207 x 152 mm |
Max. Working Pressure | 700 bar |
Weight | 9.1 kg |
