Gift ideasAutomotive multimeter+inductive clamp
- specially developed high quality multimeter for automotive and commercial electrics and electronics
- with enhanced function for rpm measurement
- ignition timing ascertainment up to 8-cylinder engines possible (Dwell function)
- dual LCD display with digital display and bar diagram display (32 segment bar graph)
- with automatic overflow and polarity indication
- with safety mechanism for V, µA/mA/A, therefore incorrect connection is impossible
- central 23-digit rotary switch
- with automatic area selection
- large LCD display with 3.1/2-digit, high-contrast display with background lighting
- with integrated glass fuse 250V (500 mA) – 20 x 5 mm to protect the circuits

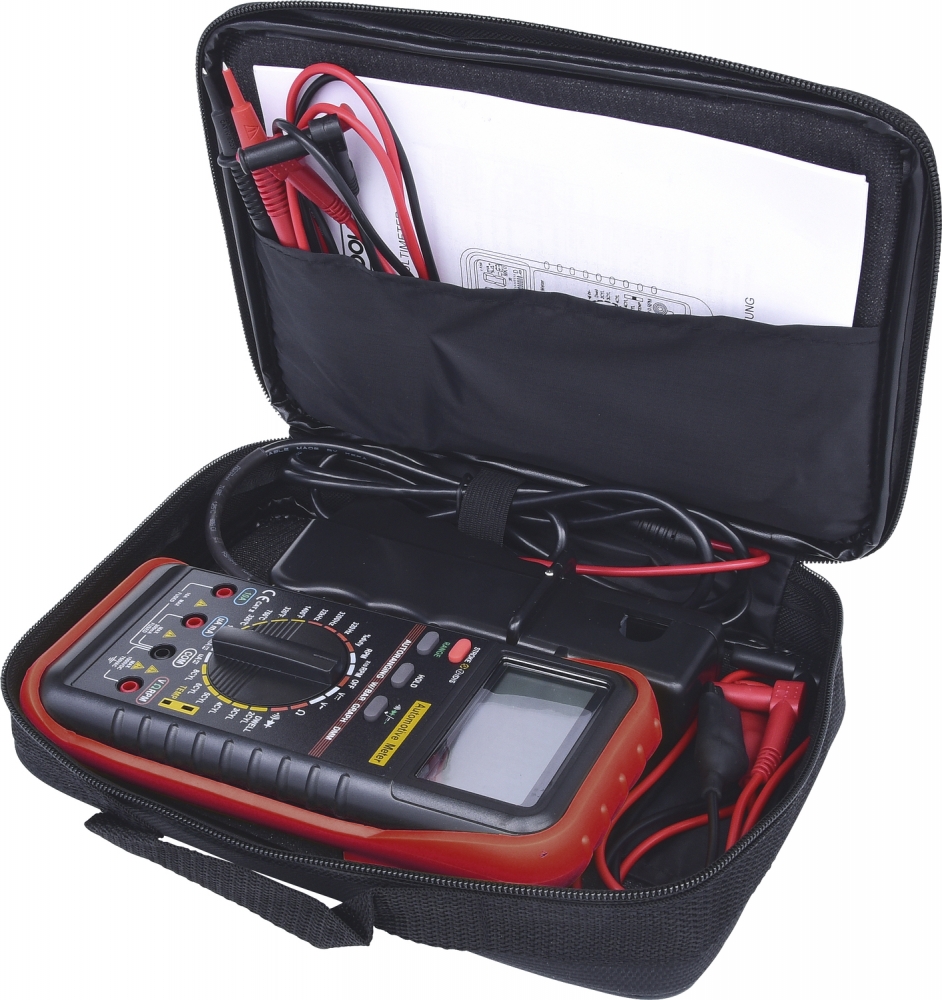

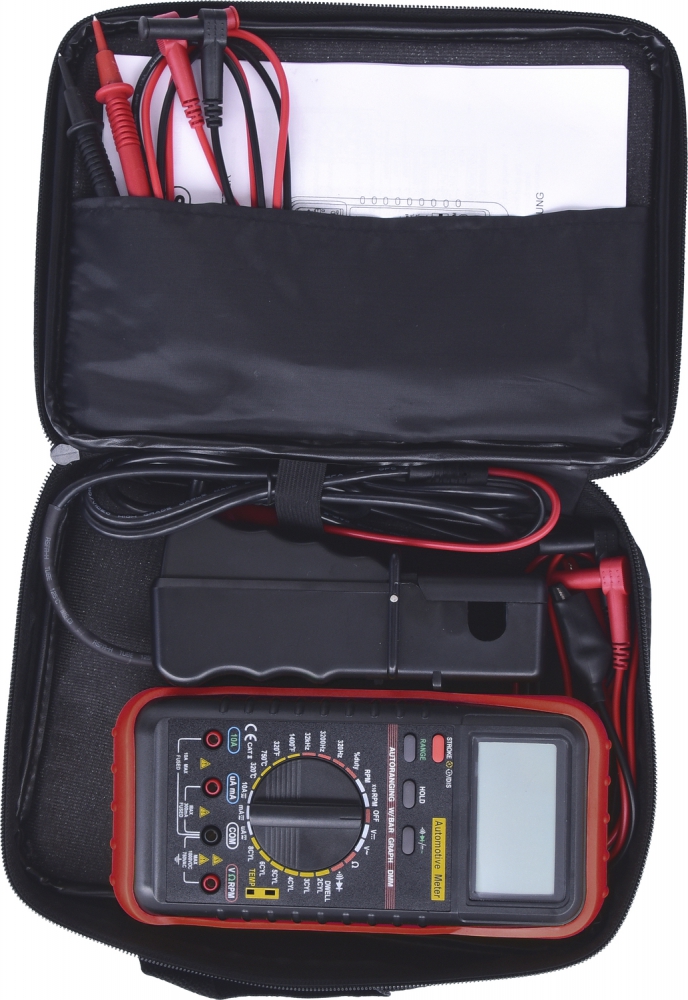

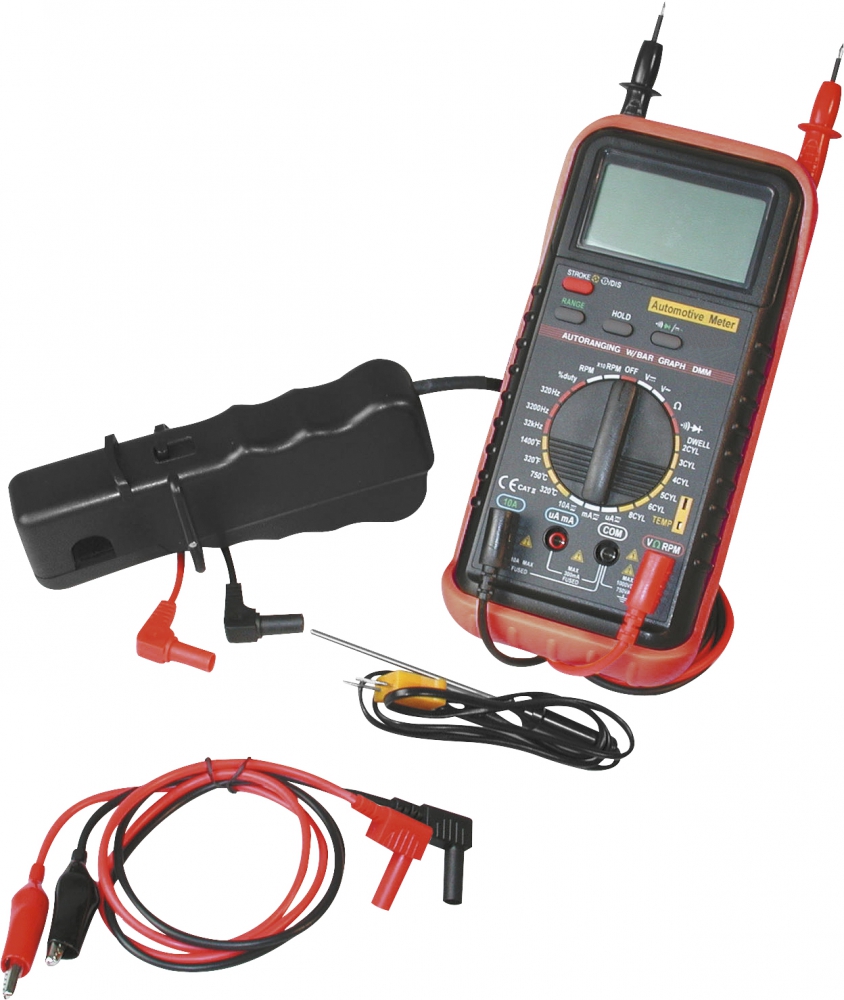

- includes measuring line set with test prods, crocodile clamps, inductive clamp and temperature probe
- with on/off switch and automatic temperature shutdown

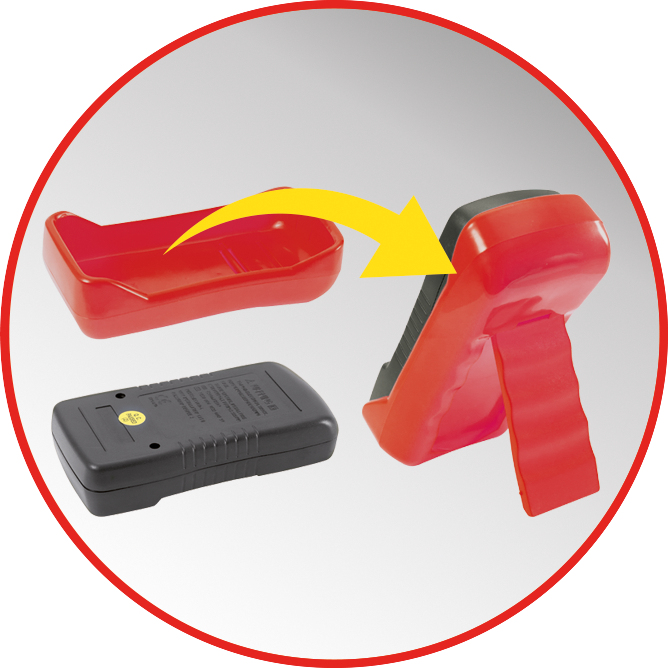

- with fold out adjustable foot in protective rubber holster
- sturdy plastic housing
Functions:
- DC and AC voltage measurement
- DC and AC current measurement
- Resistance measurement
- Dwell
- Diode test (with acoustic signal)
- RPM measurement
- Temperature-automatic shutdown
- Frequency measurement
- Battery check indicator
- AC voltage: 3,26 V - 750 V

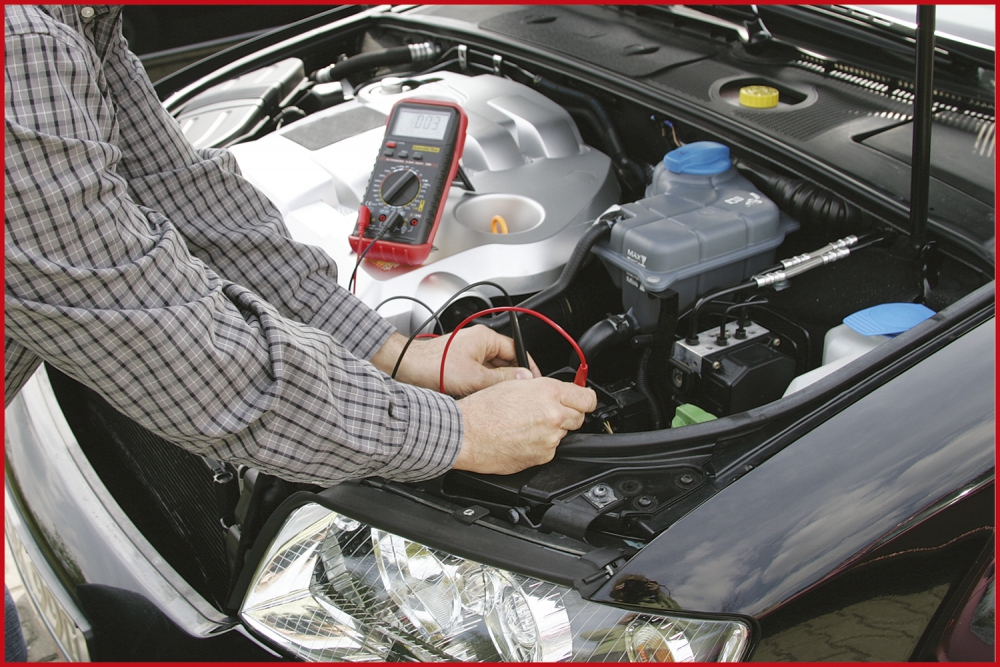

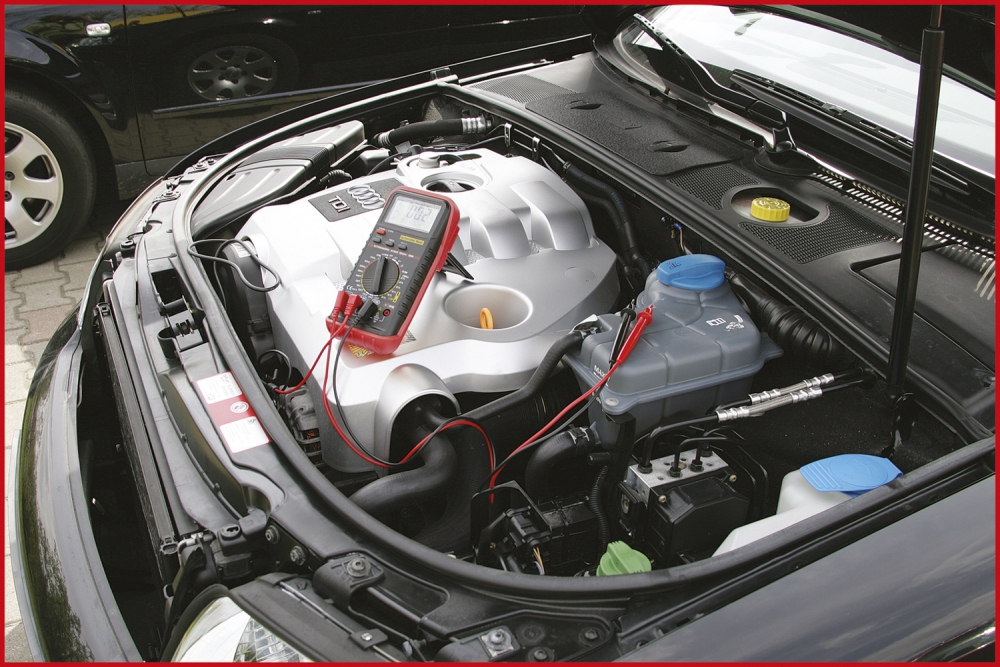

- Application in general: automobile
- Battery composition: Alkali-Mangan (Alkaline)
- Battery included: Yes
- Battery rechargeable: No
- Battery type: 9V
- co-current flow: 326 µA - 10 A
- DC voltage: 326 mV - 1000 V

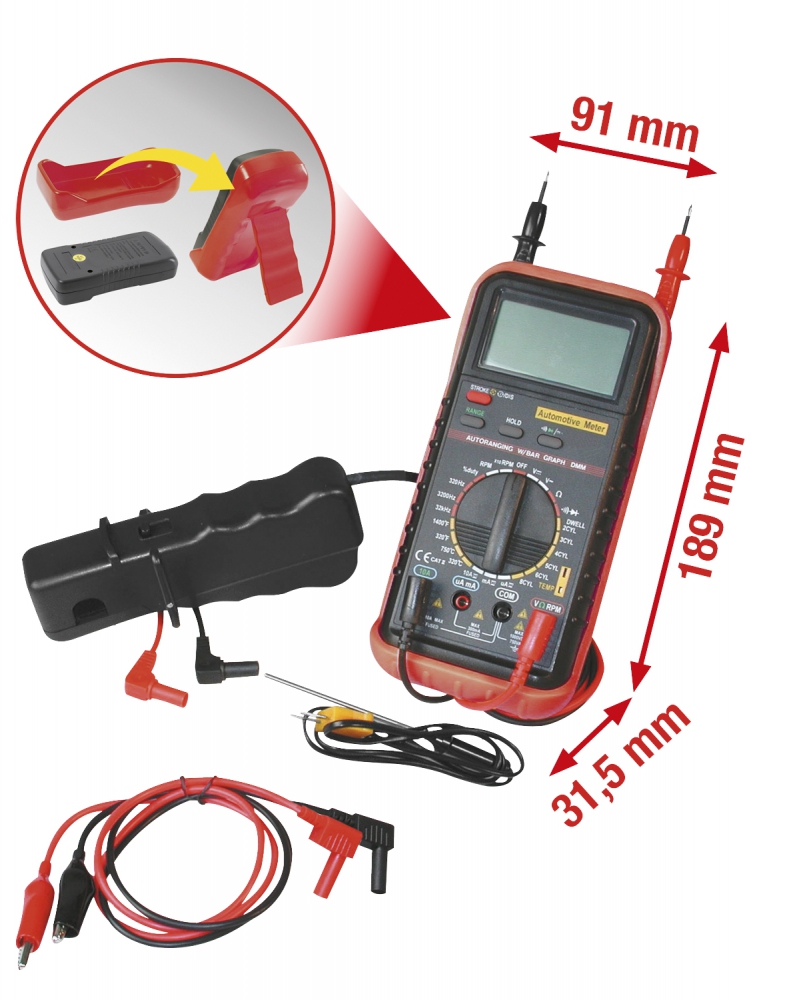

- Depth in mm: 31.5 mm
- Frequency measuring: 32,60 - 200 kHz
- Function attribute 1: hold functions
- Fuse protection S1 (fine flow): 500mA/350V (20x5mm)
- Fuse protection S2 (power-test socket ): 10A/250V (30x5mm)
