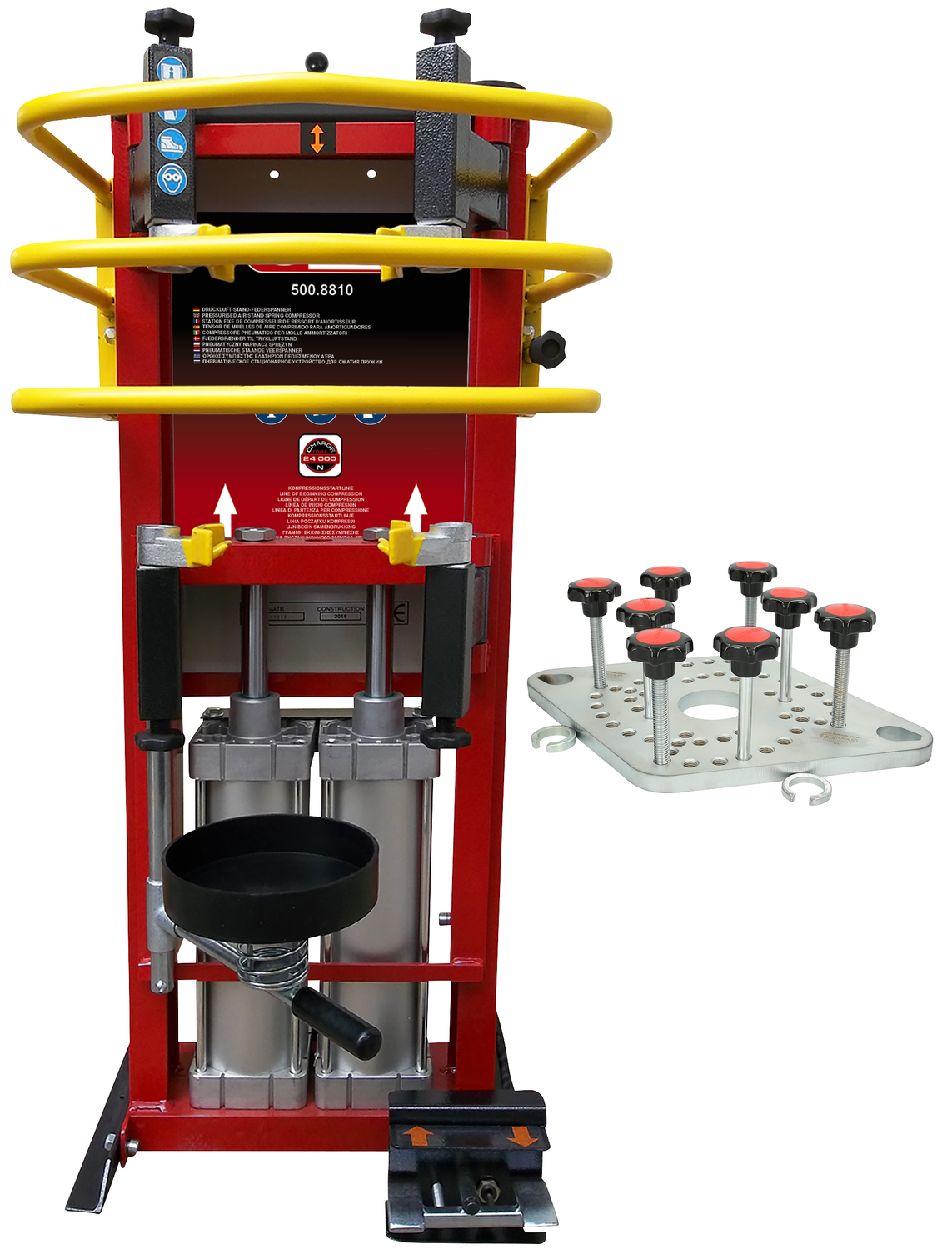

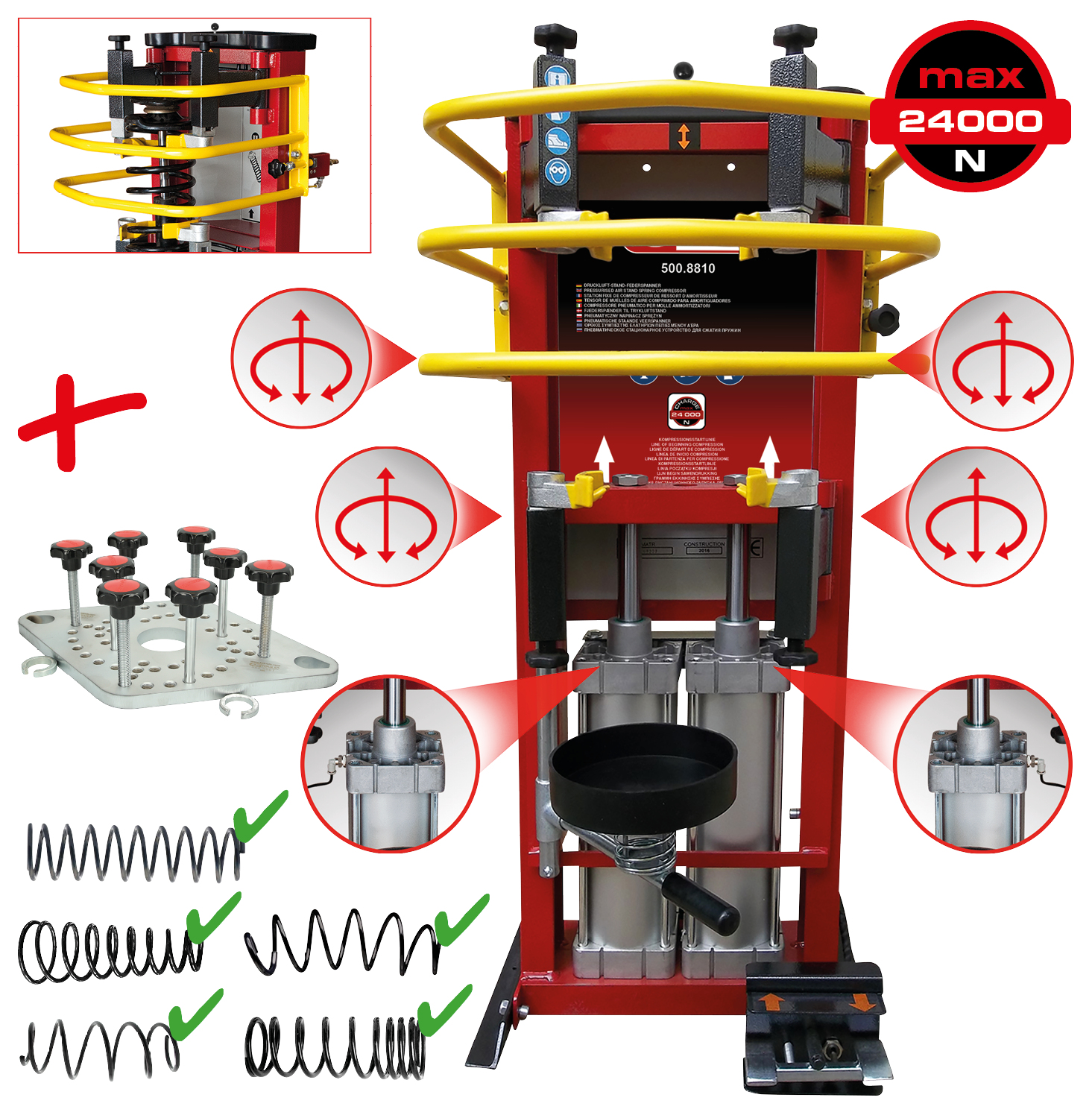

- working pressure 1,200 kg by 5 bar, 2,400 kg by 10 bar
- through double cylinder with up to 2,400 kg also suitable for strong springs (transporters, SUV, etc.)
- ideal for tensioning spring feet
- pressurised air support allows for extremely comfortable working
- secure assembly and disassembly of the shock absorbers with McPherson spring feet system
- suitable for 95% of all vehicles on the market
- robust safety cage to prevent accidents
- sturdy foot for optimal stability
- secure and easy to use
- special tool steel
- Air consumption in l/min: 250 l/min
- Compression force max (kg): 2400 kg
- Compression stroke (mm): 450.0 mm
- Connection thread: 1/4"
- Height in mm: 1200.0 mm
- Manufacturer no: 500.8815
- Material1: special tool steel
- Operating pressure max (bar): 10 bar
- Parts in the set: 2 pcs
- Total length mm: 400.0 mm
- Weight [g]: 98600 g
- Width in mm: 500.0 mm
PDF Resources
DF-DOK_PRO_ALG_CE_500.8810_SALL_AQU_V1.pdf
