- additional spindle for extension (not in 30 and 50 t executions)
- two piece lever arms
- For high load capacity
- suitable for narrow spaces
- high level of stability
- overload protection through pressure relief valve
- Safety Bypass technology prevents oil leaks
- ideally suited for daily workshop use
- From 15 t version equipped with carrying handle
- heavy steel construction

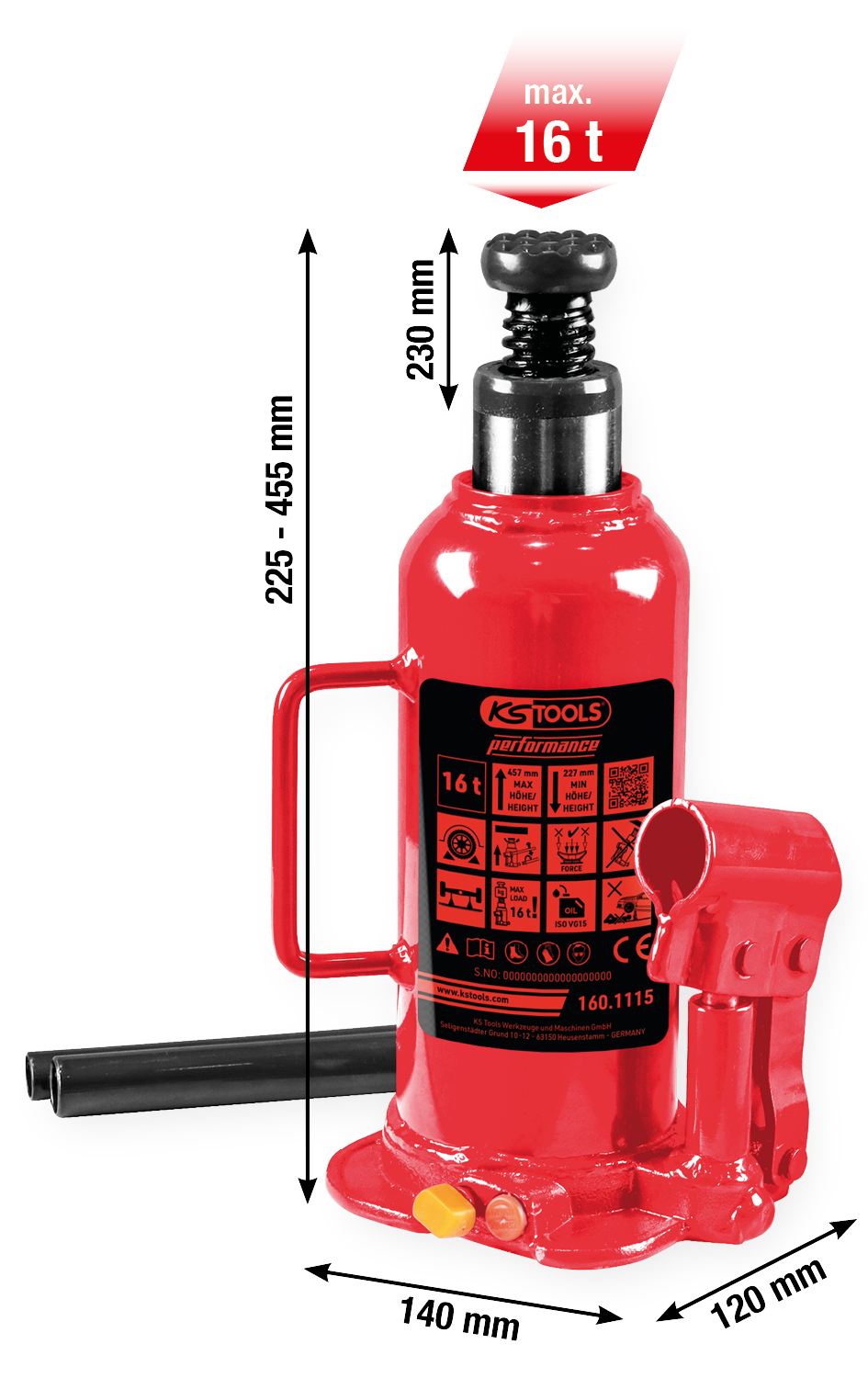

- Base plate dimensions in mm: 140 x 120 mm
- Function attribute 1: hydraulic
- Height in mm: 225 mm
- Lift height max mm: 455 mm
- Lift height min mm: 225 mm
- Load capacity in kg: 16000 kg
- Manufacturer no: 110424
- Material1: steel
- max. Capacity: 16,0 t
- max. height mm: 455 mm
- min. height mm: 225 mm
- Stroke way mm: 230 mm
- Total length mm: 140 mm
- Weight [g]: 6700 g
- Width in mm: 120 mm
PDF Resources
DF-DOK_PRO_ALG_EXPL_160.1115_SALL_AQU_V1.pdf
