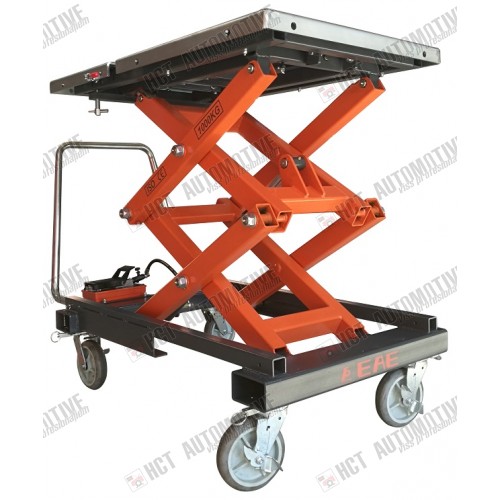

Mobile Lifting Table 1t

Designed for dismantling and fixing battery packs of electric vehicles as well as engine, gearbox, drive axle, fuel tank, suspension, bracket and chassis components of
traditional vehicles.

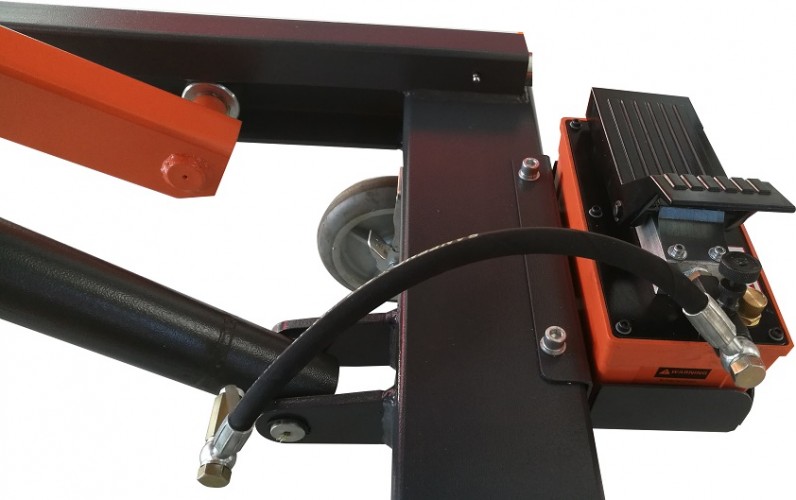

Control and power by foot activated pneumatic driven
hydraulic pump.
The working table can be tilted by adjusting two
independent screws attached with T shape handle.

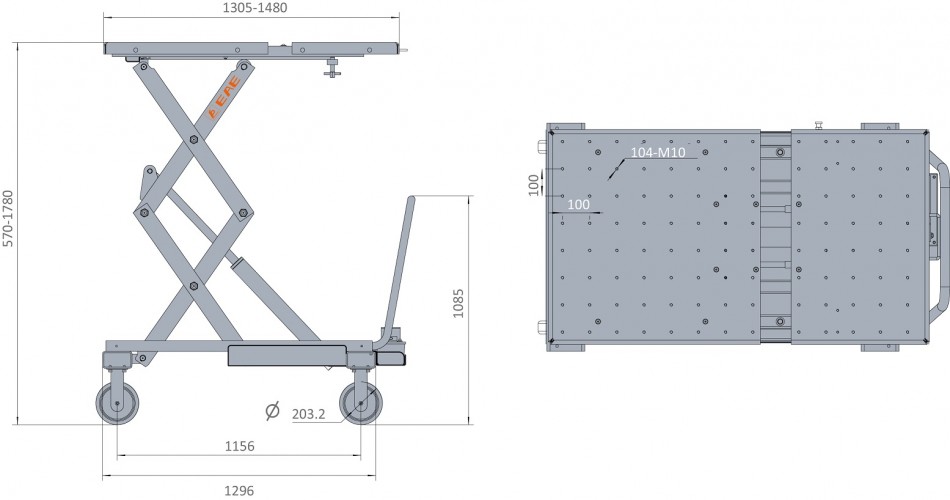

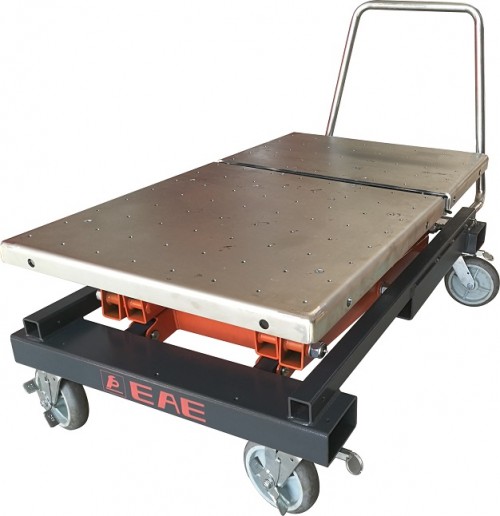

The working table can be extended to 1480mm in length for
more applications.
Reserved holes (100mmx100mm) on the working table for
positioning and fixing components with specialized fixtures.

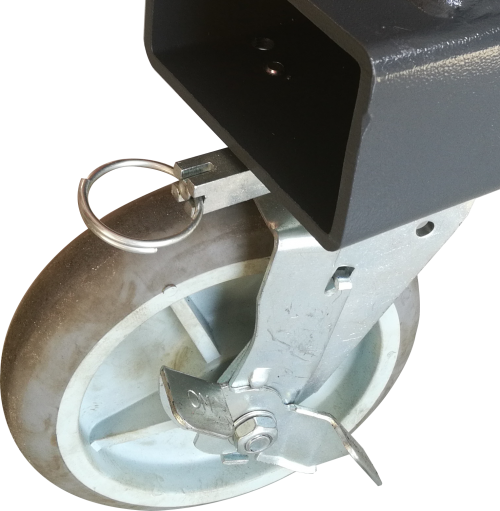

Four heavy‐duty and abrasion‐resisting casters can steer and
move easily and brake effectively.
Optional non‐slip rubber pad to increase friction and avoid
clashing with the battery packs.
Hydraulic cylinder and seal rings with high quality. Overload
dynamic test under 120% of the rated capacity.
Larger base frame ensures better stability and reliability.

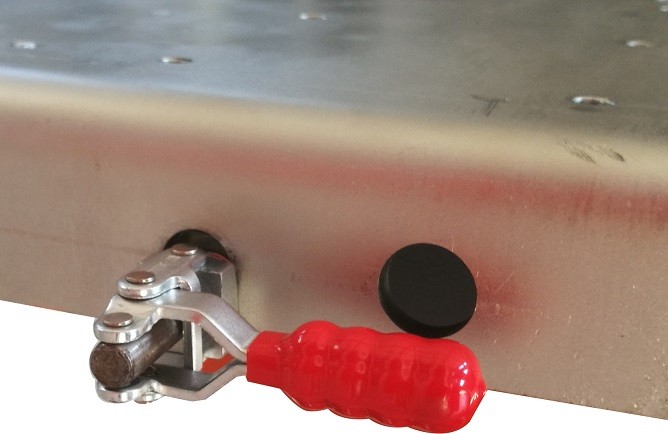

Reserved holes at both sides of the working table for fixing
loads with proper straps.
Power‐coating surface ensure long time use without peeling off.

Parameters
