Vehicle lift safety lock release solenoid

Solenoid for unlocking vehicle lift safety locks is designed to control the safety locks of electro-hydraulic vehicle lifts. The solenoid is activated by a 24 V DC control voltage and, upon receiving an electrical signal from the lift control system, moves the actuator rod, mechanically releasing the safety lock.

The solenoid provides electrical unlocking of the safety locks while the lift is being lowered. After the solenoid is deactivated, the safety lock may return to the locked position according to the design of the particular vehicle lift mechanism.

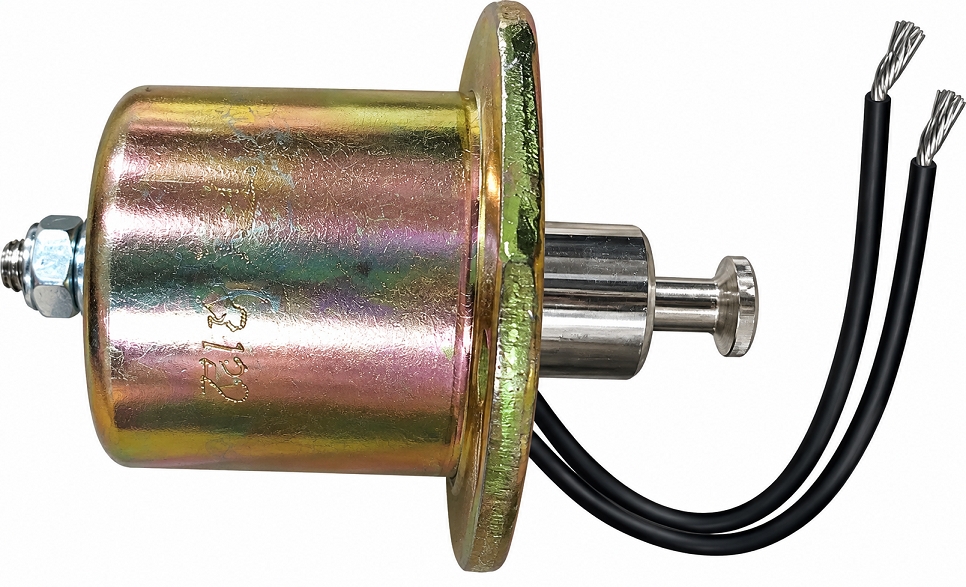

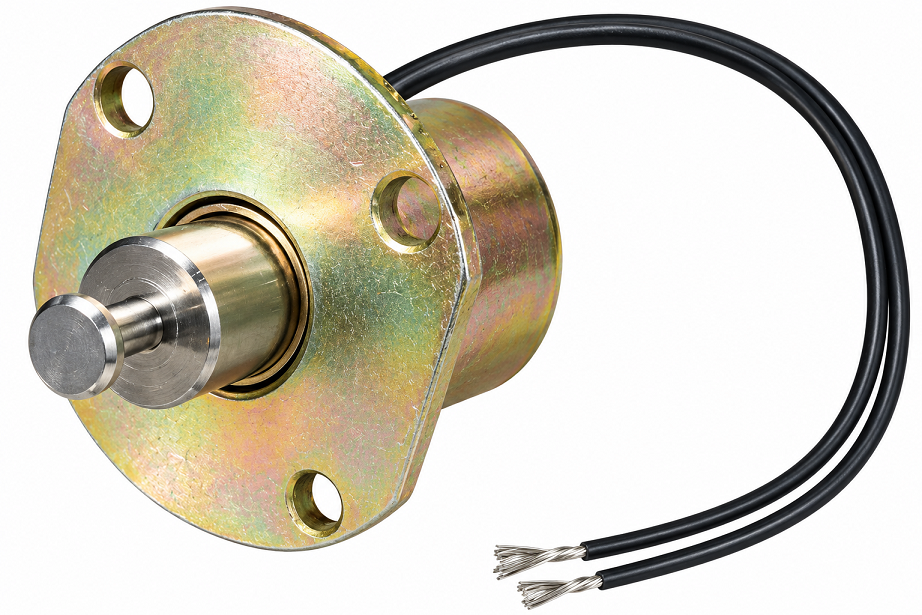

This solenoid has a durable metal housing, a mechanical actuator rod and a 2-wire electrical connection. The part is intended for vehicle lift safety lock control mechanisms and may be suitable as a replacement solenoid for replacing a damaged or worn part.

Control voltage: 24 V DC.

Before ordering, compare the design of the existing solenoid, mounting dimensions, actuator rod configuration and electrical connection.

Technical parameters

• Part type: safety lock unlocking solenoid
• Application: vehicle lifts
• Function: safety lock unlocking
• Control voltage: 24 V DC
• Electrical connection: 2 wires
• Actuator: movable actuator rod
• Housing: metal
• System: electro-hydraulic vehicle lift safety lock control
