Gift ideasWorkshop crane foldable 2t

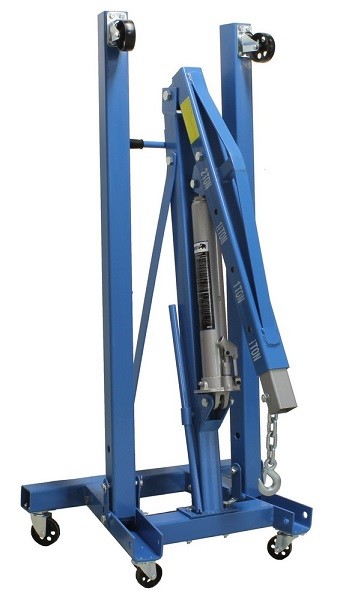

Workshop crane foldable / motor hoist / garage crane
This Mammuth engine crane is extremely suitable for (dis)assembling engine blocks, but is also often used for lifting and moving other heavy objects.
Specifications:
-
capacity position 1 = 2000kg
-
capacity position 2 = 1500kg
-
capacity position 3 = 1000kg
-
capacity position 4 = 500kg
-
height range position 1 = 1990mm
-
height range position 2 = 2140mm
-
height range position 3 = 2310mm
-
height range position 4 = 2470mm
-
total length support arm position 1 = 1015mm
-
total length support arm position 2 = 1195mm
-
total length support arm position 3 = 1375mm
-
total length support arm position 4 = 1555mm
-
height of the legs = 185mm
-
distance between legs at widest point = 960mm
Parameters
| Capacity | 2000 kg |
