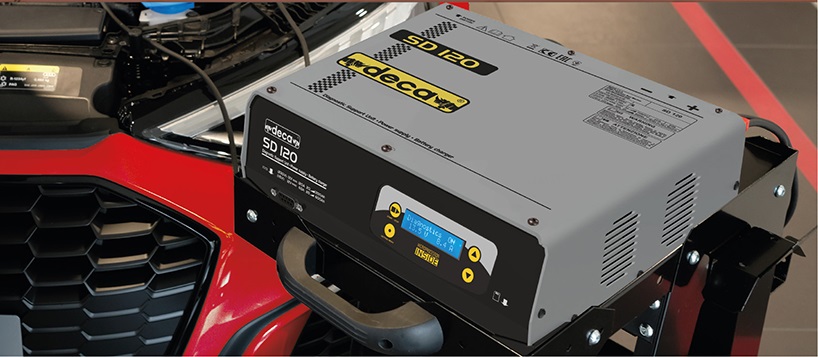

Inverter stabilized battery flash charger and power supply unit DECA SD120
Inverter stabilized power supply unit controlled by microprocessor with up to 120 Amp output on continuous duty. Must have product for everyday professional workshop use.
The perfect choice for:
Battery support:
it sustains automotive batteries during diagnostic and flashing control units with constant charging voltage without any peaks.
Advanced battery charger:
suitable for most modern lead batteries: WET, AGM, AGM Power, GEL, Start&Stop and LFP (LiFePO4), traction batteries. "I-U0" charging characteristic with floating maintenance. Customizable multi step charging program. Battery equalization and desulphation functions.
Showroom mode:
it maintains batteries in showroom vehicles, with "lockup" function to avoid improper use and automatic start up.
Battery change mode:
il maintains an electrical power supply to preserve the vehicle’s memory settings.
Multipurpose power supply:
both voltage and current can be adjusted.
Feature
High efficiency thanks to PFC technology.
Easy to use: you can choose which function to keep close at hand. The menus are multi-language.
Double input voltage with automatic setting.
Automatic fan cooling system. It ensures long service life and best performance of the electronic device.
Length cable calibration: you can connect cables of different length (up to 8m).
Heavy duty cable connectors.
Automatic restart.
SD-Card reader: to update the software adding new charging programs.
Serial port COM1 to connect a printer.
Parameters
Protection degree (IP) | 20 |
Battery capacity | 20 - 2400Ah |
Power supply | 1 Ph - 230V / 115V (automātiski) |
Output voltage | 12 - 15V |
Sizes | 35x35x10cm |
Power | 2100W |
Nominal battery voltage | 12V |
Voltage limitation | 16V |
Weight | 5.2kg |
Charging modes | 5 |
Cable length | 2m |
Average charging current | 2 - 120A |
