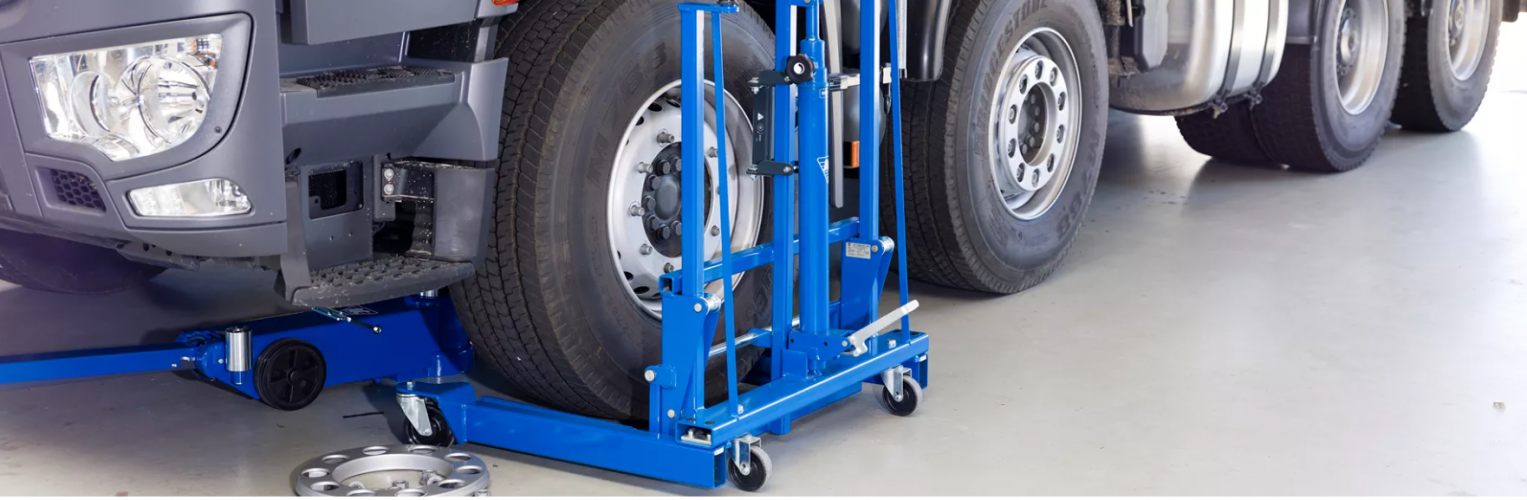

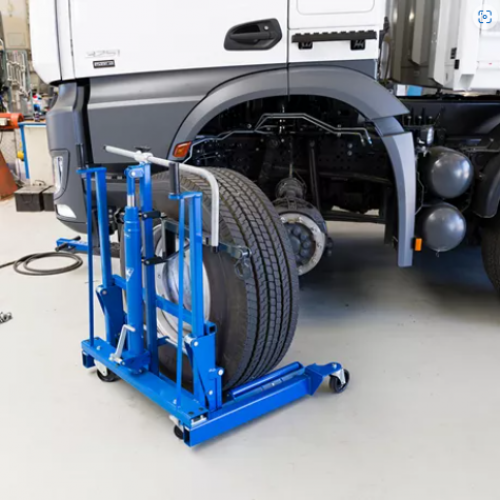

HYDRAULIC WHEEL TROLLEY FOR VANS, TRUCKS AND BUSES
HYDRAULIC WHEEL TROLLEY FOR VANS, TRUCKS AND BUSES
Flexible and ergonomic wheel trolley for the easy removal of wheels and brake drums
Lifting arms with roller bearings for easy rotation of the wheel into correct position
Pedal operated pump leaving both hands free for working
Bracket for easy securing of the wheel whilst transporting
4 pcs of nylon castor wheels for optimum maneuverability
-
WHEEL SIZES
Adjustable lifting arms for wheel sizes Ø 270 – 1300 mm
-
CRANE ARM (ACCESSORY)
Ideal for lifting brake drums, fuel tanks, tool boxes etc.
-
SAFETY
Hand operated dead man’s release for optimum safety whilst lowering

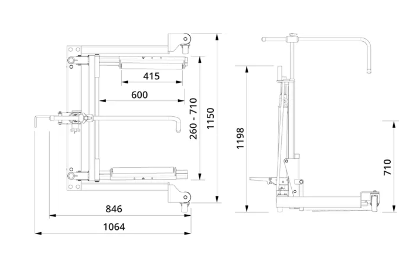

Parameters
Height | 1198 mm |
Brochure | WTA500 |
Capacity | 500 kg |
Length | 846 mm |
Overall width | 1150 mm |
Max.boom length | 600 mm |
Max. lifting height | 710- mm |
Min. height | 164 mm |
Weight | 100 kg |
