Gift ideasTyre-changer for motorcycle, scooter and quad tyres

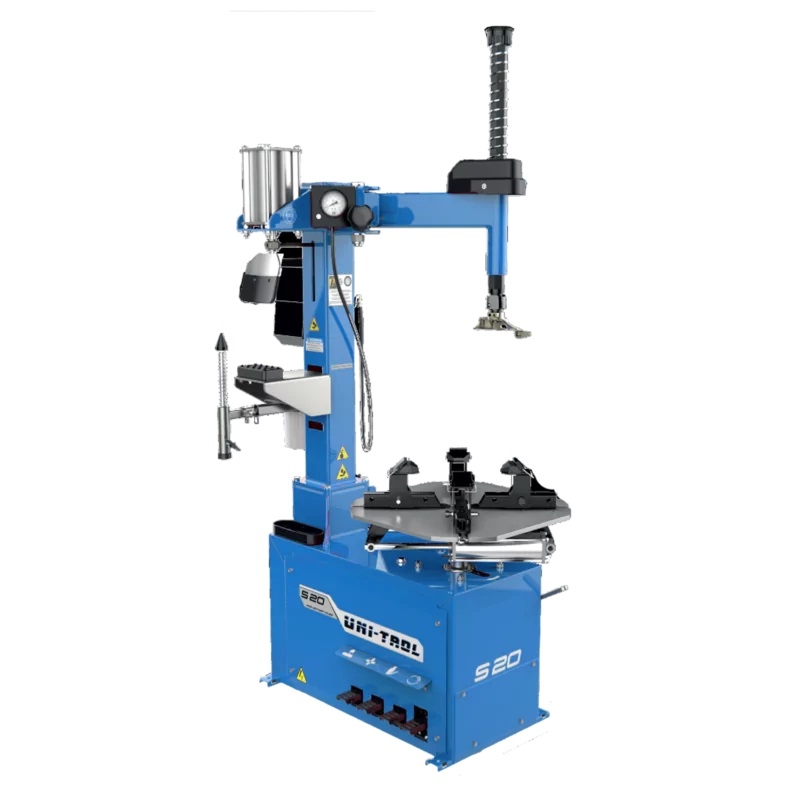

Tyre-changer S20 MOTO for motorcycle, scooter and quad tyres. For rims of clamping range 5″-23 “. The biggest advantage of this model is the vertical bead-breaker that removes the tyre safely without dismantling the brake discs. Thanks to the compact housing and the arm tilted to the side the machine does not require much space in the workshop.

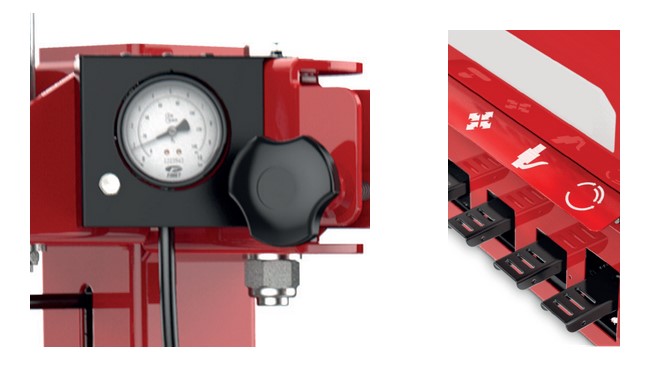

The left side pedals provide much better work comfort.

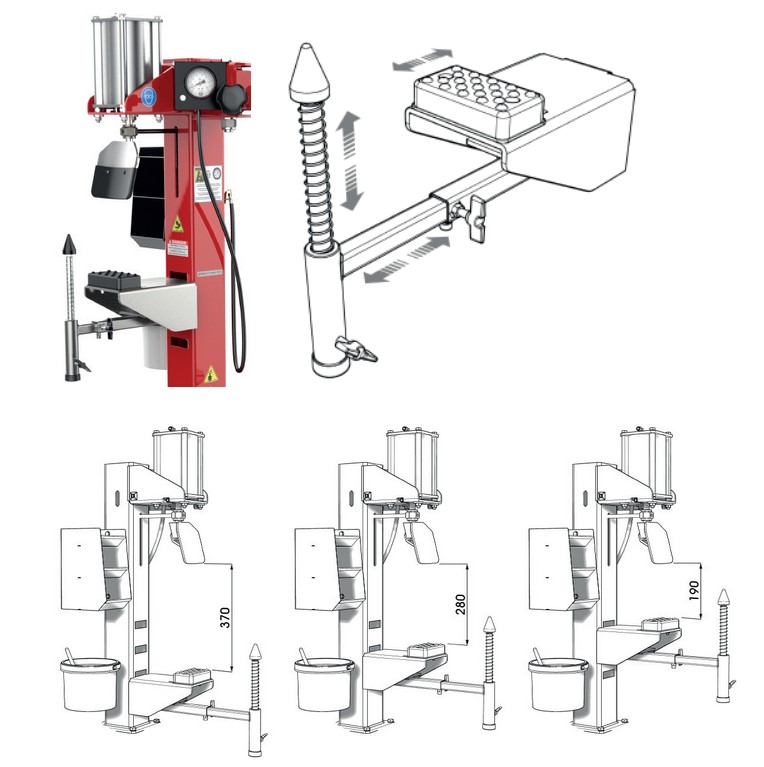

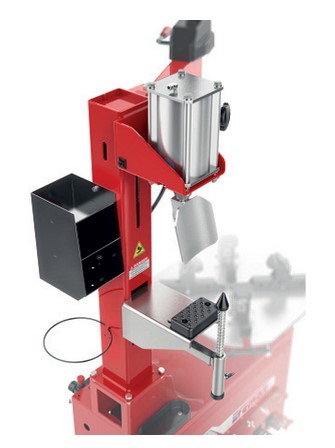

The tyre changer is equipped with a DOUBLE ACTING BEAD BREAKING CYLINDER, that enables the operator to control the activities while operating by standing comfortably. The wheel support can be adjusted in three different positions in order to operate on every rim model and size, such as motorbikes, go-kart, garden equipment, mopeds and quads.

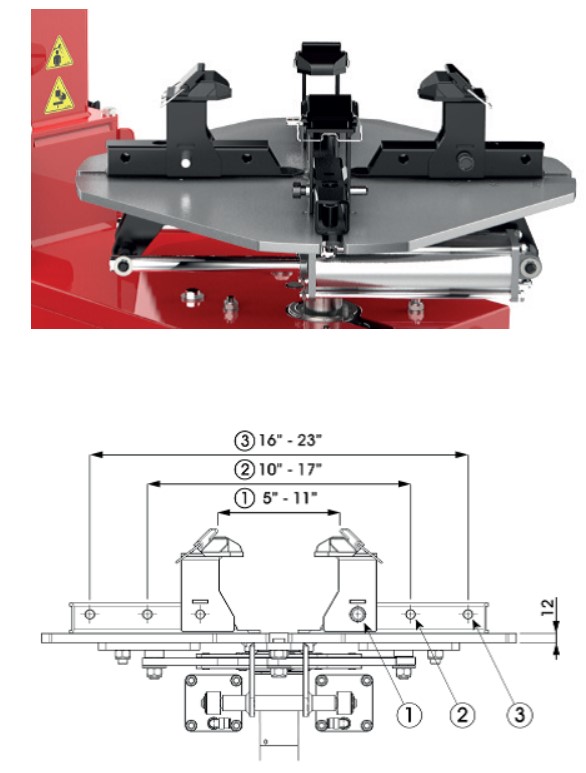

The WHEEL SUPPORT is EXCTRATABLE and can be HORIZZONTALLY ADJUSTED. It enables the operator to operate in safety and keeping the breaking operations under control.
Parameters
| Outer clamping | 5 - 23" |
| Power supply | 3x400V / 50 Hz |
| Air pressure | 8-10 bar |
| Sizes | 110 x 116 x 205 cm |
| Max.wheel diameter | 1020mm |
| Max.wheel width | 14.5" |
| Motor power | 0,75 kW |
| Bead breaker force | 860kg |
| Weight | 208 kg |
