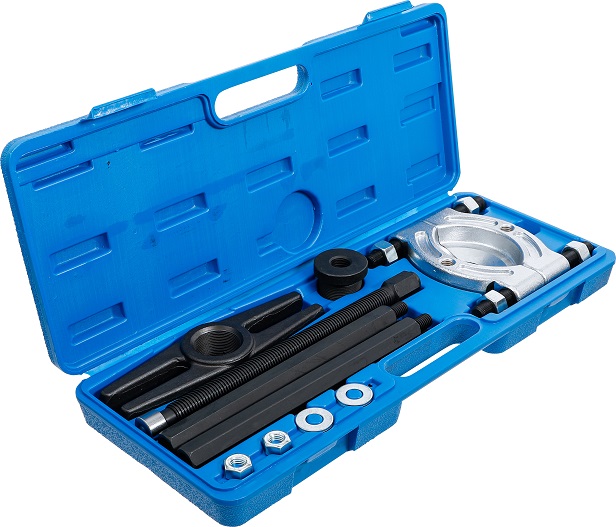

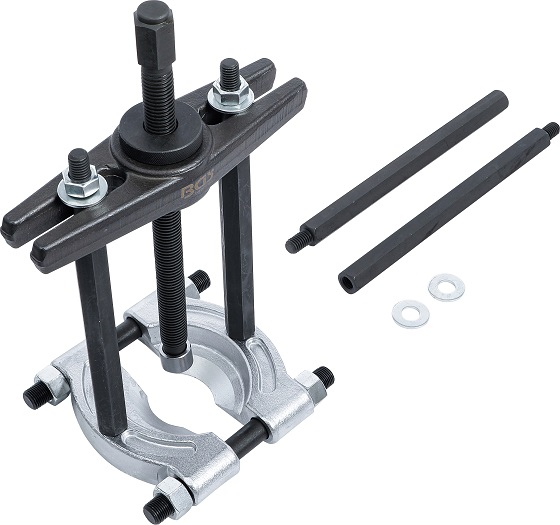

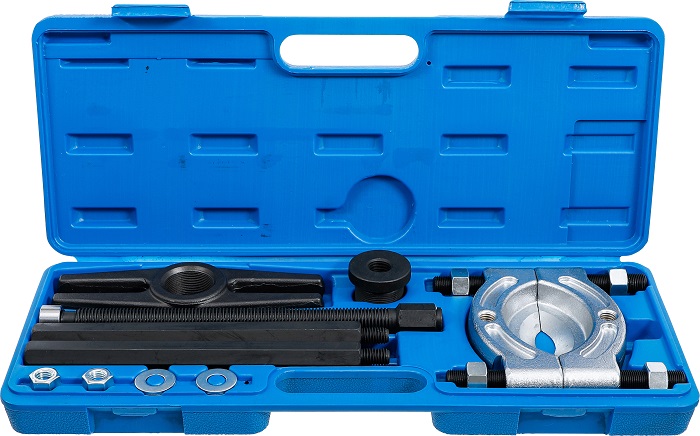

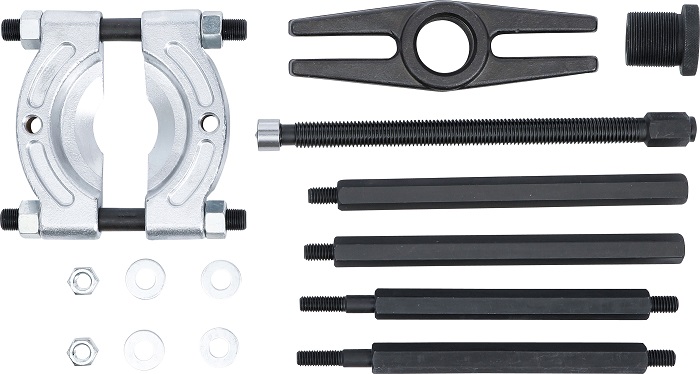

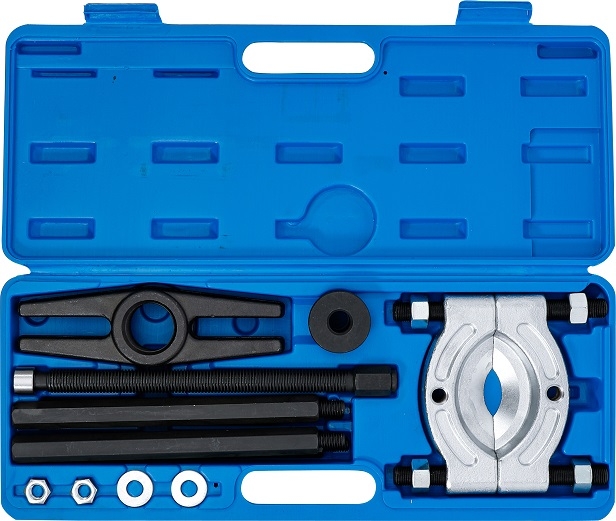

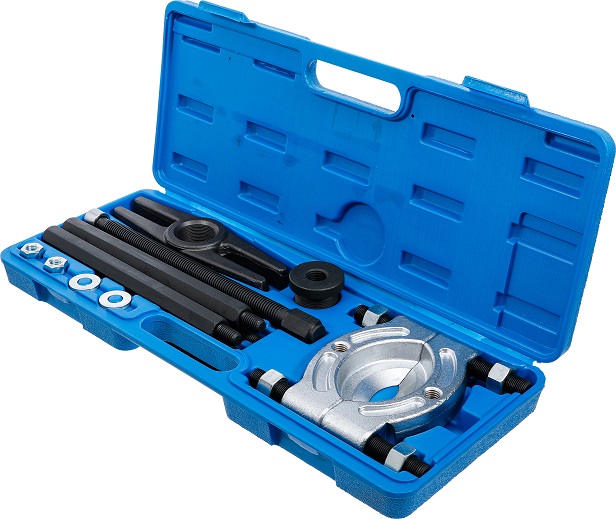

Splitting Knife Set for Ball Bearing Assemblies 6 pcs.

Total length of central bolt is 290 mm
    see BGS 7742 for separate splitting knife

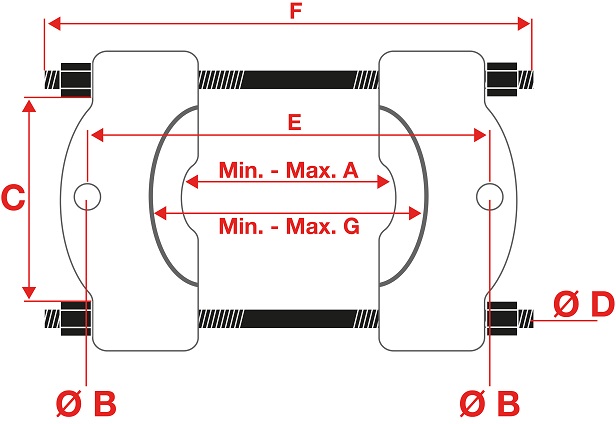

    clamping width (A) min. / max. in mm: min. 13 mm / max. 70 mm
    puller bolt receiving thread (B): 1/2" x 13 UNC
    clamping bolt distance (C) in mm: 113 mm
    camping bolt thread (D): 1/2" x 13 UNC
    puller bolt distance (E) min. / max. in mm: min. 90 mm / max. 147 mm
    clamping bolt length (F): 166 mm
    splitting knife base (G) min. / max. in mm: min. 57 mm / max. 114 mm
