Gift ideasDigital brake disc thickness gauge

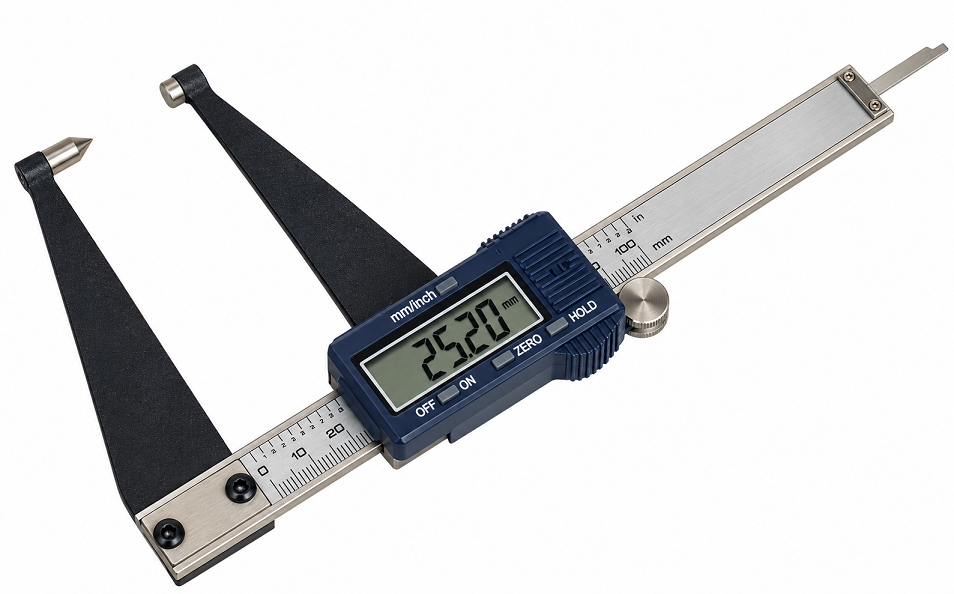

The STC-3665 digital brake disc thickness gauge is designed for accurate measurement of brake disc thickness and wear monitoring in automotive service workshops. It helps determine the actual thickness of a brake disc and compare it with the minimum permissible value specified by the vehicle manufacturer.
The measuring instrument features a stainless steel construction and a large LCD display with 11 mm-high digits, making measurement results easier to read. The HOLD function allows the measurement result to be retained on the display, while the zero-setting function enables comparative measurements. The measurement units can be switched between millimetres and inches.
Main advantages
- Measuring range 0–100 mm;
- measurement accuracy ±0.02 mm;
- resolution 0.01 mm;
- LCD display with 11 mm-high digits;
- HOLD function for retaining the measurement result;
- zero setting for comparative measurements;
- switching between millimetres and inches;
- hardened and tempered stainless steel construction;
- serial port connection for data transmission;
- storage case included.
Application
Designed for checking the thickness of brake discs on passenger cars and other vehicles during maintenance, diagnostics and repairs. Accurate measurements help assess disc wear and determine whether replacement is required in accordance with the manufacturer’s requirements.
Technical parameters
- Model: STC-3665
- Instrument type: digital brake disc thickness gauge
- Measuring range: 0–100 mm (0–4")
- Accuracy: ±0.02 mm (±0.001")
- Resolution: 0.01 mm (0.0005")
- Display: LCD, digit height 11 mm
- Measurement units: mm / inches
- Functions: HOLD, zero setting
- Construction material: hardened and tempered stainless steel
- Data connection: serial port
- Power supply: 1 × LR44, 1.5 V battery
- Weight: approximately 0.49 kg
- Package contents: measuring instrument, battery, storage case
