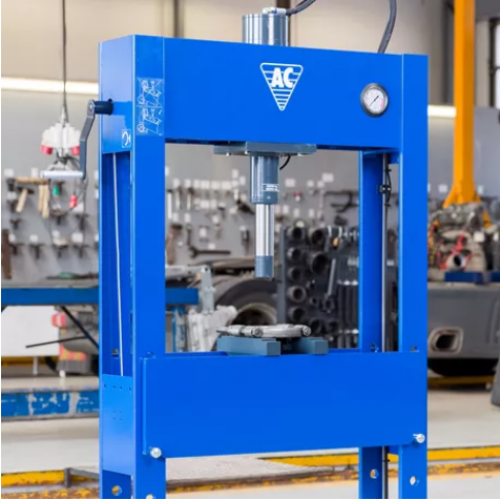

HAND HYDRAULIC PRESS FOR TRUCK WORKSHOPS AND INDUSTRY
HAND HYDRAULIC PRESS FOR TRUCK WORKSHOPS AND INDUSTRY
Foot-operated double-acting pneumatically controlled high speed leaving both hands free for quick and precise positioning of item
Traversing ram
With 300 mm stroke for dealing with demanding jobs
Wide, welded frame and press table ensuring high flexibility
Removable ram end cap for mounting of various piston heads
-
SAFETY
Built-in safety overload valve
-
EASY ADJUSTABLE
Winch operated press table
-
PRECISE PRESSURE
Built-in pressure gauge at convenient eye level
-

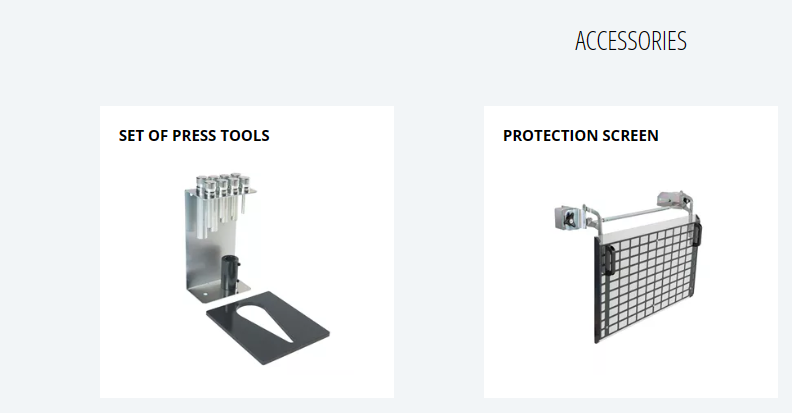

STANDARD ACCESORIES
Supplied with 2 vee blocks

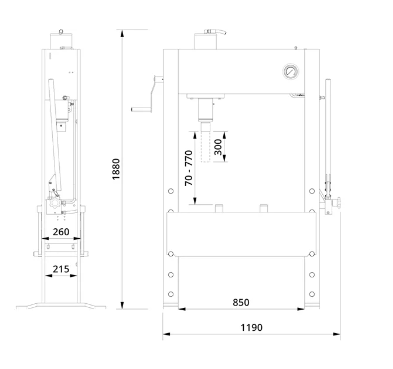

Parameters
Height | 1880 mm |
Brochure | P40H |

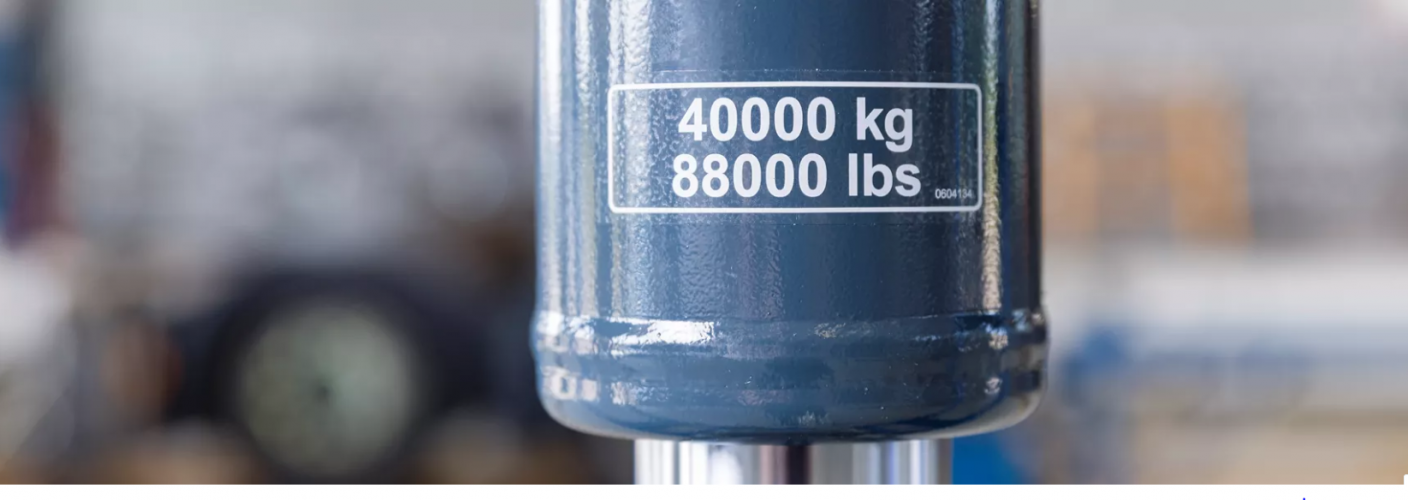

Capacity | 40000 kg |
cylinder movement | 300 mm |
Inner depth | 215 mm |
Inner leg width | 850 mm |
Overall width | 1190 mm |
Press hydraulic cylinder | 70-770 mm |
Weight | 425 kg |
