Gift ideasElectro-hydraulic two post lift with electromagnetic lock release
Lifting capacity: 4500 kg;
Lifting height: 1880 mm;
Minimum lifting height: 90 mm;
Column height: 2920 mm;
Width between columns: 2830 mm;
Overall width: 3420 mm;

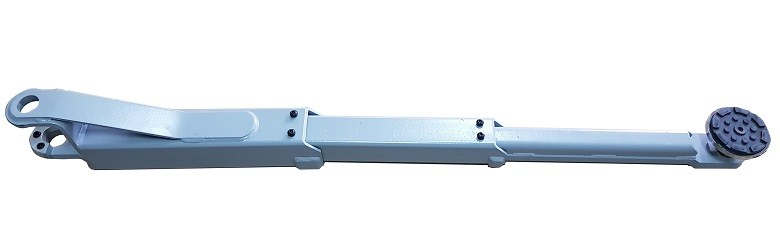

3-stage front lifting arms length: 750-1160-1500mm;
3-stage rear lifting arms length: 750-1160-1500mm;
Motor power: 2,2 kW;
Weight of lift: 560 kg;
Lifting time: 50s;
Electrical lock release;
Double seal ring protection for cylinder;

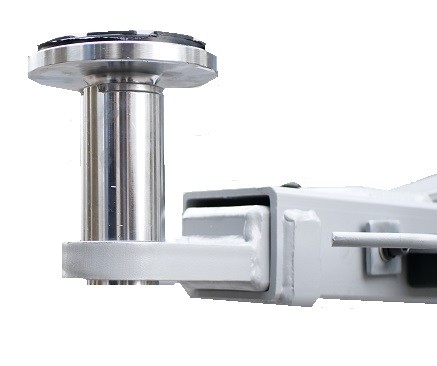

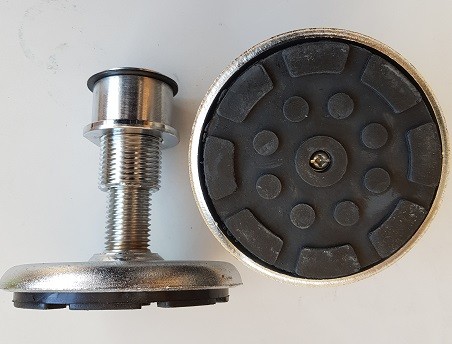

3rd generation screw pads;
Lifting pad extensions 100mm set;
Height limit switch
Anchor bolts 10pcs M18x200mm, door protection, tool tray, foot protection, curtains, top column cap
Parameters
| Arm length | 750-1160-1500 mm |
| Distance between the studs | 2830 mm |
| Capacity | 4500 kg |
| Total height | 2920 mm |
| Overall width | 3420 mm |
| Min. height | 90 mm |
| Motor power | 2,2 kW |
| Lifting height | 1880 mm |
| Lifting time | 50 s |
| Weight | 622 kg |
