AUTOMATIC AIR HYDRAULIC JACKING BEAM FOR WORKSHOPS WITH MANY LIFTING OPERATIONS
AUTOMATIC AIR HYDRAULIC JACKING BEAM FOR WORKSHOPS WITH MANY LIFTING OPERATIONS
Individual joysticks control of lifting arms to avoid time consuming working operations
Remote control activates lowering and retraction of lifting arms to closed position
Placing the remote control next to the lift control panel ensures safe operation and prevents unnecessary steps
-
FITS ALL LIFTS AND PITS
Unique height adjustable mounting bracket system – designed to fit all current lifts and pits
-
MATCH YOUR LIFT OR PIT
The mounting brackets are not a part of the product and must be ordered separately. Please always state lift type to get the correct support arms.
-

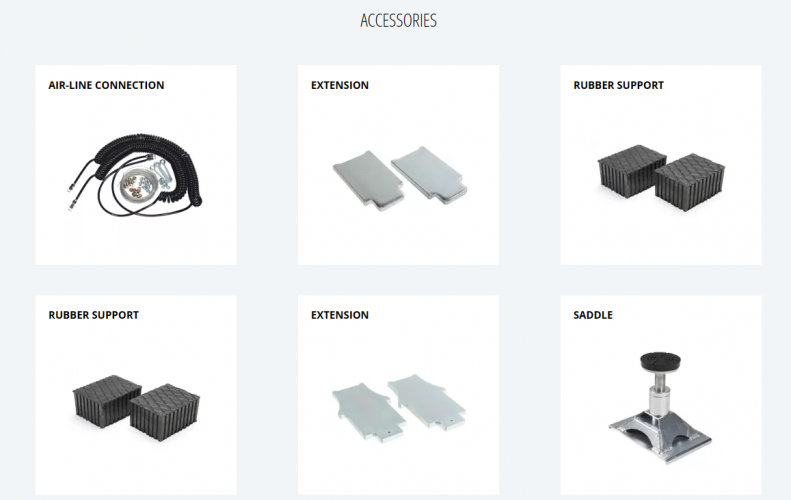

STANDARD ACCESSORIES
Supplied with 3 extension sets (10/40/85 mm) and rubber cushion for protection of car body

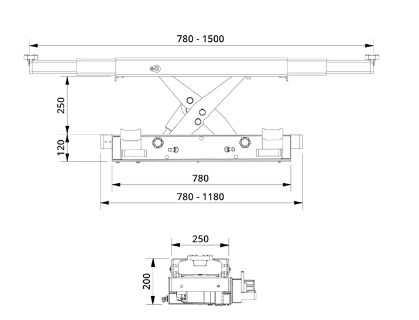

Parameters
| Outer leg width | 780-1180 mm |
| Upper height | 250 mm |
| Brochure | SD26PHL-A |
| Capacity | 2600 kg |
| Air consumption | 400-700 L/min |
| Air pressure | 8-10 bar |
| Min. height | 200 mm |
| Scissor jack lifting height | 250 mm |
| Post height | 120 mm |
| Weight | 120 kg |
