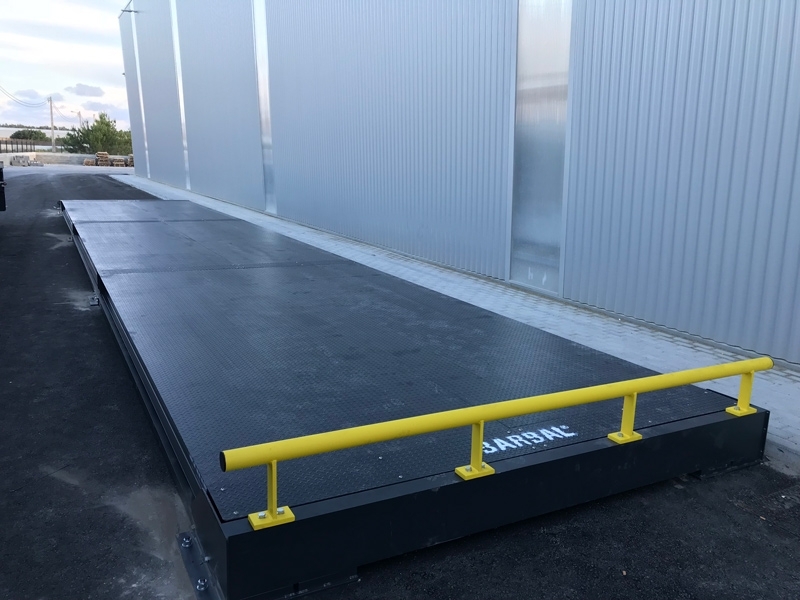

Truck Scale WTS/M

Entirely metallic bascule bridge, easily detachable, to facilitate all the operations of transport and assembly.
Extremely reduced height, can be fitted, elevated or easily adapted to existing foundations.

Dimensions from 6x3m up to 21x3m

Modular panels made of IPE/IPN steel beams

Rolling surface composed of steel chequer plate with high thickness 6/8mm

Easy access to load cells and junction box through removable access hatches on the surface platform

Stainless steel compression load cells, self-centring rotation column IP68/IP69K digital rodent proof model TC-DC 4000d OIML R60

As an option, analogue load cells model TC-A 4000d OIML R60 stainless steel IP68/IP69K with IP68 junction box and rodent proof cable.

Finishing in industrial epoxy paint colour RAL 7021 after pickling by steel shot process or hot dip galvanisation (optional)
Suitable for an intensive usage.
