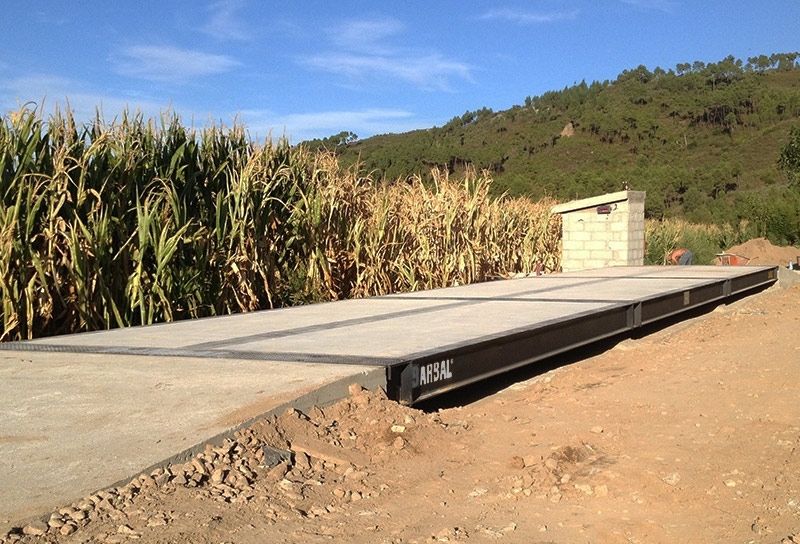

Truck Scale WTS/CC

STEEL/CONCRETE WEIGHBRIDGE

CONCRETE POURED IN FACTORY

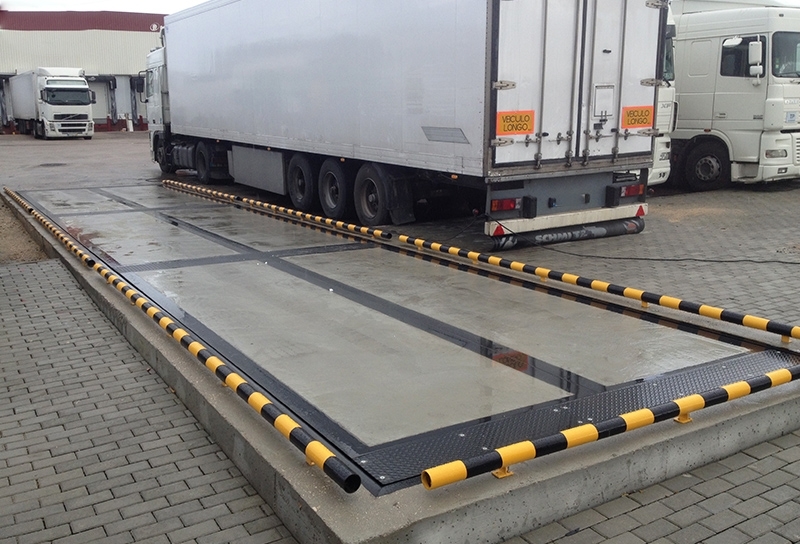

Above Ground or Pit Mounted

Dimensions from 6x3m up to 21x3m

Modular panels composed of IPE/IPN steel beams, electro welded mesh, metal formwork and concrete with a resistance class C30/37 (concrete poured in factory)

Easy access to load cells and junction box through removable access hatches on the surface platform

Stainless steel compression load cells, self-centring rotation column IP68/IP69K digital rodent proof model TC-DC 4000d OIML R60
As an option, analogue load cells model TC-A 4000d OIML R60 stainless steel IP68/IP69K with IP68 junction box and rodent proof cable.

Finishing in industrial epoxy paint colour RAL 7021 after pickling by steel shot process or hot dip galvanisation (optional)
