Truck Scale PCM

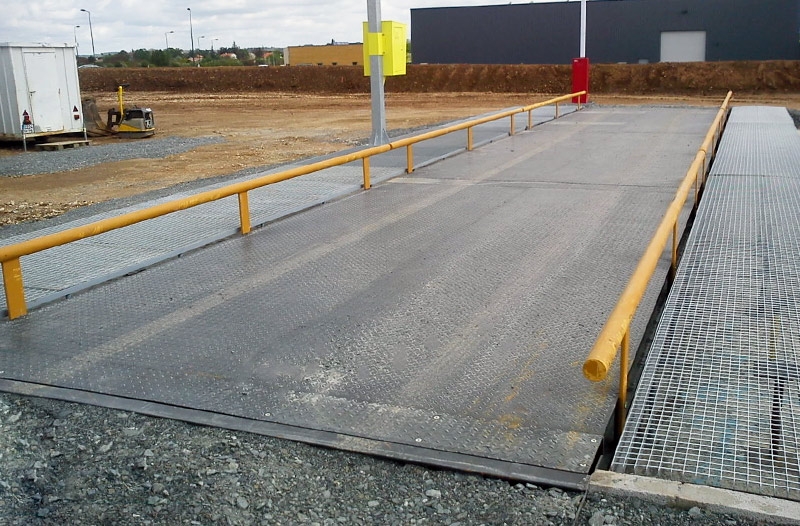

METALLIC WEIGHBRIDGE

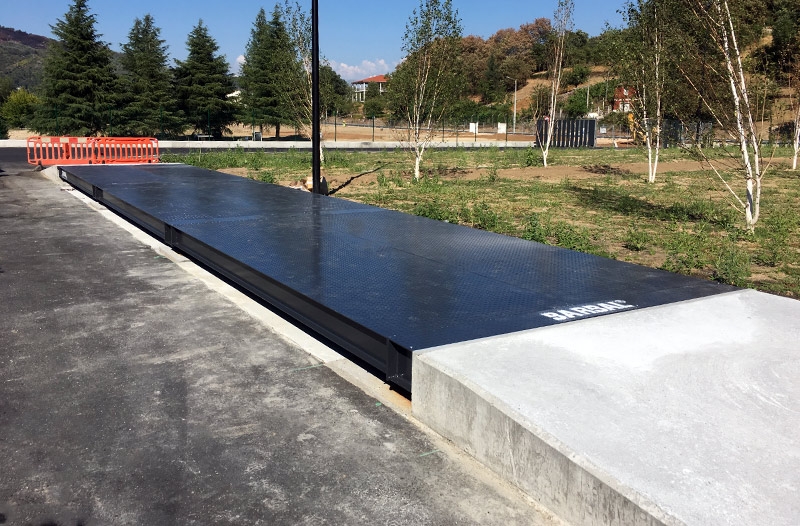

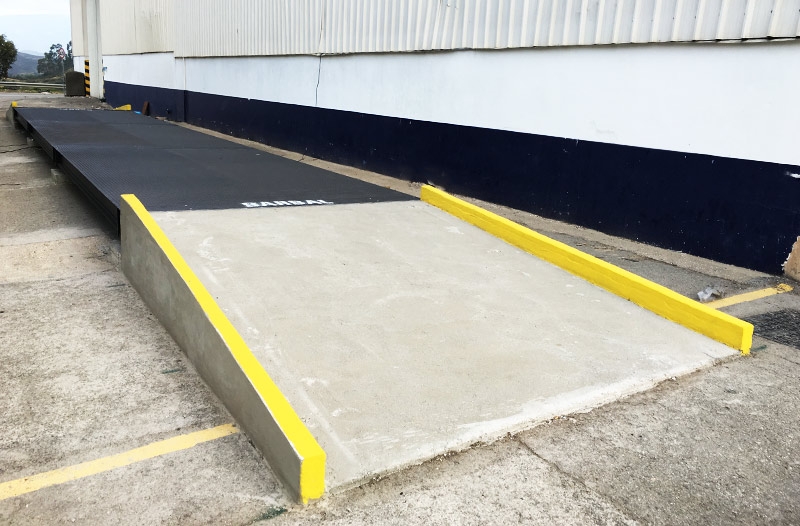

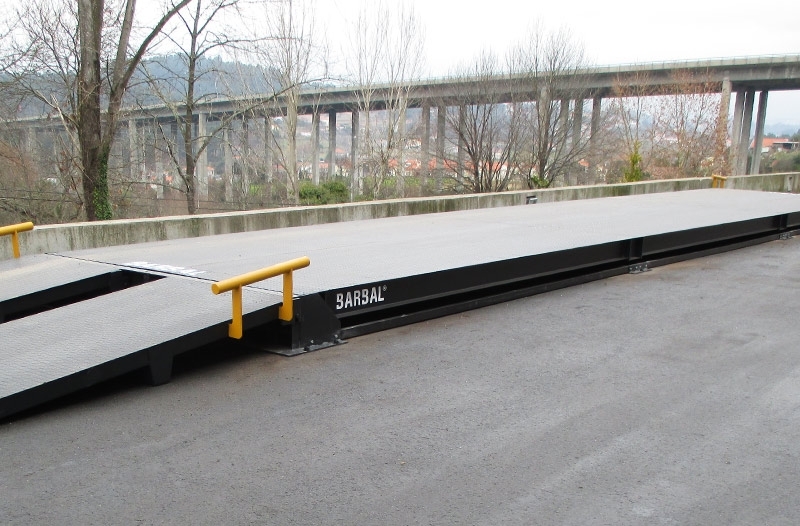

ABOVE GROUND OR PIT MOUNTED

Dimensions from 9x3m up to 30x3m

Max. capacity/scale interval: from 10t/5kg up to 150t/50kg

Modular panels composed of IPE steel beams

Rolling surface made of steel chequer plate whit high thickness

Height of the rolling surface: 370mm

Easy access to load cells and junction box through removable access hatches on the surface platform

Stainless steel compression load cells, self-centring rotation column IP68/IP69K digital rodent proof model TC-DC 4000d OIML R60

As an option, analogue load cells model TC-A 4000d OIML R60 stainless steel IP68/IP69K with IP68 junction box and rodent proof cable.

Finishing in industrial epoxy paint colour RAL 7021 after pickling by steel shot process or hot dip galvanisation (optional)
