AIR HYDRAULIC JACKING BEAM FOR PASSENGER CARS, VANS AND TRUCKS
Strong and robust design makes it ideal for lifting heavy vehicles
Low minimum height of 230 mm
Flexible top support beam can be extended up to 1500 mm
Two-hand lowering operation with dead man’s release, automatic safety locking device and overload valve for optimum safety
-
FITS ALL LIFTS AND PITS
Unique height adjustable mounting bracket system – designed to fit all current lifts and pits
-
MATCH YOUR LIFT OR PIT
The mounting brackets are not a part of the product and must be ordered separately. Please always state lift type to get the correct support arms.
-

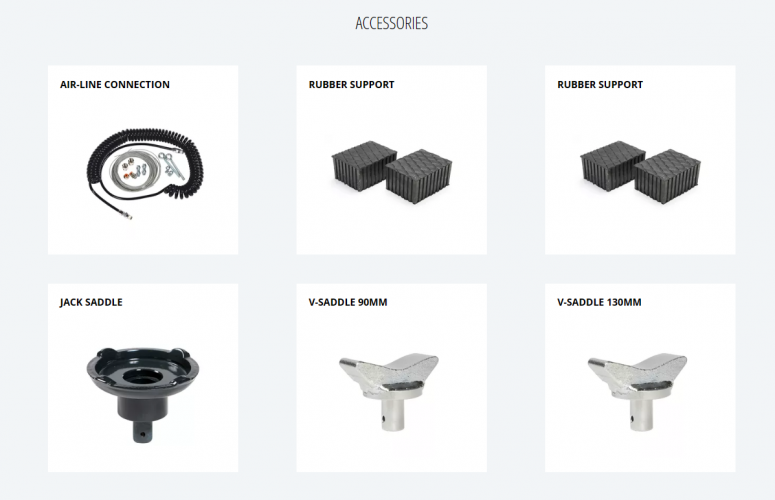

STANDARD ACCESSORIES
Supplied with 2 extension sets (50/100 mm)
Параметры

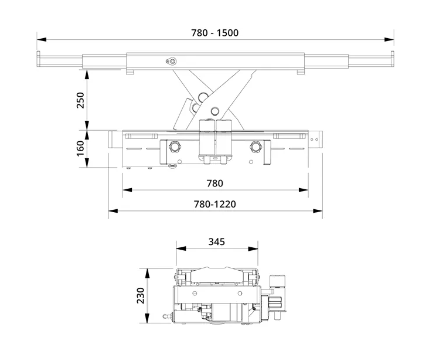

| Наружная ширина ног | 780-1220 mm |
| Верхняя ширина | 345 mm |
| Брошюра | SD40PHL |
| Грузоподъемность | 4000 kg |
| расход воздуха | 400-700 L/min |
| Давление воздуха | 8-10 bar |
| Мин. высота | 230 mm |
| Высота подъема осевого домкрата | 250 mm |
| Высота стойки | 160 mm |
| Bес | 175 kg |
