Kravas automašīnu svari WTS/C

STEEL/CONCRETE WEIGHBRIDGE

CONCRETE POURED IN INSTALLATION SITE

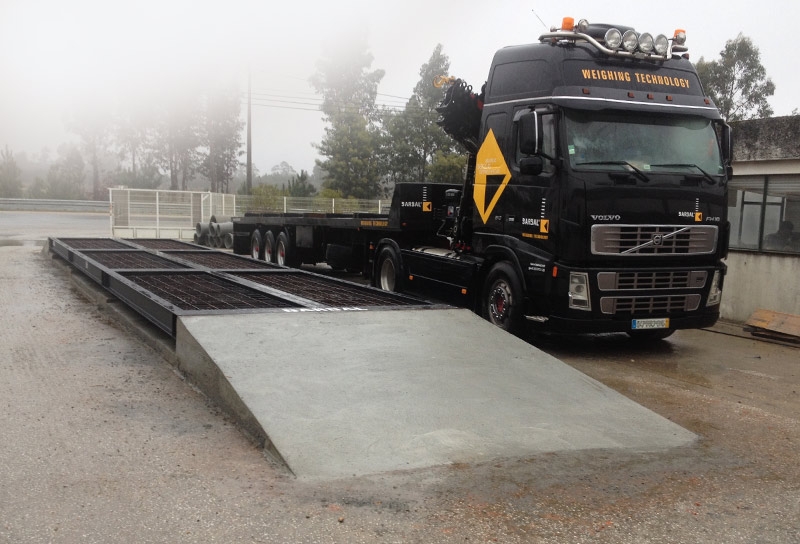

Above Ground or Pit Mounted

Dimensions from 6x3m up to 21x3m

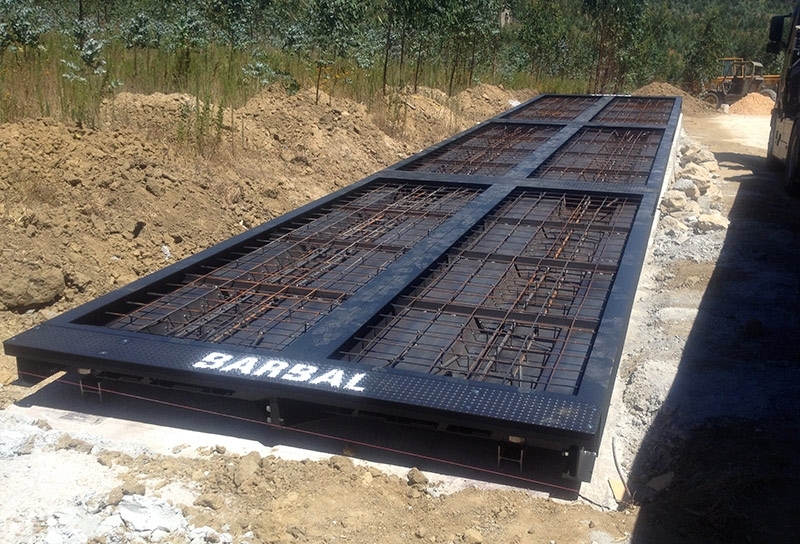

Modular panels composed of IPE/IPN steel beams, electro welded mesh, metal formwork and concrete with a resistance class C30/37 (concrete to be poured in installation site)
The client only needs to pour the concrete

Easy access to load cells and junction box through removable access hatches on the surface platform

Stainless steel compression load cells, self-centring rotation column IP68/IP69K digital rodent proof model TC-DC 4000d OIML R60
As an option, analogue load cells model TC-A 4000d OIML R60 stainless steel IP68/IP69K with IP68 junction box and rodent proof cable.

Finishing in industrial epoxy paint colour RAL 7021 after pickling by steel shot process or hot dip galvanisation (optional)
