Kravas automašīnu svari PPAL/PPA

AXLE-WEIGHING SCALE

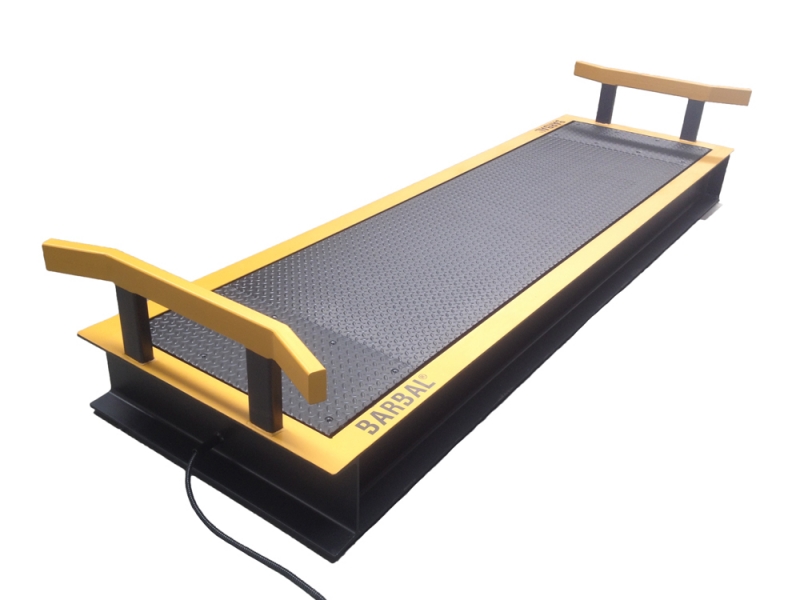

WITH PORTABLE STEEL MOUNTING STRUCTURE

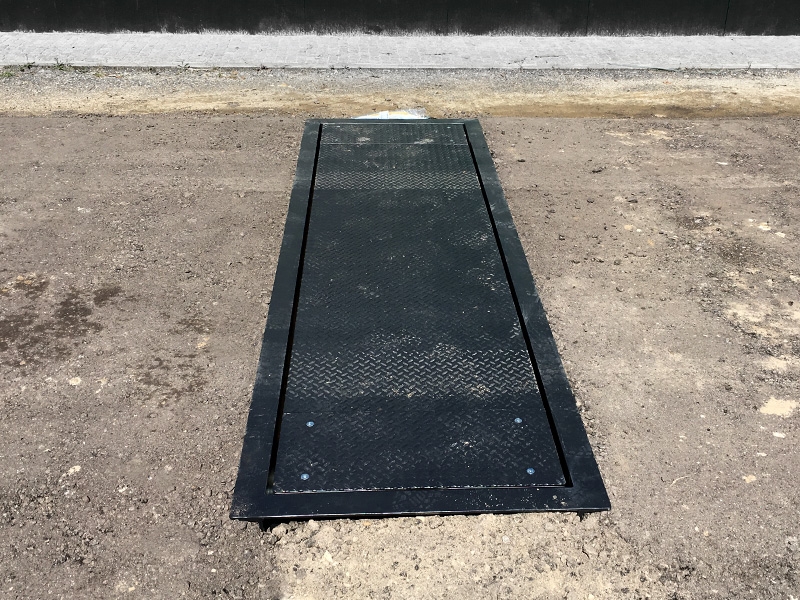

Pit Mounted

Dimensions (LxW): 0,70x2,80m or 0,75x3,00m

Max. capacity/scale interval: 20t/10kg or 30t/10kg

Monobloc deck composed of IPE steel beams

Rolling deck surface made of high thickness chequer plate (height of the rolling surface :285mm)
Equipped with a portable steel structure for easy and quick installation, with no need for civil works (optional)

Easy access to load cells and junction box through removable access hatches on the surface platform

Stainless steel IP68 compression cells

Finishing: painted steel or hot-dip galvanisation (optional)

Suitable for an intensive usage
